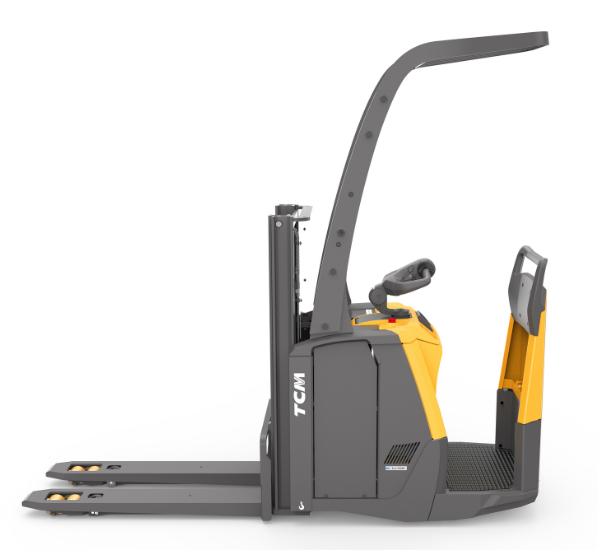

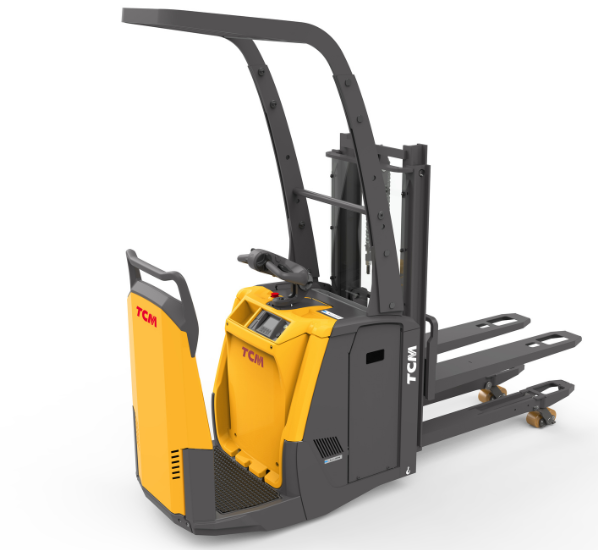

TCM SRD20R-N3 Ride-On Double Pallet Stacker Truck (2 x 1.000 kg) (2.000 kg)

• Keunggulan TCM SRD20R-N3 #1: SRD Ride-On Double Stacker Load Capacity 2,000kg Load Centre 600mm Truck Length 972mm-1,362mm Travel Speed with and without load 10km/h Turning Radius 1,902mm - 2,292mm Truck Width 740mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load SRD20-N3 2000 600 24 972/1330 740 1902/2260 10.0/10.0 SRD20R-N3 2000 600 24 1362 740 2292 10.0/10.0 SRD20S-N3 2000 600 24 1362 740 2292 10.0/10.0 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. Ride-on Double Stacker The SRD offers enhanced ergonomic features and a foldable or driver-protected platform. As a result, the double stacker truck range is perfectly suited to highly efficient loading and unloading operations, internal transport or cross-docking applications. Within fast-paced warehouse operations, clever speed handling is a must.
• Keunggulan TCM SRD20R-N3 #2: The stacker truck incorporates a 4-point concept (or system) truck chassis, featuring twin load wheels in each straddle leg (wheel arm). The drive unit/wheel is positioned off-centre to one corner, while a fixed castor wheel is situated in the opposite corner of the machine house/chassis. This design choice ensures exceptional durability, reliability, and a track record of success. It offers the ideal combination of stability and traction needed for demanding high-speed stacking tasks.
• Keunggulan TCM SRD20R-N3 #3: Optimal productivity. Efficiency in material handling operations relies heavily on speed, as it enables operators to maintain optimal productivity while upholding safety standards. With the SRD range, you benefit from a rocker switch located on the ergonomic tiller head, empowering you to control speed effortlessly. Additionally, the SRD range incorporates a regulated lift motor and a proportional valve, synergistically combining these elements to deliver seamless, secure, and accurate lifting, lowering, and handling operations.
• Keunggulan TCM SRD20R-N3 #4: Maximising truck stability. At TCM, safety is key. We understand the importance of maximising productivity and reducing TCO, but it’s not possible to achieve these two material handling musts whilst compromising the safety of your operators or your goods. That’s why we’ve fitted these stacker trucks with rear stability caster wheels that are equipped with integrated shock absorption and variable damping that will automatically adjust depending on driving conditions, maximising truck stability.

Unit TCM SRD20R-N3 Ride-On Double Pallet Stacker Truck (2 x 1.000 kg) (2.000 kg) pada kategori TCM Stacker Trucks sangat ideal untuk mendukung operasional Gudang Rak Bertingkat, Double-Deep Racking, Manufaktur, Farmasi, E-Commerce & Logistik Presisi di berbagai kawasan industri, pergudangan, dan pusat logistik di seluruh Indonesia.
