Electric 24V (Li-Ion / Lead-Acid)
TCM SPR16W-N3
TCM Stacker Trucks • Toyo Carriers Manufacturing Co., Ltd.
Kapasitas Utama
1.600 kg (1.6 Ton)
Titik Beban / Tinggi Angkat
600 mm / 3.300 – 5.400 mm
Tipe Daya / Penggerak
Electric 24V (Li-Ion / Lead-Acid)
Pabrikan Resmi
Toyo Carriers Mfg. (TCM)

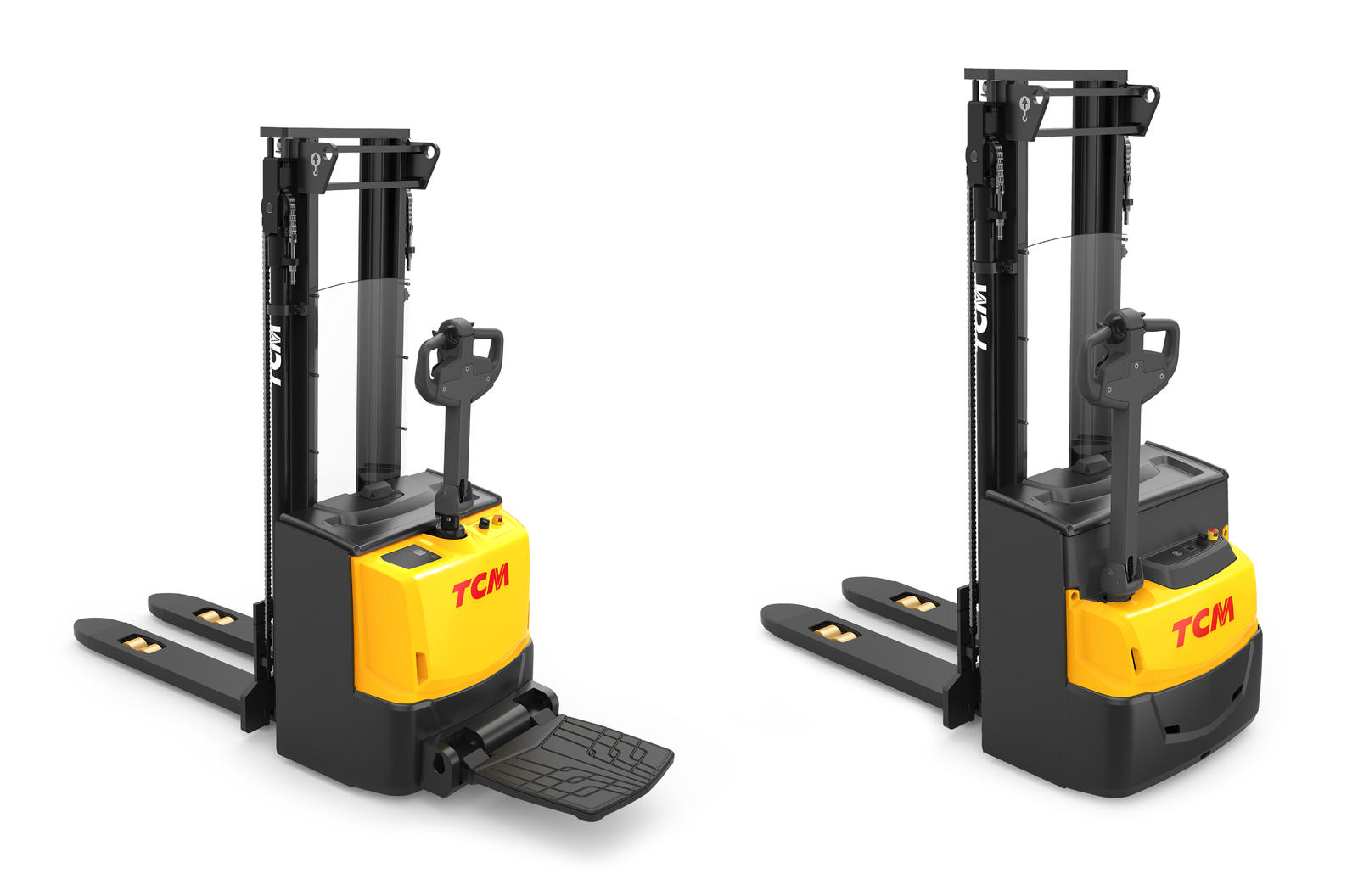

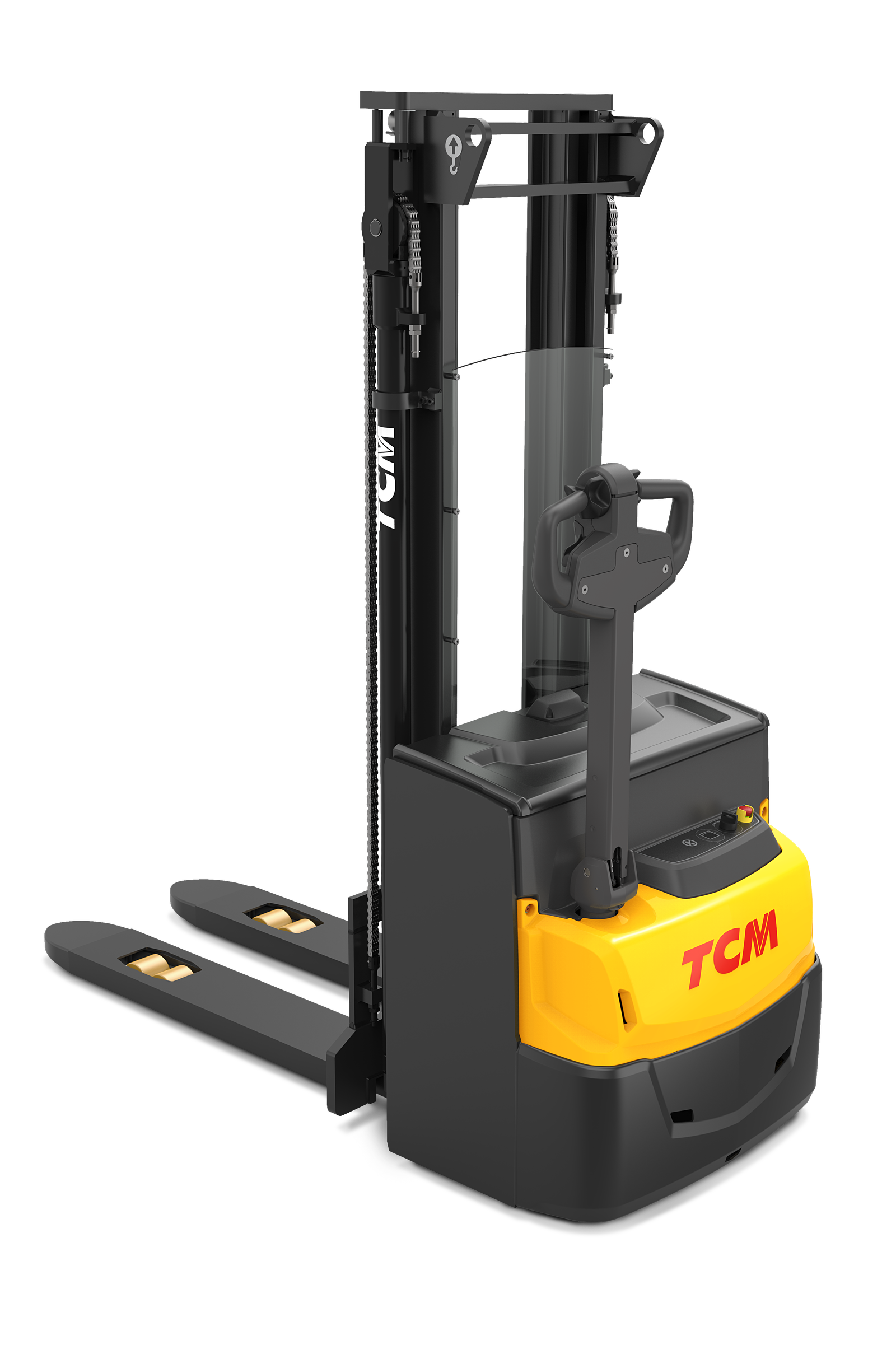

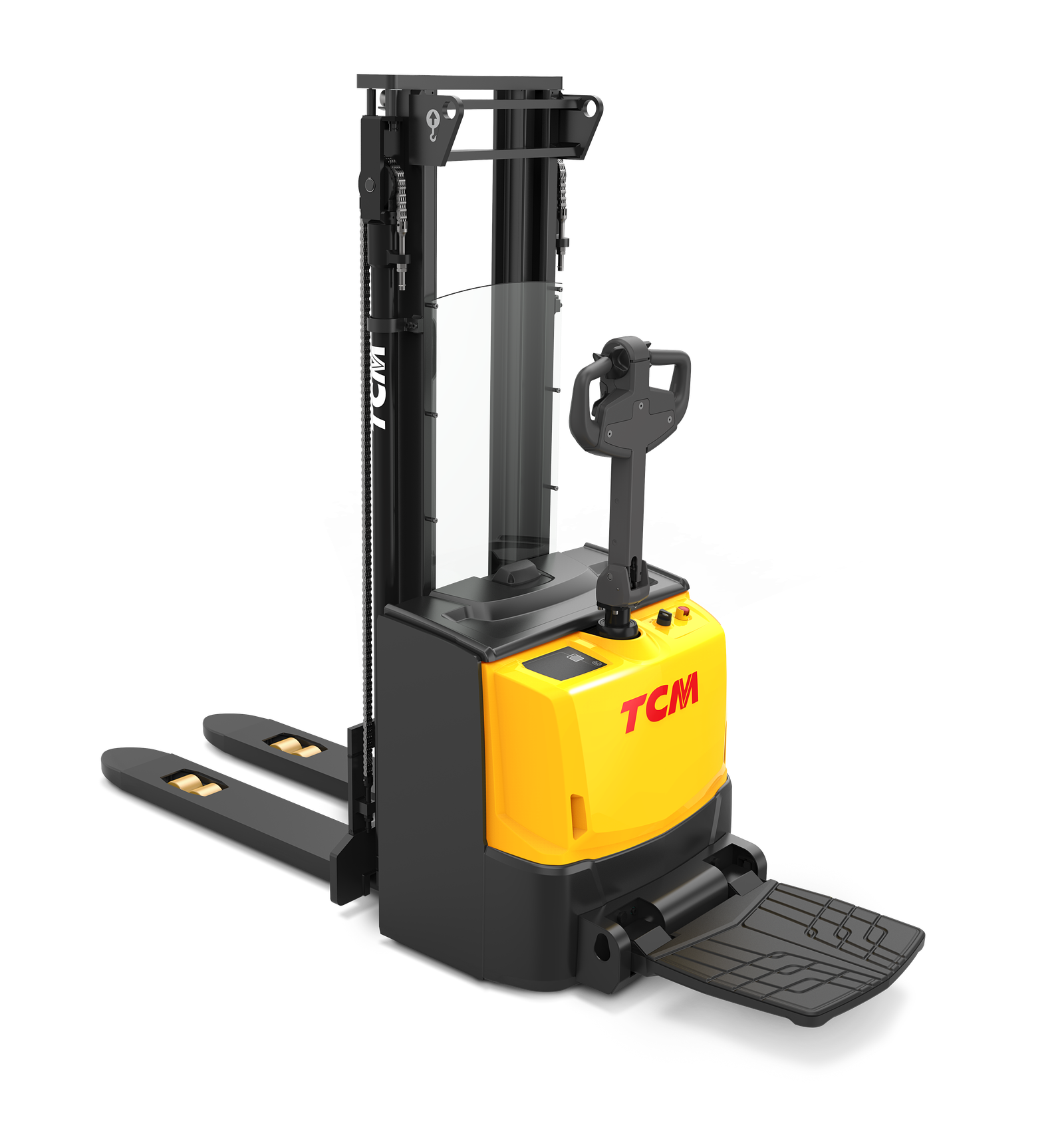

Unit TCM SPR16W-N3 Pedestrian Pallet Stacker with Foldable Platform (1.600 kg) merupakan model andalan pada kategori TCM Stacker Trucks dari TCM (Toyo Carriers Manufacturing Co., Ltd.) yang dirancang untuk memberikan performa angkat optimal (1.600 kg (1.6 Ton)), stabilitas kerja tinggi, serta efisiensi operasional terbaik. Didukung penuh oleh garansi resmi, ketersediaan suku cadang asli di Central Workshop Cakung, serta layanan teknisi mekanik keliling dari PT. Cemerlang Perkasa Teknologi di seluruh 38 provinsi Indonesia.
Unit Baru 100% Original TCM & Siap Operasional
Kualitas Global Toyo Carriers Manufacturing Co., Ltd.
10.000+ SKU Suku Cadang Asli Cakung & Teknisi 24/7
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit TCM SPR16W-N3
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit TCM SPR16W-N3
Karakteristik Rancang Bangun & Keunggulan Konstruksi TCM (TCM SPR16W-N3):

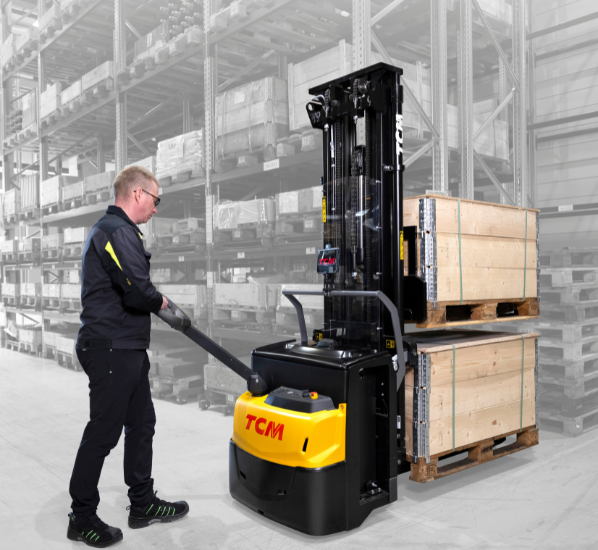

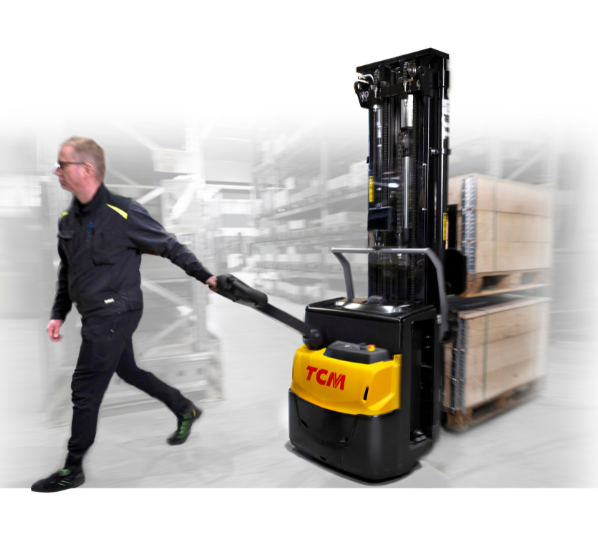

stackers SPW / SPR Pedestrian Pallet Stacker Li-ION 24v Voltage 1.6t Max Cap Optimised for operator comfort . The SPW and SPR are two compact pedestrian stackers brand new to TCM. This new generation of pedestrian pallet stackers comes in different sizes and has a range of different features and benefits. They boast the shortest chassis on the market and provide low-cost, efficient solutions for multiple stacking and order-picking applications. The new stackers are ideal for the narrow aisles of a warehouse – manoeuvering seamlessly through very tight spaces – and their initial lift ability offers higher intensity double stacking.With world-class ergonomics and robust construction, the SPW and SPR pedestrian pallet stackers work to reduce environmental impact and maximise uptime, ultimately minimising your Total Cost of Ownership (TCO). Read our article for full information of the features and benefits. Truck Length 685mm-1,415mm Travel Speed with and without load 6km/h Turning Radius 1,458mm - 2,452mm Truck Width 800mm - 2237mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load SPW10-N3 1000 600 24 685 800 1458 6.0/6.0 SPW12-N3 1200 600 24 750 800 1572 6.0/6.0 SPW14-N3 1400 600 24 750 800 1572 6.0/6.0 SPW16-N3 1600 600 24 750 800 1572 6.0/6.0 SPW12I-N3 1200 600 24 885 800 1848 6.0/6.0 SPW14I-N3 1400 600 24 855 800 1848 6.0/6.0 SPW16I-N3 1600 600 24 855 800 1848 6.0/6.0 SPW16S-N3 1600 600 24 815 1140 - 1575 1647 6.0/6.0 SPR10-N3 1000 600 24 805/1285 800 1578 - 2058 6.0/6.0 SPR12-N3 1200 600 24 870/1350 800 1692 - 2172 6.0 / 6.0 SPR14-N3 1400 600 24 870/1350 800 1692/2172 6.0/6.0 SPR16-N3 1600 600 24 870/1350 800 1684/2170 6.0/6.0 SPR12I-N3 1200 600 24 975/1455 800 1972/2452 6.0/6.0 SPR14I-N3 1400 600 24 975/1455 800 1972/2452 6.0/6.0 SPR16I-N3 1600 600 24 975/1455 800 1972/2452 6.0/6.0 SPR16W-N3 1600 600 24 935/1415 1140/1575 1757/2237 6.0/6.0 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. Pedestrian Pallet Stacker Trucks SPW and SPR features As these stackers are designed for the narrow aisles of a warehouse, they will manoeuvre effortlessly through very tight spaces, and their initial lift capability provides higher-intensity double stacking capabilities. Diproduksi sesuai standar global TCM (Toyo Carriers Manufacturing Co., Ltd.), unit TCM SPR16W-N3 Pedestrian Pallet Stacker with Foldable Platform (1.600 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori TCM Stacker Trucks, sistem penggerak 24V Brushless AC Electric Drive (Lithium-Ion / Lead-Acid) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
stackers SPW / SPR Pedestrian Pallet Stacker Li-ION 24v Voltage 1.6t Max Cap Optimised for operator comfort . The SPW and SPR are two compact pedestrian stackers brand new to TCM. This new generation of pedestrian pallet stackers comes in different sizes and has a range of different features and benefits. They boast the shortest chassis on the market and provide low-cost, efficient solutions for multiple stacking and order-picking applications. The new stackers are ideal for the narrow aisles of a warehouse – manoeuvering seamlessly through very tight spaces – and their initial lift ability offers higher intensity double stacking.With world-class ergonomics and robust construction, the SPW and SPR pedestrian pallet stackers work to reduce environmental impact and maximise uptime, ultimately minimising your Total Cost of Ownership (TCO). Read our article for full information of the features and benefits. Truck Length 685mm-1,415mm Travel Speed with and without load 6km/h Turning Radius 1,458mm - 2,452mm Truck Width 800mm - 2237mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load SPW10-N3 1000 600 24 685 800 1458 6.0/6.0 SPW12-N3 1200 600 24 750 800 1572 6.0/6.0 SPW14-N3 1400 600 24 750 800 1572 6.0/6.0 SPW16-N3 1600 600 24 750 800 1572 6.0/6.0 SPW12I-N3 1200 600 24 885 800 1848 6.0/6.0 SPW14I-N3 1400 600 24 855 800 1848 6.0/6.0 SPW16I-N3 1600 600 24 855 800 1848 6.0/6.0 SPW16S-N3 1600 600 24 815 1140 - 1575 1647 6.0/6.0 SPR10-N3 1000 600 24 805/1285 800 1578 - 2058 6.0/6.0 SPR12-N3 1200 600 24 870/1350 800 1692 - 2172 6.0 / 6.0 SPR14-N3 1400 600 24 870/1350 800 1692/2172 6.0/6.0 SPR16-N3 1600 600 24 870/1350 800 1684/2170 6.0/6.0 SPR12I-N3 1200 600 24 975/1455 800 1972/2452 6.0/6.0 SPR14I-N3 1400 600 24 975/1455 800 1972/2452 6.0/6.0 SPR16I-N3 1600 600 24 975/1455 800 1972/2452 6.0/6.0 SPR16W-N3 1600 600 24 935/1415 1140/1575 1757/2237 6.0/6.0 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. Pedestrian Pallet Stacker Trucks SPW and SPR features As these stackers are designed for the narrow aisles of a warehouse, they will manoeuvre effortlessly through very tight spaces, and their initial lift capability provides higher-intensity double stacking capabilities. Diproduksi sesuai standar global TCM (Toyo Carriers Manufacturing Co., Ltd.), unit TCM SPR16W-N3 Pedestrian Pallet Stacker with Foldable Platform (1.600 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori TCM Stacker Trucks, sistem penggerak 24V Brushless AC Electric Drive (Lithium-Ion / Lead-Acid) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Keunggulan Rancang Bangun & Performa
- Keunggulan TCM SPR16W-N3 #1: Truck Length 685mm-1,415mm Travel Speed with and without load 6km/h Turning Radius 1,458mm - 2,452mm Truck Width 800mm - 2237mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load SPW10-N3 1000 600 24 685 800 1458 6.0/6.0 SPW12-N3 1200 600 24 750 800 1572 6.0/6.0 SPW14-N3 1400 600 24 750 800 1572 6.0/6.0 SPW16-N3 1600 600 24 750 800 1572 6.0/6.0 SPW12I-N3 1200 600 24 885 800 1848 6.0/6.0 SPW14I-N3 1400 600 24 855 800 1848 6.0/6.0 SPW16I-N3 1600 600 24 855 800 1848 6.0/6.0 SPW16S-N3 1600 600 24 815 1140 - 1575 1647 6.0/6.0 SPR10-N3 1000 600 24 805/1285 800 1578 - 2058 6.0/6.0 SPR12-N3 1200 600 24 870/1350 800 1692 - 2172 6.0 / 6.0 SPR14-N3 1400 600 24 870/1350 800 1692/2172 6.0/6.0 SPR16-N3 1600 600 24 870/1350 800 1684/2170 6.0/6.0 SPR12I-N3 1200 600 24 975/1455 800 1972/2452 6.0/6.0 SPR14I-N3 1400 600 24 975/1455 800 1972/2452 6.0/6.0 SPR16I-N3 1600 600 24 975/1455 800 1972/2452 6.0/6.0 SPR16W-N3 1600 600 24 935/1415 1140/1575 1757/2237 6.0/6.0 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. Pedestrian Pallet Stacker Trucks SPW and SPR features As these stackers are designed for the narrow aisles of a warehouse, they will manoeuvre effortlessly through very tight spaces, and their initial lift capability provides higher-intensity double stacking capabilities.
- Keunggulan TCM SPR16W-N3 #2: These are highly efficient warehouse vehicles. Aside from their impressive manoeuvrability, the SPW and SPR are fitted with low-maintenance AC motor technology, providing more torque and higher control. This feature makes it highly responsive to operator commands. Additionally, they don’t use carbon brushes and provide advanced energy efficiency, which minimises the chances of damage and reduces the need for servicing.
- Keunggulan TCM SPR16W-N3 #3: World-class ergonomics. The SPW and SPR pedestrian pallet stackers are designed with world-class ergonomics and robust construction, working to reduce your environmental impact and maximise uptime, ultimately minimising your TCO.

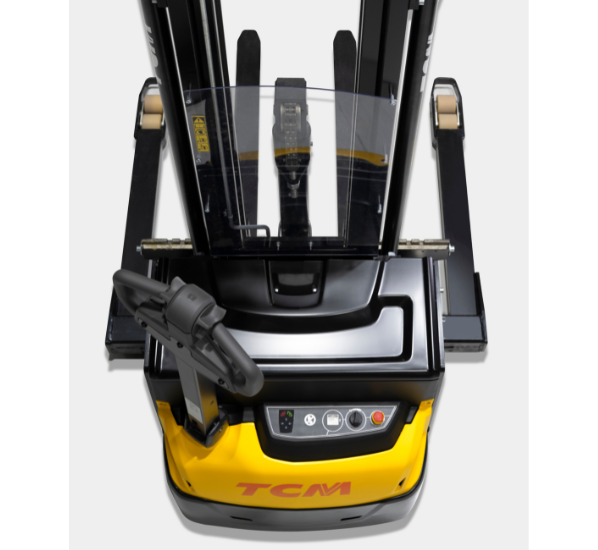

- Keunggulan TCM SPR16W-N3 #4: Productivity. Providing comfortable working environments for operators is imperative if you are to create a healthy and happy workplace culture and productive warehouse. These stacker trucks achieve just this as they are fitted with a patented, ergonomically-shaped tiller head with large life/lower rocker buttons and a large surface of speed control that suits all hand sizes.
Aplikasi & Sektor Industri Ideal
Unit TCM SPR16W-N3 Pedestrian Pallet Stacker with Foldable Platform (1.600 kg) pada kategori TCM Stacker Trucks sangat ideal untuk mendukung operasional Gudang Rak Bertingkat, Double-Deep Racking, Manufaktur, Farmasi, E-Commerce & Logistik Presisi di berbagai kawasan industri, pergudangan, dan pusat logistik di seluruh Indonesia.
Fitur & Keunggulan Utama (TCM SPR16W-N3)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar TCM
Fitur & Keunggulan Utama (TCM SPR16W-N3)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar TCM
Fitur Unggulan TCM SPR16W-N3 #1: Truck Length 685mm-1,415mm Travel Speed with and without load 6km/h Turning Radius 1,458mm - 2,452mm Truck Width 800mm - 2237mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load SPW10-N3 1000 600 24 685 800 1458 6.0/6.0 SPW12-N3 1200 600 24 750 800 1572 6.0/6.0 SPW14-N3 1400 600 24 750 800 1572 6.0/6.0 SPW16-N3 1600 600 24 750 800 1572 6.0/6.0 SPW12I-N3 1200 600 24 885 800 1848 6.0/6.0 SPW14I-N3 1400 600 24 855 800 1848 6.0/6.0 SPW16I-N3 1600 600 24 855 800 1848 6.0/6.0 SPW16S-N3 1600 600 24 815 1140 - 1575 1647 6.0/6.0 SPR10-N3 1000 600 24 805/1285 800 1578 - 2058 6.0/6.0 SPR12-N3 1200 600 24 870/1350 800 1692 - 2172 6.0 / 6.0 SPR14-N3 1400 600 24 870/1350 800 1692/2172 6.0/6.0 SPR16-N3 1600 600 24 870/1350 800 1684/2170 6.0/6.0 SPR12I-N3 1200 600 24 975/1455 800 1972/2452 6.0/6.0 SPR14I-N3 1400 600 24 975/1455 800 1972/2452 6.0/6.0 SPR16I-N3 1600 600 24 975/1455 800 1972/2452 6.0/6.0 SPR16W-N3 1600 600 24 935/1415 1140/1575 1757/2237 6.0/6.0 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. Pedestrian Pallet Stacker Trucks SPW and SPR features As these stackers are designed for the narrow aisles of a warehouse, they will manoeuvre effortlessly through very tight spaces, and their initial lift capability provides higher-intensity double stacking capabilities.
Fitur Unggulan TCM SPR16W-N3 #2: These are highly efficient warehouse vehicles. Aside from their impressive manoeuvrability, the SPW and SPR are fitted with low-maintenance AC motor technology, providing more torque and higher control. This feature makes it highly responsive to operator commands. Additionally, they don’t use carbon brushes and provide advanced energy efficiency, which minimises the chances of damage and reduces the need for servicing.
Fitur Unggulan TCM SPR16W-N3 #3: World-class ergonomics. The SPW and SPR pedestrian pallet stackers are designed with world-class ergonomics and robust construction, working to reduce your environmental impact and maximise uptime, ultimately minimising your TCO.
Fitur Unggulan TCM SPR16W-N3 #4: Productivity. Providing comfortable working environments for operators is imperative if you are to create a healthy and happy workplace culture and productive warehouse. These stacker trucks achieve just this as they are fitted with a patented, ergonomically-shaped tiller head with large life/lower rocker buttons and a large surface of speed control that suits all hand sizes.
Fitur Unggulan TCM SPR16W-N3 #5: Struktur sasis baja berkekuatan tinggi standar TCM (Toyo Carriers Manufacturing Co., Ltd.) untuk daya tahan operasional jangka panjang pada beban 1.600 kg (1.6 Ton).
Fitur Unggulan TCM SPR16W-N3 #6: Sistem penggerak & hidrolik presisi (24V Brushless AC Electric Drive (Lithium-Ion / Lead-Acid)) yang memberikan respons halus, efisiensi energi optimal, dan Total Cost of Ownership (TCO) rendah.
Fitur Unggulan TCM SPR16W-N3 #7: Desain ergonomis berorientasi operator dengan visibilitas luas dan radius putar kompak untuk manuver aman di lorong gudang maupun kawasan industri.
Fitur Unggulan TCM SPR16W-N3 #8: Dukungan penuh garansi resmi, ketersediaan suku cadang asli di Central Workshop Cakung, serta layanan teknisi mekanik keliling di 38 provinsi Indonesia.

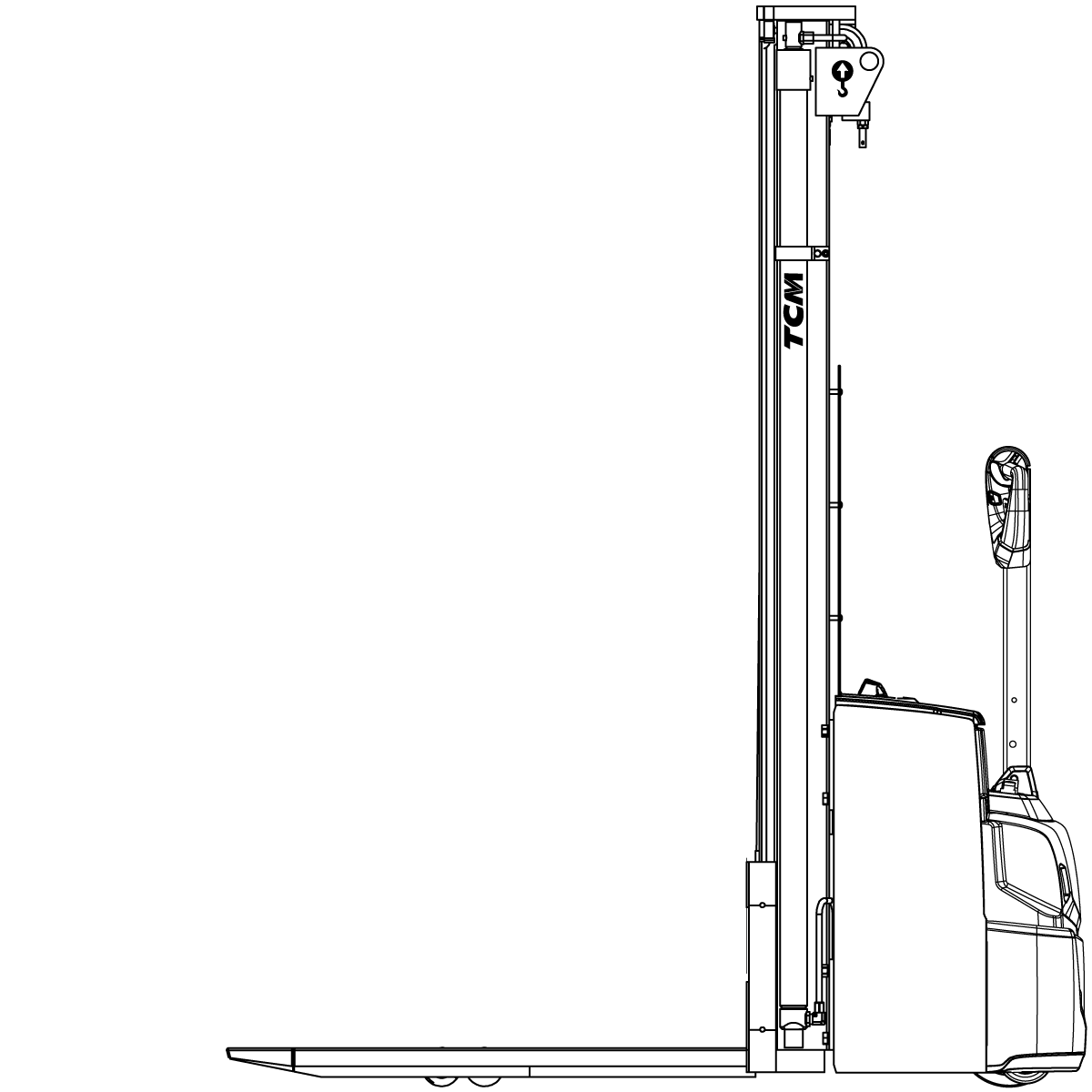

Parameter Teknis & Spesifikasi Lengkap (TCM SPR16W-N3)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
Parameter Teknis & Spesifikasi Lengkap (TCM SPR16W-N3)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
| Parameter Teknis | Nilai Spesifikasi |
|---|---|
| Merek / Brand | TCM |
| Pabrikan (Manufacturer) | Toyo Carriers Manufacturing Co., Ltd. |
| Designasi Kode Model | TCM SPR16W-N3 |
| Tipe Unit | Pedestrian Pallet Stacker with Foldable Platform |
| Kategori Alat | TCM Stacker Trucks |
| Kapasitas Beban Utama (Load Capacity) | 1.600 kg (1.6 Ton) |
| Titik Beban (Load Centre) | 600 mm |
| Tinggi Angkat (Lift Height) | 3.300 – 5.400 mm |
| Sistem Penggerak / Power Source | 24V Brushless AC Electric Drive (Lithium-Ion / Lead-Acid) |
| Model Designation | SPR16W-N3 |
| Load Capacity (Q) | 1600 kg |
| Load Centre (c) | 600 mm |
| Battery Voltage | 24 V (Lithium-Ion / Lead-Acid) |
| Length to Face of Forks (l2) | 935/1415 mm |
| Overall Chassis Width (b1) | 1140/1575 mm |
| Turning Radius (Wa) | 1757/2237 mm |
| Travel Speed (With / Without Load) | 6.0/6.0 km/h |
| Maximum Lift Height | 3.300 – 5.400 mm |
| Sektor Operasional Ideal | Gudang Rak Bertingkat, Double-Deep Racking, Manufaktur, Farmasi, E-Commerce & Logistik Presisi |
| Kepatuhan K3 & Sertifikasi | Standar CE / EU Stage V / ISO9001 & Siap Riksa Uji SILO K3 Kemnaker RI |
| Cakupan Garansi Resmi | Garansi Resmi Unit & Komponen Utama Standar TCM |
| Dealer, PDI & Layanan Purna Jual | PT. Cemerlang Perkasa Teknologi (Central Workshop Cakung & Layanan Nasional 38 Provinsi) |
Garansi & Layanan Purna Jual Resmi TCM
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Garansi & Layanan Purna Jual Resmi TCM
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Garansi Resmi Standar Pabrikan
Perlindungan garansi resmi standar TCM (Toyo Carriers Manufacturing Co., Ltd.) dan sertifikat Pre-Delivery Inspection (PDI) 48 titik untuk setiap pengadaan unit baru.
10.000+ SKU Suku Cadang Asli Cakung
Ketersediaan suku cadang orisinal (Genuine Parts) lengkap di gudang utama Central Cakung Jakarta Utara untuk menjamin minimum downtime operasional Anda.
Mobile Service Siaga 24/7
Tim teknisi mekanik bersertifikasi siap melakukan perawatan preventif berkala maupun perbaikan darurat langsung di lokasi gudang atau pabrik Anda.
Sertifikasi K3 & Uji SILO
Dukungan pengurusan sertifikasi kelayakan alat (SILO / K3 Kemnaker) resmi serta pelatihan pengoperasian dan perawatan harian bagi operator.
Unit Rekomendasi Terkait di Kategori TCM Stacker Trucks
Pilihan unit TCM sejenis dengan performa tangguh untuk referensi armada gudang & industri Anda.
TCM Stacker Trucks

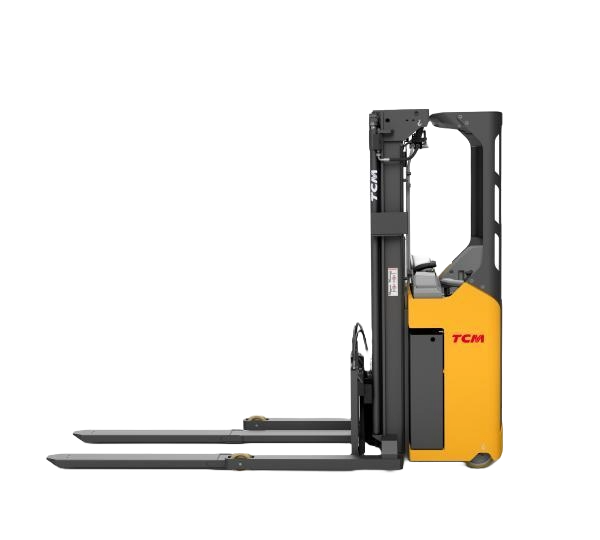

TCM SRT12-N2 Stand-In Telereach Double-Deep Stacker Truck (1.100 kg)
Model:TCM SRT12-N2
Kapasitas:1.100 kg
Tipe Daya:Electric 24V (Li-Ion / Lead-Acid)
TCM Stacker Trucks
TCM SST12-N2 Sit-On Telereach Double-Deep Stacker Truck (1.200 kg)
Model:TCM SST12-N2
Kapasitas:1.200 kg
Tipe Daya:Electric 24V (Li-Ion / Lead-Acid)
TCM Stacker Trucks

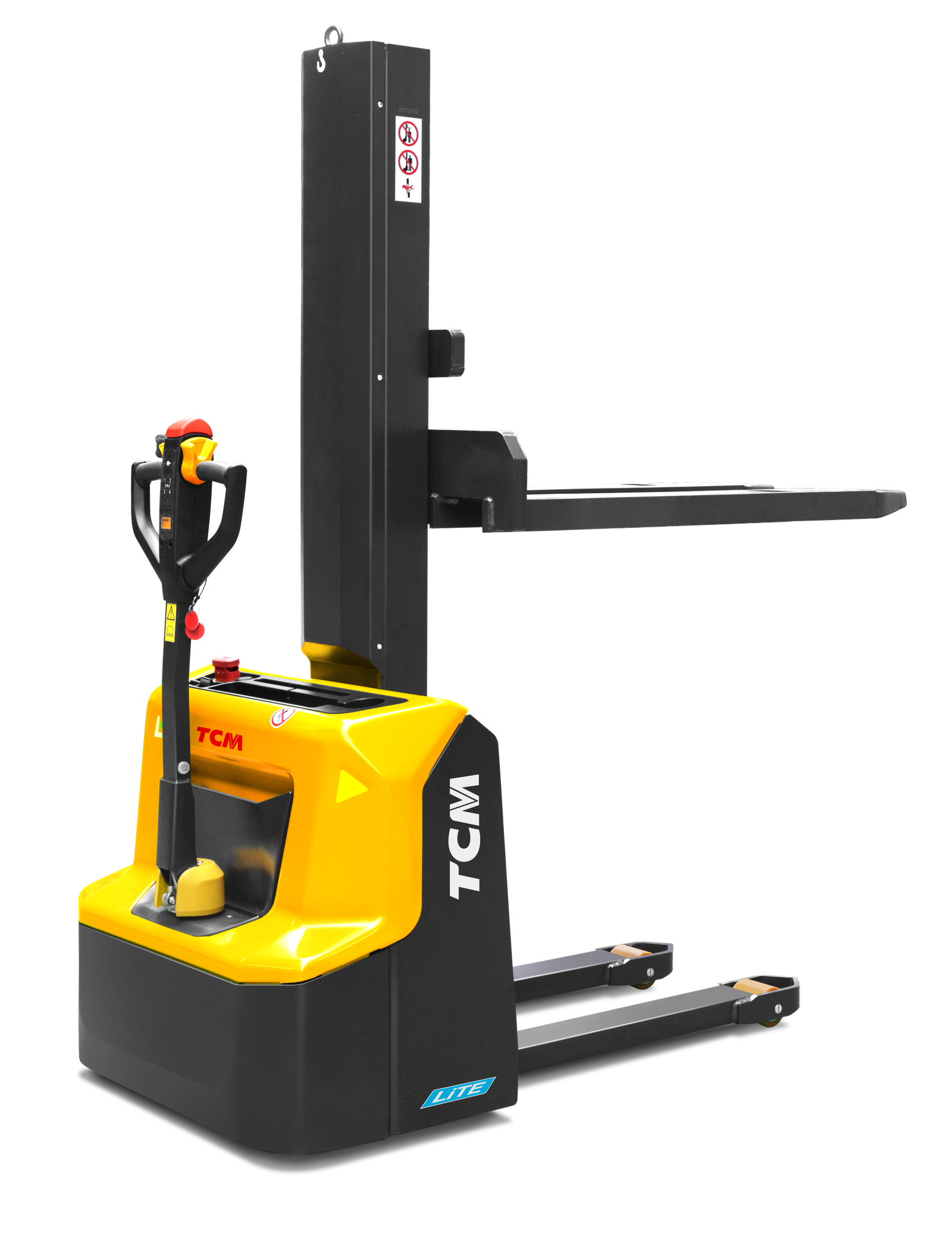

TCM PSL12M-Q2 LiTE Mono-Mast Pedestrian Lithium-Ion Stacker (1.200 kg)
