Electric 24V (Li-Ion / Lead-Acid)
TCM PTF 250
TCM Pallet Trucks • Toyo Carriers Manufacturing Co., Ltd.
Kapasitas Utama
2.500 kg (2.5 Ton)
Titik Beban / Tinggi Angkat
600 mm / 205 mm
Tipe Daya / Penggerak
Electric 24V (Li-Ion / Lead-Acid)
Pabrikan Resmi
Toyo Carriers Mfg. (TCM)

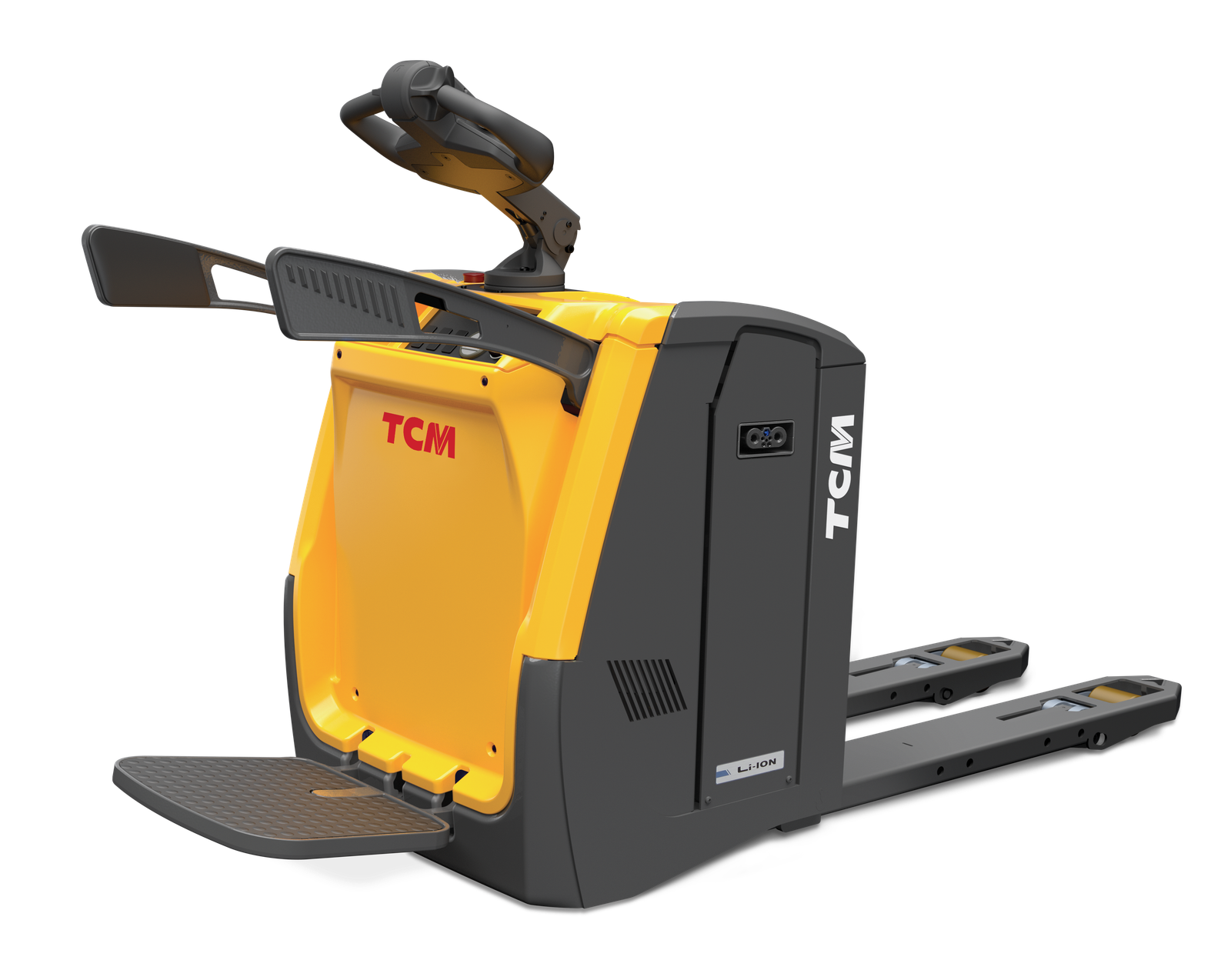

Unit TCM PTF 250 Power Pallet Truck with Foldable Rider Platform (2.500 kg) merupakan model andalan pada kategori TCM Pallet Trucks dari TCM (Toyo Carriers Manufacturing Co., Ltd.) yang dirancang untuk memberikan performa angkat optimal (2.500 kg (2.5 Ton)), stabilitas kerja tinggi, serta efisiensi operasional terbaik. Didukung penuh oleh garansi resmi, ketersediaan suku cadang asli di Central Workshop Cakung, serta layanan teknisi mekanik keliling dari PT. Cemerlang Perkasa Teknologi di seluruh 38 provinsi Indonesia.
Unit Baru 100% Original TCM & Siap Operasional
Kualitas Global Toyo Carriers Manufacturing Co., Ltd.
10.000+ SKU Suku Cadang Asli Cakung & Teknisi 24/7
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit TCM PTF 250
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit TCM PTF 250
Karakteristik Rancang Bangun & Keunggulan Konstruksi TCM (TCM PTF 250):
PALLET TRUCKS PTF Pedestrian Pallet Truck With Rider Platform Li-ION 24v Voltage 2.5t Max Cap Superior control , comfort , safety and efficiency The PTF power pallet truck with foldable platform is designed for highly efficient loading/unloading, order picking and short, medium and long internal transports.This truck offers flexible control, with the choice to raise or lower the platform and sidebars to meet different safety and practicality needs. These changes can be applied quickly for efficient transitions between warehouse and transport operations, increasing your operational uptime.The innovative truck design includes the patented TDS system for maximum drive wheel traction, regardless of load weight, for added operator safety whatever they’re transporting. Truck stability is maximised at all times by rear caster wheels with integrated shock absorption, plus variable damping that automatically adjusts to driving conditions. With built-in, fully integrated Li-ion Battery options available and compact truck dimensions, the PTF is a durable, productive companion in high-intensity, multiple shift operations. Truck Length 700mm-1,195mm Travel Speed with and without load 6-10km/h Turning Radius 1,666mm - 1,680mm Truck Width 720mm - 740mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load PTF 200 2000 600 24 700/1195 720 1680/2160 6.0/6.0 PTF 250 2500 600 24 730/1106 740 1666/2020 10/10 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. Safety First. In a workplace where handling heavy machinery is at the core of operations, safety regulations and procedures must be top priority. Diproduksi sesuai standar global TCM (Toyo Carriers Manufacturing Co., Ltd.), unit TCM PTF 250 Power Pallet Truck with Foldable Rider Platform (2.500 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori TCM Pallet Trucks, sistem penggerak 24V AC Electric Drive with Patented TDS Traction System (Li-Ion Option) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
PALLET TRUCKS PTF Pedestrian Pallet Truck With Rider Platform Li-ION 24v Voltage 2.5t Max Cap Superior control , comfort , safety and efficiency The PTF power pallet truck with foldable platform is designed for highly efficient loading/unloading, order picking and short, medium and long internal transports.This truck offers flexible control, with the choice to raise or lower the platform and sidebars to meet different safety and practicality needs. These changes can be applied quickly for efficient transitions between warehouse and transport operations, increasing your operational uptime.The innovative truck design includes the patented TDS system for maximum drive wheel traction, regardless of load weight, for added operator safety whatever they’re transporting. Truck stability is maximised at all times by rear caster wheels with integrated shock absorption, plus variable damping that automatically adjusts to driving conditions. With built-in, fully integrated Li-ion Battery options available and compact truck dimensions, the PTF is a durable, productive companion in high-intensity, multiple shift operations. Truck Length 700mm-1,195mm Travel Speed with and without load 6-10km/h Turning Radius 1,666mm - 1,680mm Truck Width 720mm - 740mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load PTF 200 2000 600 24 700/1195 720 1680/2160 6.0/6.0 PTF 250 2500 600 24 730/1106 740 1666/2020 10/10 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. Safety First. In a workplace where handling heavy machinery is at the core of operations, safety regulations and procedures must be top priority. Diproduksi sesuai standar global TCM (Toyo Carriers Manufacturing Co., Ltd.), unit TCM PTF 250 Power Pallet Truck with Foldable Rider Platform (2.500 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori TCM Pallet Trucks, sistem penggerak 24V AC Electric Drive with Patented TDS Traction System (Li-Ion Option) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Keunggulan Rancang Bangun & Performa
- Keunggulan TCM PTF 250 #1: Truck Length 700mm-1,195mm Travel Speed with and without load 6-10km/h Turning Radius 1,666mm - 1,680mm Truck Width 720mm - 740mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load PTF 200 2000 600 24 700/1195 720 1680/2160 6.0/6.0 PTF 250 2500 600 24 730/1106 740 1666/2020 10/10 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. Safety First. In a workplace where handling heavy machinery is at the core of operations, safety regulations and procedures must be top priority.
- Keunggulan TCM PTF 250 #2: That’s why we adopt a safety-first approach with our forklift design. Incorporating extensive safety features helps to reduce forklift truck accidents and ensure our trucks are reliable in real-world conditions and compliant with industry standards. This approach extends to our end-to-end support to ensure you have the tools you need to provide operators with the necessary safety training.
- Keunggulan TCM PTF 250 #3: Total Cost of Ownership. Whether you’re looking to cut costs or improve operational efficiency, reducing your total cost of ownership (TCO) is key. TCO takes into account the initial purchase price of equipment, as well as any direct or indirect expenses incurred.
- Keunggulan TCM PTF 250 #4: Combining fit for purpose, tailored forklift trucks with grounded expertise, we can help you to reduce your overall TCO through a range of activities. These include optimising operator productivity, warehouse efficiency and space utilisation, as well as selecting the right power source for your needs and providing regular vehicle maintenance.
Aplikasi & Sektor Industri Ideal
Unit TCM PTF 250 Power Pallet Truck with Foldable Rider Platform (2.500 kg) pada kategori TCM Pallet Trucks sangat ideal untuk mendukung operasional Pergudangan Modern, Pusat Distribusi, Retail, Supermarket, Cross-Docking & Bongkar Muat Ekspedisi di berbagai kawasan industri, pergudangan, dan pusat logistik di seluruh Indonesia.
Fitur & Keunggulan Utama (TCM PTF 250)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar TCM
Fitur & Keunggulan Utama (TCM PTF 250)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar TCM
Fitur Unggulan TCM PTF 250 #1: Truck Length 700mm-1,195mm Travel Speed with and without load 6-10km/h Turning Radius 1,666mm - 1,680mm Truck Width 720mm - 740mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load PTF 200 2000 600 24 700/1195 720 1680/2160 6.0/6.0 PTF 250 2500 600 24 730/1106 740 1666/2020 10/10 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. Safety First. In a workplace where handling heavy machinery is at the core of operations, safety regulations and procedures must be top priority.
Fitur Unggulan TCM PTF 250 #2: That’s why we adopt a safety-first approach with our forklift design. Incorporating extensive safety features helps to reduce forklift truck accidents and ensure our trucks are reliable in real-world conditions and compliant with industry standards. This approach extends to our end-to-end support to ensure you have the tools you need to provide operators with the necessary safety training.
Fitur Unggulan TCM PTF 250 #3: Total Cost of Ownership. Whether you’re looking to cut costs or improve operational efficiency, reducing your total cost of ownership (TCO) is key. TCO takes into account the initial purchase price of equipment, as well as any direct or indirect expenses incurred.
Fitur Unggulan TCM PTF 250 #4: Combining fit for purpose, tailored forklift trucks with grounded expertise, we can help you to reduce your overall TCO through a range of activities. These include optimising operator productivity, warehouse efficiency and space utilisation, as well as selecting the right power source for your needs and providing regular vehicle maintenance.
Fitur Unggulan TCM PTF 250 #5: Struktur sasis baja berkekuatan tinggi standar TCM (Toyo Carriers Manufacturing Co., Ltd.) untuk daya tahan operasional jangka panjang pada beban 2.500 kg (2.5 Ton).
Fitur Unggulan TCM PTF 250 #6: Sistem penggerak & hidrolik presisi (24V AC Electric Drive with Patented TDS Traction System (Li-Ion Option)) yang memberikan respons halus, efisiensi energi optimal, dan Total Cost of Ownership (TCO) rendah.
Fitur Unggulan TCM PTF 250 #7: Desain ergonomis berorientasi operator dengan visibilitas luas dan radius putar kompak untuk manuver aman di lorong gudang maupun kawasan industri.
Fitur Unggulan TCM PTF 250 #8: Dukungan penuh garansi resmi, ketersediaan suku cadang asli di Central Workshop Cakung, serta layanan teknisi mekanik keliling di 38 provinsi Indonesia.
Parameter Teknis & Spesifikasi Lengkap (TCM PTF 250)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
Parameter Teknis & Spesifikasi Lengkap (TCM PTF 250)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
| Parameter Teknis | Nilai Spesifikasi |
|---|---|
| Merek / Brand | TCM |
| Pabrikan (Manufacturer) | Toyo Carriers Manufacturing Co., Ltd. |
| Designasi Kode Model | TCM PTF 250 |
| Tipe Unit | Power Pallet Truck with Foldable Rider Platform |
| Kategori Alat | TCM Pallet Trucks |
| Kapasitas Beban Utama (Load Capacity) | 2.500 kg (2.5 Ton) |
| Titik Beban (Load Centre) | 600 mm |
| Tinggi Angkat (Lift Height) | 205 mm |
| Sistem Penggerak / Power Source | 24V AC Electric Drive with Patented TDS Traction System (Li-Ion Option) |
| Model Designation | PTF 250 |
| Load Capacity (Q) | 2500 kg |
| Load Centre (c) | 600 mm |
| Battery Voltage | 24 V (Integrated Li-Ion / Lead-Acid) |
| Length to Face of Forks (l2) | 730/1106 mm |
| Overall Chassis Width (b1) | 740 mm |
| Turning Radius (Wa) | 1666/2020 mm |
| Travel Speed (With / Without Load) | 10/10 km/h |
| Traction & Damping | Patented TDS Drive Wheel Traction & Shock-Absorbing Variable Damping Castors |
| Sektor Operasional Ideal | Pergudangan Modern, Pusat Distribusi, Retail, Supermarket, Cross-Docking & Bongkar Muat Ekspedisi |
| Kepatuhan K3 & Sertifikasi | Standar CE / EU Stage V / ISO9001 & Siap Riksa Uji SILO K3 Kemnaker RI |
| Cakupan Garansi Resmi | Garansi Resmi Unit & Komponen Utama Standar TCM |
| Dealer, PDI & Layanan Purna Jual | PT. Cemerlang Perkasa Teknologi (Central Workshop Cakung & Layanan Nasional 38 Provinsi) |
Garansi & Layanan Purna Jual Resmi TCM
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Garansi & Layanan Purna Jual Resmi TCM
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Garansi Resmi Standar Pabrikan
Perlindungan garansi resmi standar TCM (Toyo Carriers Manufacturing Co., Ltd.) dan sertifikat Pre-Delivery Inspection (PDI) 48 titik untuk setiap pengadaan unit baru.
10.000+ SKU Suku Cadang Asli Cakung
Ketersediaan suku cadang orisinal (Genuine Parts) lengkap di gudang utama Central Cakung Jakarta Utara untuk menjamin minimum downtime operasional Anda.
Mobile Service Siaga 24/7
Tim teknisi mekanik bersertifikasi siap melakukan perawatan preventif berkala maupun perbaikan darurat langsung di lokasi gudang atau pabrik Anda.
Sertifikasi K3 & Uji SILO
Dukungan pengurusan sertifikasi kelayakan alat (SILO / K3 Kemnaker) resmi serta pelatihan pengoperasian dan perawatan harian bagi operator.
Unit Rekomendasi Terkait di Kategori TCM Pallet Trucks
Pilihan unit TCM sejenis dengan performa tangguh untuk referensi armada gudang & industri Anda.
TCM Pallet Trucks

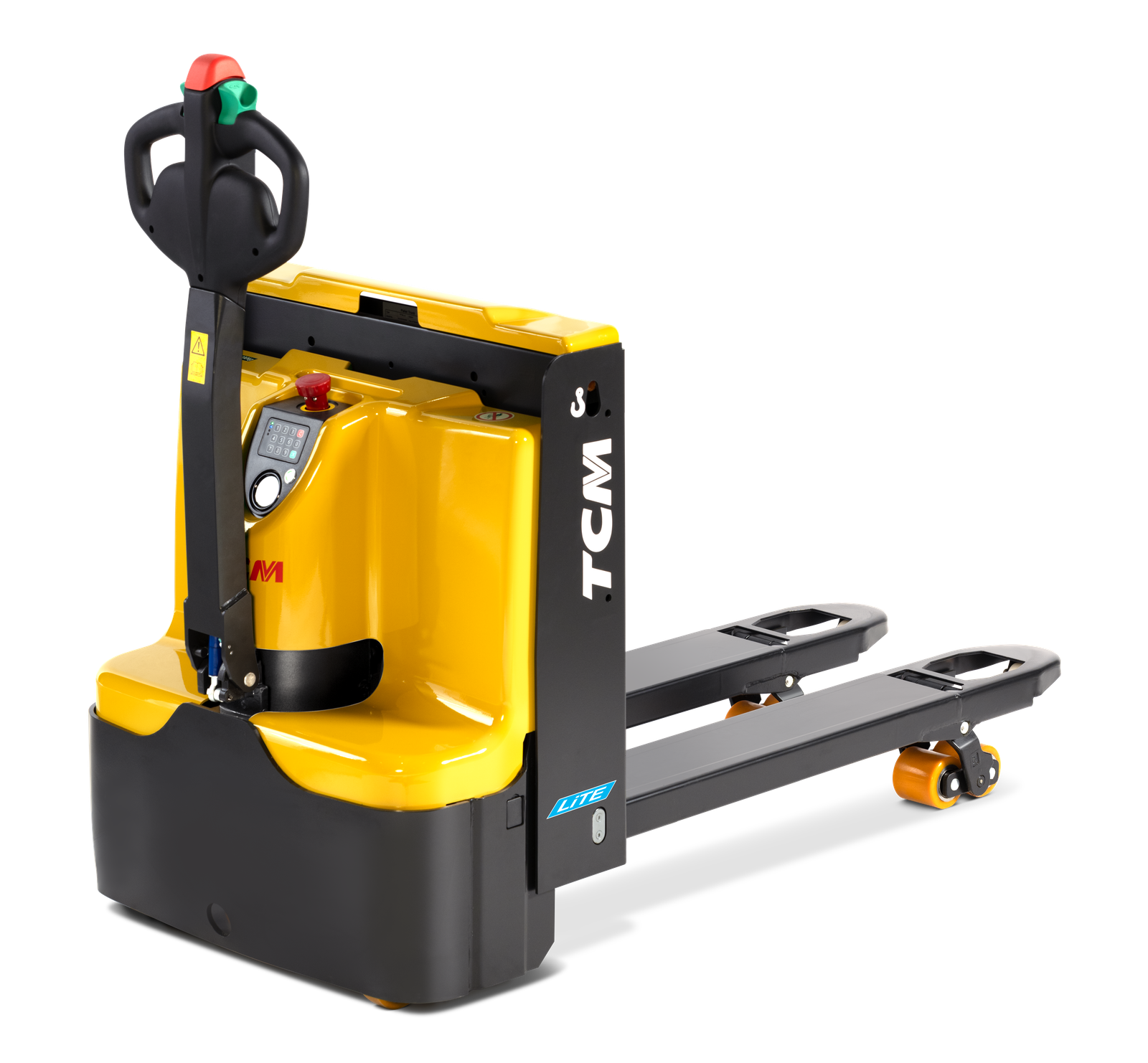

TCM PWL20-Q2 LiTE Pedestrian Powered Lithium-Ion Pallet Truck (2.000 kg)
Model:TCM PWL20-Q2
Kapasitas:2.000 kg
Tipe Daya:Lithium-Ion (24V)
TCM Pallet Trucks

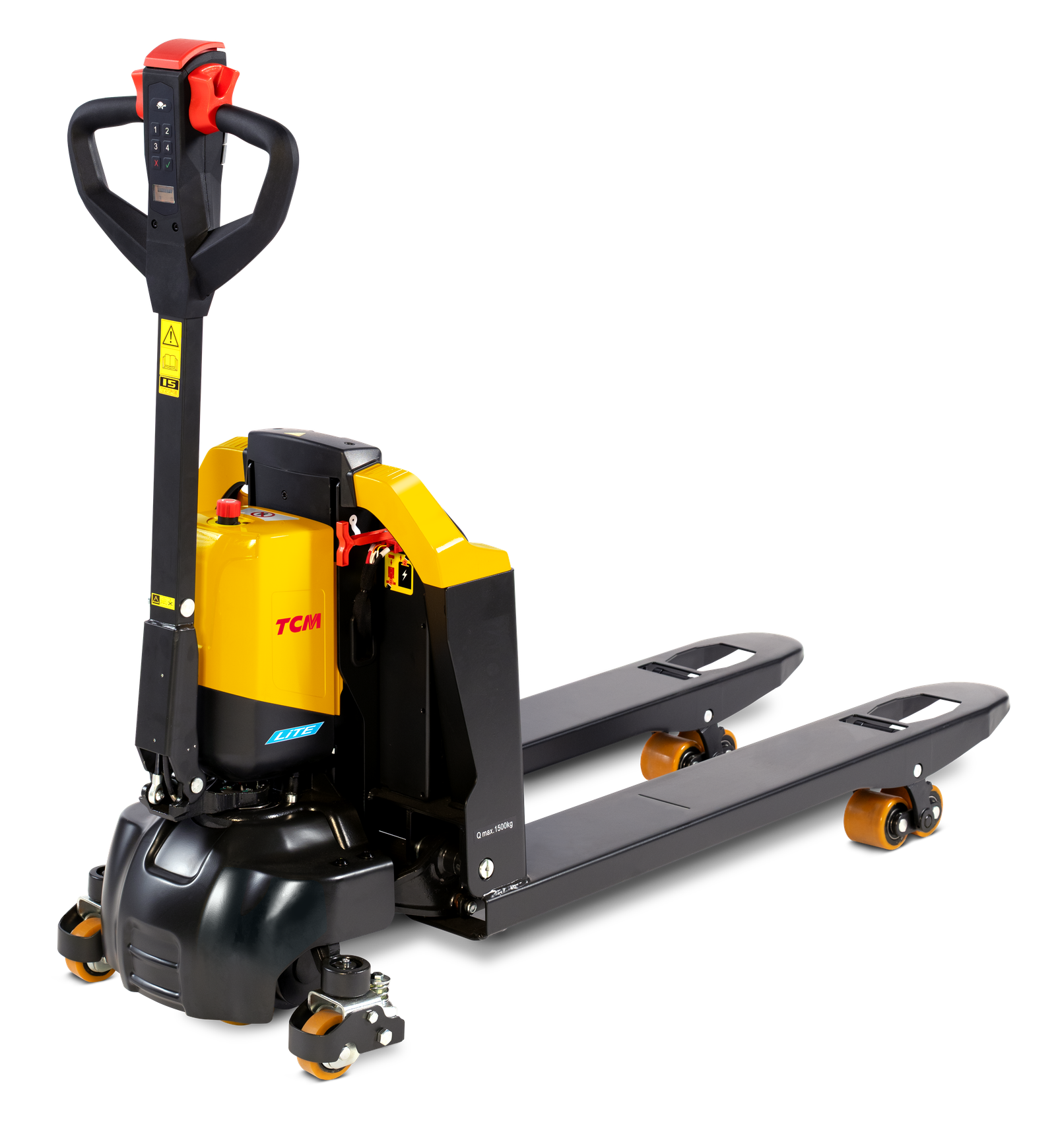

TCM PWL15E-Q2 LiTE Pedestrian Powered Lithium-Ion Pallet Truck (1.500 kg)
