Lithium-Ion (24V)
TCM PWL15E-Q2
TCM Pallet Trucks • Toyo Carriers Manufacturing Co., Ltd.
Kapasitas Utama
1.500 kg (1.5 Ton)
Titik Beban / Tinggi Angkat
600 mm / 200 mm
Tipe Daya / Penggerak
Lithium-Ion (24V)
Pabrikan Resmi
Toyo Carriers Mfg. (TCM)
Unit TCM PWL15E-Q2 LiTE Pedestrian Powered Lithium-Ion Pallet Truck (1.500 kg) merupakan model andalan pada kategori TCM Pallet Trucks dari TCM (Toyo Carriers Manufacturing Co., Ltd.) yang dirancang untuk memberikan performa angkat optimal (1.500 kg (1.5 Ton)), stabilitas kerja tinggi, serta efisiensi operasional terbaik. Didukung penuh oleh garansi resmi, ketersediaan suku cadang asli di Central Workshop Cakung, serta layanan teknisi mekanik keliling dari PT. Cemerlang Perkasa Teknologi di seluruh 38 provinsi Indonesia.
Unit Baru 100% Original TCM & Siap Operasional
Kualitas Global Toyo Carriers Manufacturing Co., Ltd.
10.000+ SKU Suku Cadang Asli Cakung & Teknisi 24/7
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit TCM PWL15E-Q2
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit TCM PWL15E-Q2
Karakteristik Rancang Bangun & Keunggulan Konstruksi TCM (TCM PWL15E-Q2):
Pallet Truck PWL15-20E Pedestrian Powered Hand Pallet Truck Li-ION 24/48v Voltage 2.0t Max Cap Strength and reliability . The PWL15-20E-Q2 is a compact, robust hand pallet truck designed for applications requiring strength and dependability. With 1,500 KG and 2,000 KG capacity options and a robust steel chassis frame, this powered pallet truck is built to handle daily warehouse operations with minimal downtime and extended service life. Ideal for retail, light logistics, and small to mid-sized warehouses requiring reliable pallet movement throughout the day, the PWL15-20E-Q2 combines TCM's engineering excellence with straight forward specifications for everyday use. The ergonomic tiller head with creep button simplifies operation in tight spaces, ensuring operators work comfortably and efficiently throughout the day. Diproduksi sesuai standar global TCM (Toyo Carriers Manufacturing Co., Ltd.), unit TCM PWL15E-Q2 LiTE Pedestrian Powered Lithium-Ion Pallet Truck (1.500 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori TCM Pallet Trucks, sistem penggerak 24V Fast-Charging Lithium-Ion (Li-Ion) Battery yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Pallet Truck PWL15-20E Pedestrian Powered Hand Pallet Truck Li-ION 24/48v Voltage 2.0t Max Cap Strength and reliability . The PWL15-20E-Q2 is a compact, robust hand pallet truck designed for applications requiring strength and dependability. With 1,500 KG and 2,000 KG capacity options and a robust steel chassis frame, this powered pallet truck is built to handle daily warehouse operations with minimal downtime and extended service life. Ideal for retail, light logistics, and small to mid-sized warehouses requiring reliable pallet movement throughout the day, the PWL15-20E-Q2 combines TCM's engineering excellence with straight forward specifications for everyday use. The ergonomic tiller head with creep button simplifies operation in tight spaces, ensuring operators work comfortably and efficiently throughout the day. Diproduksi sesuai standar global TCM (Toyo Carriers Manufacturing Co., Ltd.), unit TCM PWL15E-Q2 LiTE Pedestrian Powered Lithium-Ion Pallet Truck (1.500 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori TCM Pallet Trucks, sistem penggerak 24V Fast-Charging Lithium-Ion (Li-Ion) Battery yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Keunggulan Rancang Bangun & Performa
- Keunggulan TCM PWL15E-Q2 #1: Ideal for retail, light logistics, and small to mid-sized warehouses requiring reliable pallet movement throughout the day, the PWL15-20E-Q2 combines TCM's engineering excellence with straight forward specifications for everyday use. The ergonomic tiller head with creep button simplifies operation in tight spaces, ensuring operators work comfortably and efficiently throughout the day.
- Keunggulan TCM PWL15E-Q2 #2: A small turning radius enables safe and confident manoeuvrability in confined spaces, reducing the risk of accidents and improving productivity. Fork tips marked at 800mm combined with side castor wheels ensure easy and accurate pallet entry, speeding up operations and reducing operator frustration. Fast battery change and charging maintains productivity with minimal interruptions, reducing downtime when you need the truck most.
- Keunggulan TCM PWL15E-Q2 #3: Truck Length 1538mm Travel Speed with and without load 4.4-4.9km/h Turning Radius 1,340mm Truck Width 685mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load PWL16-Q2 1600 600 24 1590 729 1422 5.7/6 PWL20-Q2 2000 600 24 1668 729 1500 5.0/6.0 PWL15E-Q2 1500 600 24 1538 685 1340 4.4/4.9 PWL20E-Q2 2000 600 48 1538 685 1340 4.9/4.9 PPL20-Q2 2000 600 24 1655 730 1488 7.0/8.0 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. Safety First. In a workplace where handling heavy machinery is at the core of operations, safety regulations and procedures must be top priority.
- Keunggulan TCM PWL15E-Q2 #4: The PWL15-20E-Q2 incorporates essential safety features to reduce forklift truck accidents. The small turning radius of 1,340mm enables safe and confident manoeuvrability in confined spaces, reducing the risk of collisions in busy warehouse environments. The ergonomic tiller head with creep button provides enhanced control when positioning loads in tight spaces or navigating around obstacles.
Aplikasi & Sektor Industri Ideal
Unit TCM PWL15E-Q2 LiTE Pedestrian Powered Lithium-Ion Pallet Truck (1.500 kg) pada kategori TCM Pallet Trucks sangat ideal untuk mendukung operasional Pergudangan Modern, Pusat Distribusi, Retail, Supermarket, Cross-Docking & Bongkar Muat Ekspedisi di berbagai kawasan industri, pergudangan, dan pusat logistik di seluruh Indonesia.
Fitur & Keunggulan Utama (TCM PWL15E-Q2)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar TCM
Fitur & Keunggulan Utama (TCM PWL15E-Q2)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar TCM
Fitur Unggulan TCM PWL15E-Q2 #1: Ideal for retail, light logistics, and small to mid-sized warehouses requiring reliable pallet movement throughout the day, the PWL15-20E-Q2 combines TCM's engineering excellence with straight forward specifications for everyday use. The ergonomic tiller head with creep button simplifies operation in tight spaces, ensuring operators work comfortably and efficiently throughout the day.
Fitur Unggulan TCM PWL15E-Q2 #2: A small turning radius enables safe and confident manoeuvrability in confined spaces, reducing the risk of accidents and improving productivity. Fork tips marked at 800mm combined with side castor wheels ensure easy and accurate pallet entry, speeding up operations and reducing operator frustration. Fast battery change and charging maintains productivity with minimal interruptions, reducing downtime when you need the truck most.
Fitur Unggulan TCM PWL15E-Q2 #3: Truck Length 1538mm Travel Speed with and without load 4.4-4.9km/h Turning Radius 1,340mm Truck Width 685mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load PWL16-Q2 1600 600 24 1590 729 1422 5.7/6 PWL20-Q2 2000 600 24 1668 729 1500 5.0/6.0 PWL15E-Q2 1500 600 24 1538 685 1340 4.4/4.9 PWL20E-Q2 2000 600 48 1538 685 1340 4.9/4.9 PPL20-Q2 2000 600 24 1655 730 1488 7.0/8.0 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. Safety First. In a workplace where handling heavy machinery is at the core of operations, safety regulations and procedures must be top priority.
Fitur Unggulan TCM PWL15E-Q2 #4: The PWL15-20E-Q2 incorporates essential safety features to reduce forklift truck accidents. The small turning radius of 1,340mm enables safe and confident manoeuvrability in confined spaces, reducing the risk of collisions in busy warehouse environments. The ergonomic tiller head with creep button provides enhanced control when positioning loads in tight spaces or navigating around obstacles.
Fitur Unggulan TCM PWL15E-Q2 #5: Struktur sasis baja berkekuatan tinggi standar TCM (Toyo Carriers Manufacturing Co., Ltd.) untuk daya tahan operasional jangka panjang pada beban 1.500 kg (1.5 Ton).
Fitur Unggulan TCM PWL15E-Q2 #6: Sistem penggerak & hidrolik presisi (24V Fast-Charging Lithium-Ion (Li-Ion) Battery) yang memberikan respons halus, efisiensi energi optimal, dan Total Cost of Ownership (TCO) rendah.
Fitur Unggulan TCM PWL15E-Q2 #7: Desain ergonomis berorientasi operator dengan visibilitas luas dan radius putar kompak untuk manuver aman di lorong gudang maupun kawasan industri.
Fitur Unggulan TCM PWL15E-Q2 #8: Dukungan penuh garansi resmi, ketersediaan suku cadang asli di Central Workshop Cakung, serta layanan teknisi mekanik keliling di 38 provinsi Indonesia.
Parameter Teknis & Spesifikasi Lengkap (TCM PWL15E-Q2)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
Parameter Teknis & Spesifikasi Lengkap (TCM PWL15E-Q2)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
| Parameter Teknis | Nilai Spesifikasi |
|---|---|
| Merek / Brand | TCM |
| Pabrikan (Manufacturer) | Toyo Carriers Manufacturing Co., Ltd. |
| Designasi Kode Model | TCM PWL15E-Q2 |
| Tipe Unit | LiTE Pedestrian Powered Lithium-Ion Pallet Truck |
| Kategori Alat | TCM Pallet Trucks |
| Kapasitas Beban Utama (Load Capacity) | 1.500 kg (1.5 Ton) |
| Titik Beban (Load Centre) | 600 mm |
| Tinggi Angkat (Lift Height) | 200 mm |
| Sistem Penggerak / Power Source | 24V Fast-Charging Lithium-Ion (Li-Ion) Battery |
| Model Designation | PWL15E-Q2 |
| Product Series | TCM LiTE Range (Lithium-Ion) |
| Load Capacity (Q) | 1500 kg |
| Load Centre (c) | 600 mm |
| Battery Voltage | 24 V Lithium-Ion |
| Overall Truck Length (l1) | 1538 mm |
| Overall Chassis Width (b1) | 685 mm |
| Turning Radius (Wa) | 1340 mm |
| Travel Speed (With / Without Load) | 4.4/4.9 km/h |
| Sektor Operasional Ideal | Pergudangan Modern, Pusat Distribusi, Retail, Supermarket, Cross-Docking & Bongkar Muat Ekspedisi |
| Kepatuhan K3 & Sertifikasi | Standar CE / EU Stage V / ISO9001 & Siap Riksa Uji SILO K3 Kemnaker RI |
| Cakupan Garansi Resmi | Garansi Resmi Unit & Komponen Utama Standar TCM |
| Dealer, PDI & Layanan Purna Jual | PT. Cemerlang Perkasa Teknologi (Central Workshop Cakung & Layanan Nasional 38 Provinsi) |
Garansi & Layanan Purna Jual Resmi TCM
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Garansi & Layanan Purna Jual Resmi TCM
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Garansi Resmi Standar Pabrikan
Perlindungan garansi resmi standar TCM (Toyo Carriers Manufacturing Co., Ltd.) dan sertifikat Pre-Delivery Inspection (PDI) 48 titik untuk setiap pengadaan unit baru.
10.000+ SKU Suku Cadang Asli Cakung
Ketersediaan suku cadang orisinal (Genuine Parts) lengkap di gudang utama Central Cakung Jakarta Utara untuk menjamin minimum downtime operasional Anda.
Mobile Service Siaga 24/7
Tim teknisi mekanik bersertifikasi siap melakukan perawatan preventif berkala maupun perbaikan darurat langsung di lokasi gudang atau pabrik Anda.
Sertifikasi K3 & Uji SILO
Dukungan pengurusan sertifikasi kelayakan alat (SILO / K3 Kemnaker) resmi serta pelatihan pengoperasian dan perawatan harian bagi operator.
Unit Rekomendasi Terkait di Kategori TCM Pallet Trucks
Pilihan unit TCM sejenis dengan performa tangguh untuk referensi armada gudang & industri Anda.
TCM Pallet Trucks
TCM PTF 200 Power Pallet Truck with Foldable Rider Platform (2.000 kg)
Model:TCM PTF 200
Kapasitas:2.000 kg
Tipe Daya:Electric 24V (Li-Ion / Lead-Acid)
TCM Pallet Trucks
TCM PTF 250 Power Pallet Truck with Foldable Rider Platform (2.500 kg)
Model:TCM PTF 250
Kapasitas:2.500 kg
Tipe Daya:Electric 24V (Li-Ion / Lead-Acid)
TCM Pallet Trucks

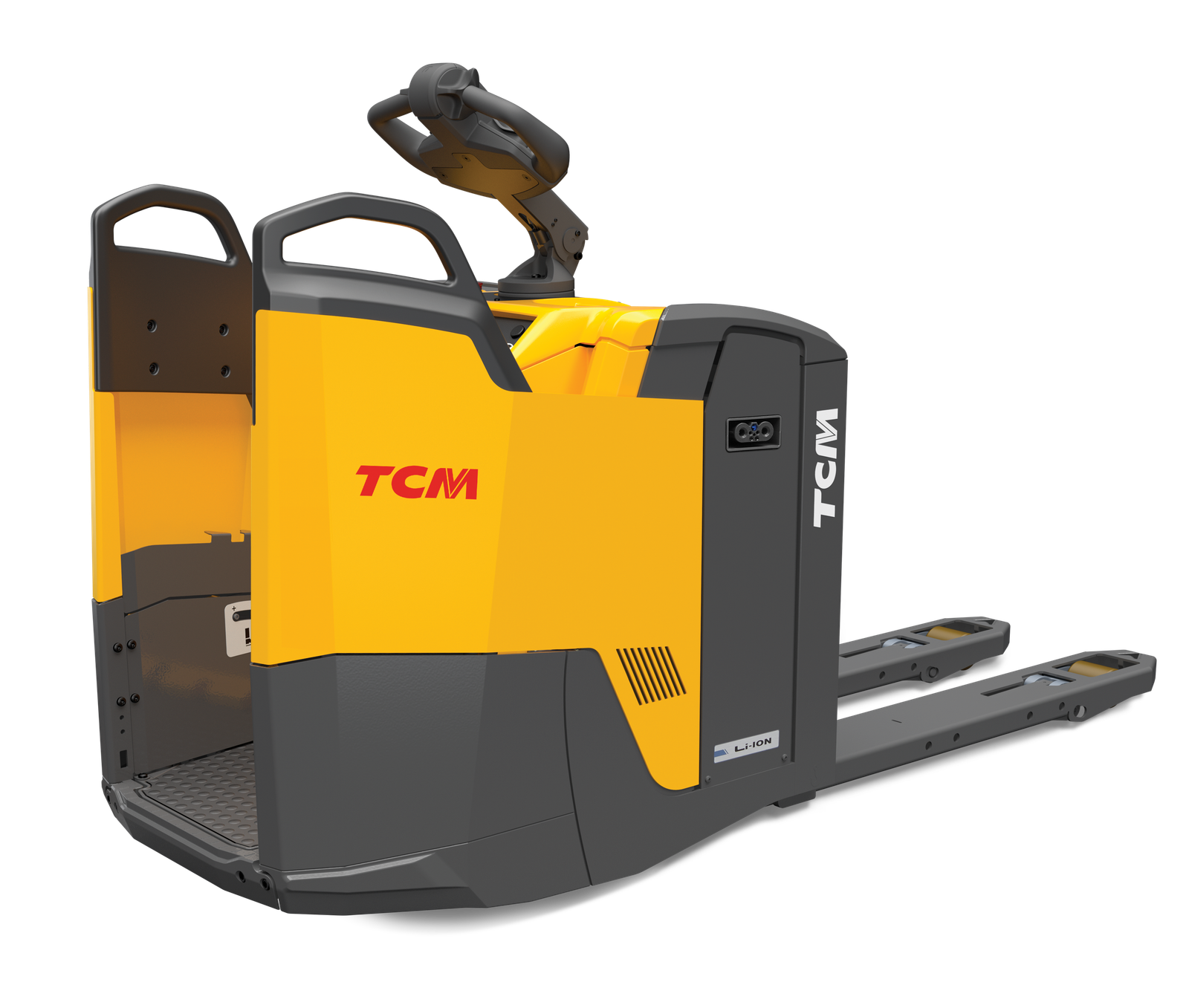

TCM PTP/R 200 Power Pallet Truck with Rear-Entry Fixed Platform (2.000 kg)
