Electric
Xilin CDD10R-ES
Xilin Electric Stacker • Xilin (Ningbo Ruyi Joint Stock Co., Ltd)
Kapasitas Utama
1.000 kg (1.0 Ton)
Titik Beban / Tinggi Angkat
600 mm / 1600/2500/3000/3300 mm
Tipe Daya / Penggerak
Electric
Pabrikan Resmi
Ningbo Ruyi (Xilin)
Unit Xilin CDD10R-ES Electric Stacker with Initial Lift (1.000 kg) merupakan model andalan pada kategori Xilin Electric Stacker dari Xilin yang dirancang untuk memberikan performa angkat optimal (1.000 kg (1.0 Ton)), stabilitas kerja tinggi, serta efisiensi operasional terbaik. Didukung penuh oleh garansi resmi, ketersediaan suku cadang asli di Central Workshop Cakung, serta layanan teknisi mekanik keliling dari PT. Cemerlang Perkasa Teknologi di seluruh 38 provinsi Indonesia.
Unit Baru 100% Original Xilin & Siap Operasional
Kualitas Global Ningbo Ruyi Joint Stock Co., Ltd
10.000+ SKU Suku Cadang Asli Cakung & Teknisi 24/7
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit Xilin CDD10R-ES
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit Xilin CDD10R-ES
Karakteristik Rancang Bangun & Keunggulan Konstruksi Xilin (Xilin CDD10R-ES):
This Light duty type electric stacker CDD10R-E(S) in double–pallet using, support arm lift 1000kgs, and mast lift 1000kg (total load weight max is 1000kg) . Specifically designed for intensive stocking operations at low height warehouse. It is the best solution for smoothly passing in crossing door or dock on uneven ground. Diproduksi sesuai standar global Xilin (Ningbo Ruyi Joint Stock Co., Ltd), unit Xilin CDD10R-ES Electric Stacker with Initial Lift (1.000 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori Xilin Electric Stacker, sistem penggerak Electric Industrial Battery (24/105(125)) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
This Light duty type electric stacker CDD10R-E(S) in double–pallet using, support arm lift 1000kgs, and mast lift 1000kg (total load weight max is 1000kg) . Specifically designed for intensive stocking operations at low height warehouse. It is the best solution for smoothly passing in crossing door or dock on uneven ground. Diproduksi sesuai standar global Xilin (Ningbo Ruyi Joint Stock Co., Ltd), unit Xilin CDD10R-ES Electric Stacker with Initial Lift (1.000 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori Xilin Electric Stacker, sistem penggerak Electric Industrial Battery (24/105(125)) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Keunggulan Rancang Bangun & Performa
- Keunggulan Xilin CDD10R-ES #1: Compact design and small dimensions , offer excellent visibility .
- Keunggulan Xilin CDD10R-ES #2: The 4-points support structure with side tiller, low center of gravity design with excellent stability.
- Keunggulan Xilin CDD10R-ES #3: Double pallet design: two pallet handled at one time, initial lift of load leg increases ground clearance to negotiate easily ramps, dock levelers and bridge.
- Keunggulan Xilin CDD10R-ES #4: With floor type driving wheel, offer small turning radius, dustproof waterproof motor, easy for maintenance.
Aplikasi & Sektor Industri Ideal
Unit Xilin CDD10R-ES Electric Stacker with Initial Lift (1.000 kg) pada kategori Xilin Electric Stacker sangat ideal untuk mendukung operasional Gudang Rak Bertingkat, Manufaktur, Farmasi, Makanan & Minuman (FMCG) & Pusat Logistik di berbagai kawasan industri, pergudangan, dan pusat logistik di seluruh Indonesia.
Fitur & Keunggulan Utama (Xilin CDD10R-ES)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar Xilin
Fitur & Keunggulan Utama (Xilin CDD10R-ES)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar Xilin
Fitur Unggulan Xilin CDD10R-ES #1: Compact design and small dimensions , offer excellent visibility .
Fitur Unggulan Xilin CDD10R-ES #2: The 4-points support structure with side tiller, low center of gravity design with excellent stability.
Fitur Unggulan Xilin CDD10R-ES #3: Double pallet design: two pallet handled at one time, initial lift of load leg increases ground clearance to negotiate easily ramps, dock levelers and bridge.
Fitur Unggulan Xilin CDD10R-ES #4: With floor type driving wheel, offer small turning radius, dustproof waterproof motor, easy for maintenance.
Fitur Unggulan Xilin CDD10R-ES #5: With good ramp braking performance efficient electromagnetic parking brake.
Fitur Unggulan Xilin CDD10R-ES #6: BDI with low voltage cut off protection device, protect battery and prolong the battery life time.
Fitur Unggulan Xilin CDD10R-ES #7: Balance wheel height is adjustable, ensure the drive wheel life.
Fitur Unggulan Xilin CDD10R-ES #8: Low noise development with quite motor.
Parameter Teknis & Spesifikasi Lengkap (Xilin CDD10R-ES)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
Parameter Teknis & Spesifikasi Lengkap (Xilin CDD10R-ES)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak

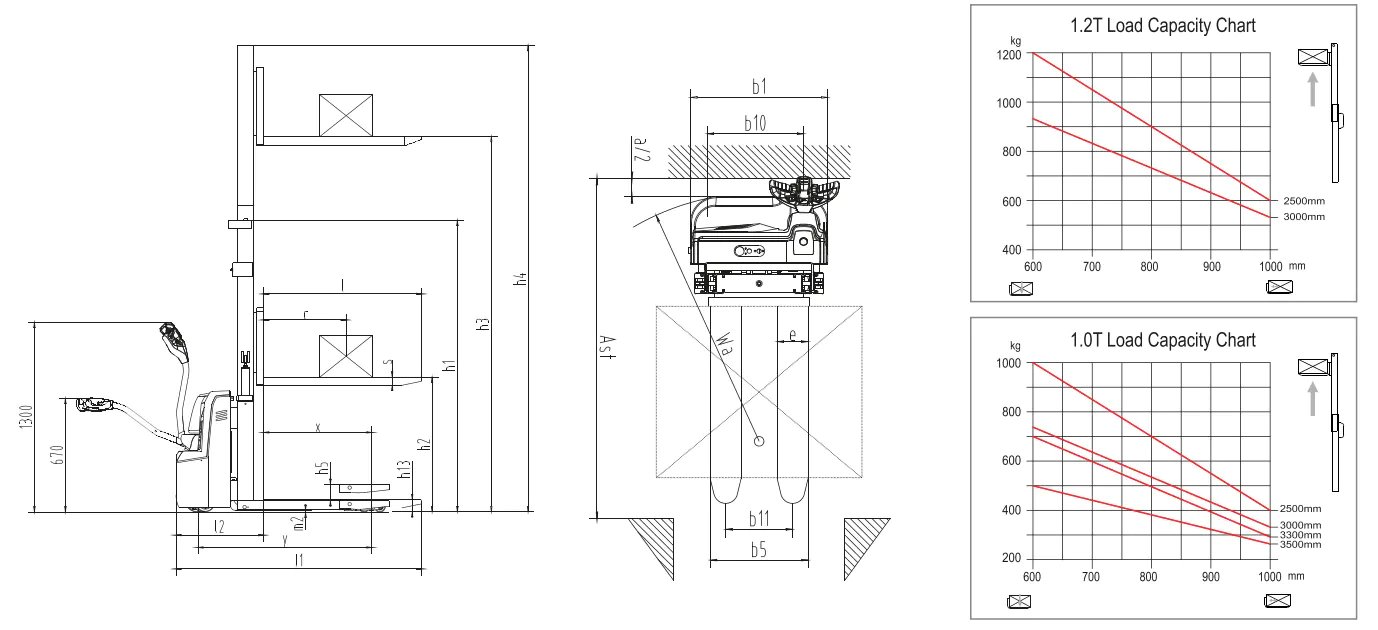

| Parameter Teknis | Nilai Spesifikasi |
|---|---|
| Merek / Brand | Xilin |
| Pabrikan (Manufacturer) | Ningbo Ruyi Joint Stock Co., Ltd |
| Designasi Kode Model | Xilin CDD10R-ES |
| Tipe Unit | Electric Stacker with Initial Lift |
| Kategori Alat | Xilin Electric Stacker |
| Kapasitas Beban Utama (Load Capacity) | 1.000 kg (1.0 Ton) |
| Titik Beban (Load Centre) | 600 mm |
| Tinggi Angkat (Lift Height) | 1600/2500/3000/3300 mm |
| Sistem Penggerak / Power Source | Electric Industrial Battery (24/105(125)) |
| Manufacturer's type designation | CODR10R-ES |
| Drive: electric (battery type, mains,…),diesel, petrol, fuel gas | Electric |
| Operator type: hand, pedestrian, standing, seated, order-picker | Pedestrian |
| Rated capacity/rated load (Q(kg）) | 1000 |
| Load centre distance (c(mm)) | 600 |
| Load distance, centre of drive axle to fork (x(mm)) | 788 |
| Wheelbase (y(mm)) | 1268 |
| Service weight (kg) | 605/670/690/702 |
| Axle loading, laden front/rear (kg) | 710/1000 |
| Axle loading, unladen front/rear (kg) | 220/490 |
| Tyres: solid rubber, super elastic, pneumatic, polyurethane | Polyurethane |
| Tyre size, front | Φ195x70 |
| Tyre size, rear | Φ80x70 |
| Additional wheels (dimensions) | Φ150x60 |
| Wheels, number front/rear (x = driven wheels) | 1x+1/4 |
| Tread, front (b10(mm)) | 523 |
| Tread, rear (b11(mm)) | 390 |
| Height mast lowered (h1(mm)) | 2122/1872/2122/2272 |
| Max lift height (h3(mm)) | 1600/2500/3000/3300 |
| Height mast extended (h4(mm)) | 2122/3092/3592/3892 |
| Initial lift (h5(mm)) | 120 |
| Height drawbar in driving position min./max. (h14(mm)) | 670/1300 |
| Height of wheel arms (h8(mm)) | 82/202 |
| Height lowered (h13(mm)) | 90 |
| Overall length (l1(mm)) | 1709(1789) |
| Length to face of forks (l2(mm)) | 639 |
| Overall width (b1/b2(mm)) | 800 |
| Fork dimensions DIN ISO 2331 (s/e/l(mm)) | 60/180/1070(1150) |
| Fork spread (b5(mm)) | 570 |
| Ground clearance, centre of wheelbase (m2(mm)) | 17-137 |
| Aisle width for pallets 1000 x 1200 crossways (Ast(mm)) | 2286 |
| Aisle width for pallets 800 x 1200 lengthways (Ast(mm)) | 2224 |
| Turning radius (Wa(mm)) | 1450 |
| Travel speed, laden/unladen (km/h) | 4.5/5.0 |
| Lift speed, laden/unladen (m/s) | 0.11/0.14 |
| Lowering speed, laden/unladen (m/s) | 0.12/0.12 |
| Max gradeability, laden/unladen (%) | 6/15 |
| Service brake | Electromagnetic |
| Drive motor rating S2 60 min (kW) | 0.65(DC) |
| Lift motor rating at S3 15% (kW) | 2.2 |
| Sektor Operasional Ideal | Gudang Rak Bertingkat, Manufaktur, Farmasi, Makanan & Minuman (FMCG) & Pusat Logistik |
| Kepatuhan K3 & Sertifikasi | Standar CE / ISO9001 / ISO14001 & Siap Riksa Uji SILO K3 Kemnaker RI |
| Cakupan Garansi Resmi | Garansi Resmi Unit & Komponen Utama Standar Xilin |
| Dealer, PDI & Layanan Purna Jual | PT. Cemerlang Perkasa Teknologi (Central Workshop Cakung & Layanan Nasional 38 Provinsi) |
