Electric
Xilin CQD15
Xilin Narrow Aisle & Reach Truck • Xilin (Ningbo Ruyi Joint Stock Co., Ltd)
Kapasitas Utama
1.500 kg (1.5 Ton)
Titik Beban / Tinggi Angkat
600 mm / 3000/3500/4000/5000/6200/7400/8000 mm
Tipe Daya / Penggerak
Electric
Pabrikan Resmi
Ningbo Ruyi (Xilin)
Unit Xilin CQD15 Electric Reach Truck (1.500 kg) merupakan model andalan pada kategori Xilin Narrow Aisle & Reach Truck dari Xilin yang dirancang untuk memberikan performa angkat optimal (1.500 kg (1.5 Ton)), stabilitas kerja tinggi, serta efisiensi operasional terbaik. Didukung penuh oleh garansi resmi, ketersediaan suku cadang asli di Central Workshop Cakung, serta layanan teknisi mekanik keliling dari PT. Cemerlang Perkasa Teknologi di seluruh 38 provinsi Indonesia.
Unit Baru 100% Original Xilin & Siap Operasional
Kualitas Global Ningbo Ruyi Joint Stock Co., Ltd
10.000+ SKU Suku Cadang Asli Cakung & Teknisi 24/7
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit Xilin CQD15
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit Xilin CQD15
Karakteristik Rancang Bangun & Keunggulan Konstruksi Xilin (Xilin CQD15):
Max.lift height:8000MM CQD15(EPS) Reach Truck is innovation type based on CQD15M, which with heavy duty chassis , extra large compartment and unequalled visibility. Which can excels bigger load capacity at high reach elevations, compact cabin design can be used in drive in racking, the operator can work more effectively. Diproduksi sesuai standar global Xilin (Ningbo Ruyi Joint Stock Co., Ltd), unit Xilin CQD15 Electric Reach Truck (1.500 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori Xilin Narrow Aisle & Reach Truck, sistem penggerak Electric Industrial Battery (48/400) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Max.lift height:8000MM CQD15(EPS) Reach Truck is innovation type based on CQD15M, which with heavy duty chassis , extra large compartment and unequalled visibility. Which can excels bigger load capacity at high reach elevations, compact cabin design can be used in drive in racking, the operator can work more effectively. Diproduksi sesuai standar global Xilin (Ningbo Ruyi Joint Stock Co., Ltd), unit Xilin CQD15 Electric Reach Truck (1.500 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori Xilin Narrow Aisle & Reach Truck, sistem penggerak Electric Industrial Battery (48/400) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Keunggulan Rancang Bangun & Performa
- Keunggulan Xilin CQD15 #1: AC control system.
- Keunggulan Xilin CQD15 #2: Powering steering system (EPS).
- Keunggulan Xilin CQD15 #3: Multi-function display can show: Brake status, Driving direction, Hour meter, Driving speed, Fault code, etc.
- Keunggulan Xilin CQD15 #4: Manual multi-valve.
Aplikasi & Sektor Industri Ideal
Unit Xilin CQD15 Electric Reach Truck (1.500 kg) pada kategori Xilin Narrow Aisle & Reach Truck sangat ideal untuk mendukung operasional Gudang Lorong Sempit (Narrow Aisle), High-Rack Warehouse, Cold Storage & Pusat Distribusi di berbagai kawasan industri, pergudangan, dan pusat logistik di seluruh Indonesia.
Fitur & Keunggulan Utama (Xilin CQD15)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar Xilin
Fitur & Keunggulan Utama (Xilin CQD15)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar Xilin
Fitur Unggulan Xilin CQD15 #1: AC control system.
Fitur Unggulan Xilin CQD15 #2: Powering steering system (EPS).
Fitur Unggulan Xilin CQD15 #3: Multi-function display can show: Brake status, Driving direction, Hour meter, Driving speed, Fault code, etc.
Fitur Unggulan Xilin CQD15 #4: Manual multi-valve.
Fitur Unggulan Xilin CQD15 #5: Adjustable speed for forks lifting/lowering mast forward/backward and side shift right/left.
Fitur Unggulan Xilin CQD15 #6: German ZF brand gear box.
Fitur Unggulan Xilin CQD15 #7: Adjustable steering wheel.
Fitur Unggulan Xilin CQD15 #8: With traveling speed limited device when forks at high level.

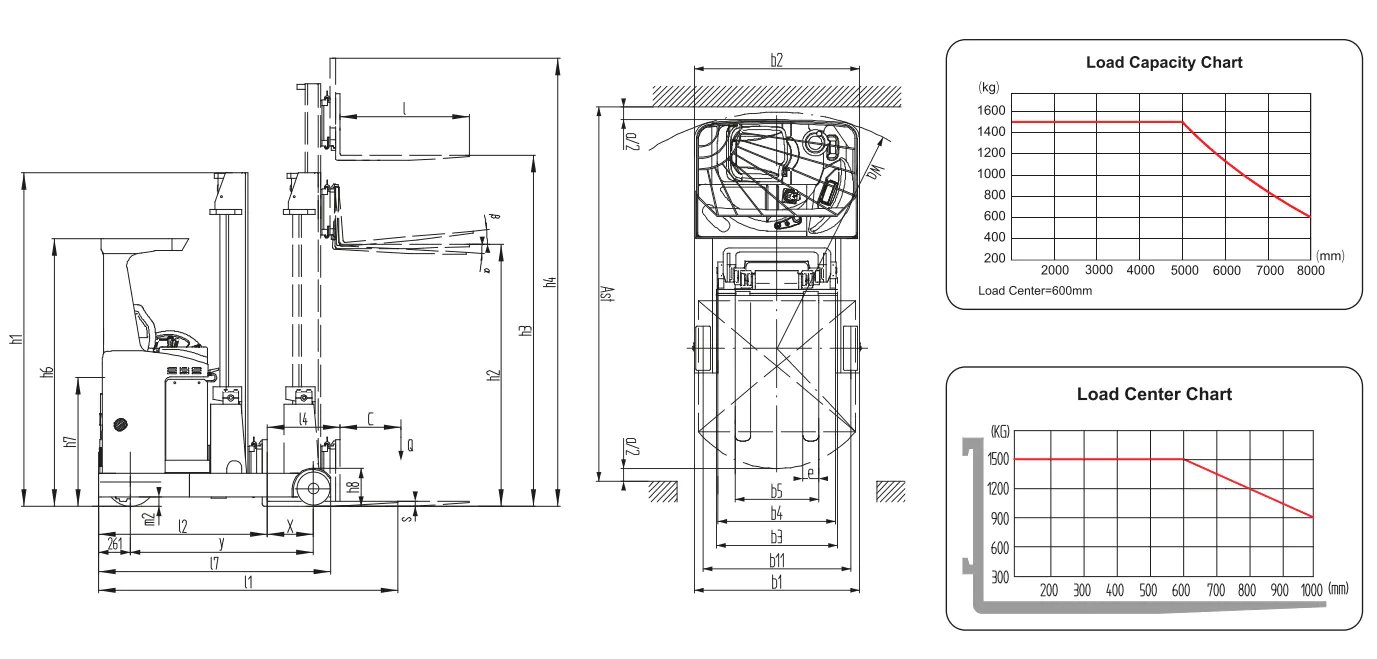

Parameter Teknis & Spesifikasi Lengkap (Xilin CQD15)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
Parameter Teknis & Spesifikasi Lengkap (Xilin CQD15)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
| Parameter Teknis | Nilai Spesifikasi |
|---|---|
| Merek / Brand | Xilin |
| Pabrikan (Manufacturer) | Ningbo Ruyi Joint Stock Co., Ltd |
| Designasi Kode Model | Xilin CQD15 |
| Tipe Unit | Electric Reach Truck |
| Kategori Alat | Xilin Narrow Aisle & Reach Truck |
| Kapasitas Beban Utama (Load Capacity) | 1.500 kg (1.5 Ton) |
| Titik Beban (Load Centre) | 600 mm |
| Tinggi Angkat (Lift Height) | 3000/3500/4000/5000/6200/7400/8000 mm |
| Sistem Penggerak / Power Source | Electric Industrial Battery (48/400) |
| Manufacturer's type designation | CQD15 |
| Drive: electric (battery type, mains,...), diesel, petrol, fuel gas | Electric |
| Operator type: hand, pedestrian, standing, seated, order-picker | Seated |
| Rated capacity/rated load (Q(kg)) | 1500 |
| Load centre distance (c(mm)) | 600 |
| Load distance, centre of drive axle to fork (x(mm)) | 365 |
| Wheelbase (y(mm)) | 1500 |
| Service weight (kg) | 3410 1) |
| Axle loading, unladen front/rear (kg) | 2017/1393 1) |
| Axle loading, fork advanced, laden front/rear (kg) | 1050/3860 1) |
| Axle loading, fork retracted, laden front/rear (kg) | 1830/3080 1) |
| Tyres: solid rubber, super elastic, pneumatic, polyurethane | Polyurethane |
| Tyre size, front (mm) | Φ310x120 |
| Tyre size, rear (mm) | Φ285x110 |
| Wheels, number front/rear (x = driven wheels) | 1X/2 |
| Tread, rear (b11(mm)) | 1090 |
| Tilt of mast/fork carriage forward/backward (a/b(°)) | 2/2(fork) |
| Height, mast lowered (h1(mm)) | 2090/2340/2740/2270/2740/3190/3390 |
| Free lift (h2(mm)) | 0/0/0/1440/1940/2390/2590 |
| h (*)(mm) | 0/0/0/1700/2100/2500/2700 |
| Max. lift height (h3(mm)) | 3000/3500/4000/5000/6200/7400/8000 |
| Height, mast extended (h4(mm)) | 3800/4300/4800/5800/7000/8200/8800 |
| Height of overhead guard (cabin) (h6(mm)) | 2140 |
| Overall length (l1(mm)) | 2433 |
| Length to face of forks (l2(mm)) | 1300 |
| Overall width (b1/b2 (mm)) | 1200/1200 |
| Fork dimensions DIN ISO 2331 (s/e/l(mm)) | 35/100/1070 |
| Fork carriage ISO 2328, class/type A, B | 2A |
| Fork-carriage width (b3(mm)) | 928 |
| Fork spread (b5(mm)) | 680 |
| Distance between wheel arms/loading surfaces (b4(mm)) | 840 |
| Reach distance (;4(mm)) | 550 |
| Ground clearance, laden, below mast (m1(mm)) | 80 |
| Aisle width for pallets 1000 x 1200 crossways (Ast(mm)) | 2880 |
| Aisle width for pallets 800 x 1200 lengthways (Ast(mm)) | 2930 |
| Turning radius (Wa(mm)) | 1780 |
| Length across wheel arms (l7(mm)) | 1880 |
| Travel speed, laden/unladen (km/h) | 8.0/8.3 |
| Lift speed, laden/unladen (m/s) | 0.24/0.3 |
| Lowering speed, laden/unladen (m/s) | 0.45/0.36 |
| Sektor Operasional Ideal | Gudang Lorong Sempit (Narrow Aisle), High-Rack Warehouse, Cold Storage & Pusat Distribusi |
| Kepatuhan K3 & Sertifikasi | Standar CE / ISO9001 / ISO14001 & Siap Riksa Uji SILO K3 Kemnaker RI |
| Cakupan Garansi Resmi | Garansi Resmi Unit & Komponen Utama Standar Xilin |
| Dealer, PDI & Layanan Purna Jual | PT. Cemerlang Perkasa Teknologi (Central Workshop Cakung & Layanan Nasional 38 Provinsi) |
Garansi & Layanan Purna Jual Resmi Xilin
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Garansi & Layanan Purna Jual Resmi Xilin
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Garansi Resmi Standar Pabrikan
Perlindungan garansi resmi standar Xilin (Ningbo Ruyi Joint Stock Co., Ltd) dan sertifikat Pre-Delivery Inspection (PDI) 48 titik untuk setiap pengadaan unit baru.
10.000+ SKU Suku Cadang Asli Cakung
Ketersediaan suku cadang orisinal (Genuine Parts) lengkap di gudang utama Central Cakung Jakarta Utara untuk menjamin minimum downtime operasional Anda.
Mobile Service Siaga 24/7
Tim teknisi mekanik bersertifikasi siap melakukan perawatan preventif berkala maupun perbaikan darurat langsung di lokasi gudang atau pabrik Anda.
Sertifikasi K3 & Uji SILO
Dukungan pengurusan sertifikasi kelayakan alat (SILO / K3 Kemnaker) resmi serta pelatihan pengoperasian dan perawatan harian bagi operator.
