Lithium-Ion
Xilin OPL10G
Xilin Order Picker • Xilin (Ningbo Ruyi Joint Stock Co., Ltd)
Kapasitas Utama
1.000 kg (1.0 Ton)
Titik Beban / Tinggi Angkat
700 mm / 1140 mm
Tipe Daya / Penggerak
Lithium-Ion
Pabrikan Resmi
Ningbo Ruyi (Xilin)
Unit Xilin OPL10G Electric Low Level Order Picker (1.000 kg) merupakan model andalan pada kategori Xilin Order Picker dari Xilin yang dirancang untuk memberikan performa angkat optimal (1.000 kg (1.0 Ton)), stabilitas kerja tinggi, serta efisiensi operasional terbaik. Didukung penuh oleh garansi resmi, ketersediaan suku cadang asli di Central Workshop Cakung, serta layanan teknisi mekanik keliling dari PT. Cemerlang Perkasa Teknologi di seluruh 38 provinsi Indonesia.
Unit Baru 100% Original Xilin & Siap Operasional
Kualitas Global Ningbo Ruyi Joint Stock Co., Ltd
10.000+ SKU Suku Cadang Asli Cakung & Teknisi 24/7
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit Xilin OPL10G
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit Xilin OPL10G
Karakteristik Rancang Bangun & Keunggulan Konstruksi Xilin (Xilin OPL10G):
Diproduksi sesuai standar global Xilin (Ningbo Ruyi Joint Stock Co., Ltd), unit Xilin OPL10G Electric Low Level Order Picker (1.000 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori Xilin Order Picker, sistem penggerak Lithium-Ion (Li-Ion) Battery (24V/225Ah) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Diproduksi sesuai standar global Xilin (Ningbo Ruyi Joint Stock Co., Ltd), unit Xilin OPL10G Electric Low Level Order Picker (1.000 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori Xilin Order Picker, sistem penggerak Lithium-Ion (Li-Ion) Battery (24V/225Ah) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Keunggulan Rancang Bangun & Performa
- Keunggulan Xilin OPL10G #1: Max. lifting height of platform is 1.2M. It is very convenient to pick up goods. The capacity of storage compartment in front of the operator is 60kg.
- Keunggulan Xilin OPL10G #2: Advanced power steering system (EPS) handle ensures effortless and highly efficient maneuver ability.
- Keunggulan Xilin OPL10G #3: Ergonomic human engineering design provides the convenience and comfort operation.
- Keunggulan Xilin OPL10G #4: Combining of regenerative brake and electromagnetic brake provide safe and reliable brake.
Aplikasi & Sektor Industri Ideal
Unit Xilin OPL10G Electric Low Level Order Picker (1.000 kg) pada kategori Xilin Order Picker sangat ideal untuk mendukung operasional Pusat E-Commerce, Gudang Suku Cadang, Distribusi Ritel, Farmasi & Fulfillment Center di berbagai kawasan industri, pergudangan, dan pusat logistik di seluruh Indonesia.
Fitur & Keunggulan Utama (Xilin OPL10G)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar Xilin
Fitur & Keunggulan Utama (Xilin OPL10G)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar Xilin
Fitur Unggulan Xilin OPL10G #1: Max. lifting height of platform is 1.2M. It is very convenient to pick up goods. The capacity of storage compartment in front of the operator is 60kg.
Fitur Unggulan Xilin OPL10G #2: Advanced power steering system (EPS) handle ensures effortless and highly efficient maneuver ability.
Fitur Unggulan Xilin OPL10G #3: Ergonomic human engineering design provides the convenience and comfort operation.
Fitur Unggulan Xilin OPL10G #4: Combining of regenerative brake and electromagnetic brake provide safe and reliable brake.
Fitur Unggulan Xilin OPL10G #5: Side-way battery designs is very convenient for maintenance and replacement.
Fitur Unggulan Xilin OPL10G #6: Adding the USB charge device on the control panel which could charge the phone, pad and so on.
Fitur Unggulan Xilin OPL10G #7: Strong powers which allow the travel speed at 7KM/H when loaded. The max. gradeability could reach 10%. Improve the working efficiency and reliability.
Fitur Unggulan Xilin OPL10G #8: Advanced AC control with reliable performance is easy to maintain. Speed frequency control makes good control performance.

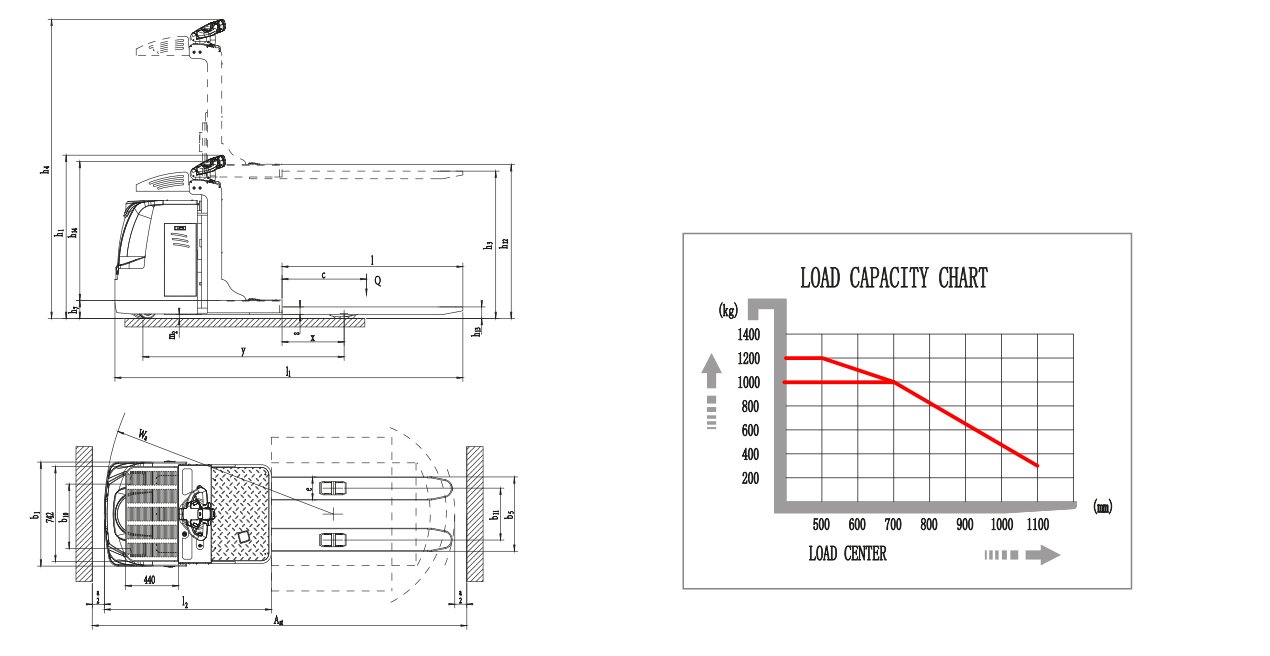

Parameter Teknis & Spesifikasi Lengkap (Xilin OPL10G)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
Parameter Teknis & Spesifikasi Lengkap (Xilin OPL10G)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
| Parameter Teknis | Nilai Spesifikasi |
|---|---|
| Merek / Brand | Xilin |
| Pabrikan (Manufacturer) | Ningbo Ruyi Joint Stock Co., Ltd |
| Designasi Kode Model | Xilin OPL10G |
| Tipe Unit | Electric Low Level Order Picker |
| Kategori Alat | Xilin Order Picker |
| Kapasitas Beban Utama (Load Capacity) | 1.000 kg (1.0 Ton) |
| Titik Beban (Load Centre) | 700 mm |
| Tinggi Angkat (Lift Height) | 1140 mm |
| Sistem Penggerak / Power Source | Lithium-Ion (Li-Ion) Battery (24V/225Ah) |
| Spesifikasi Baterai Lithium-Ion (Li-Ion) | 24V/225Ah (Fast Charging & Maintenance-Free) |
| Manufacturer's type designation | OPL10G |
| Drive: electric (battery type, mains, ...), diesel, petrol, fuel gas | Electric |
| Operator type: hand, pedestrian, standing, seated, order-picker | Order-picker |
| Rated capacity/rated load (Q(kg)) | 1000 |
| Load centre distance (c(mm)) | 700 |
| Load distance, centre of drive axle to fork (x(mm)) | 515 |
| Wheelbase (y(mm)) | 1669 |
| Service weight (kg) | 1232 |
| Axle loading, laden front/rear (kg) | 764/1468 |
| Axle loading, unladen front/rear (kg) | 875/358 |
| Tyres: solid rubber, super elastic, pneumatic, polyurethane | Polyurethane |
| Tyre size, front | Φ250 x 80 |
| Tyre size, rear | Φ80x84 |
| Additional wheels (dimensions) | Φ150x60 |
| Wheels, number front/rear (x = driven wheels) | 1x+1/4 |
| Tread, front (b10(mm)) | 502 |
| Tread, rear (b11(mm)) | 405 |
| Height, mast lowered (h1(mm)) | 1275 |
| Lift (h3(mm)) | 1140 |
| Height, mast extended (h4(mm)) | 2335 |
| Seat height relating to SIP/stand height (h7(mm)) | 140 |
| Height drawbar in driving position min./max. (h14(mm)) | 1085 |
| Stand height elevated (h12(mm)) | 1200 |
| Height, lowered (h13(mm)) | 90 |
| Overall length (l1(mm)) | 2886 |
| Length to face of forks (l2(mm)) | 1386 |
| Overall width (b1/b2(mm)) | 812 |
| Fork dimensions DIN ISO 2331 (s/e/l(mm)) | 60/180/1500 |
| Fork spread (b5(mm)) | 580 |
| Ground clearance, centre of wheelbase (m2(mm)) | 31 |
| Aisle width for pallets 1000 x 1200 crossways (Ast(mm)) | 3108 |
| Aisle width for pallets 800 x 1200 lengthways (Ast(mm)) | 3108 |
| Turning radius (Wa(mm)) | 1901 |
| Travel speed, laden/unladen (km/h) | 7/7.1 |
| Travel speed, laden/unladen, backwards (km/h) | 7/7.1 |
| Lift speed, laden/unladen (m/s) | 0.1/0.15 |
| Lowering speed, laden/unladen (m/s) | 0.08/0.07 |
| Max. gradeability, laden/unladen (%) | 8/15 |
| Service brake | Electromagnetic |
| Drive motor rating S2 60 min (kW) | 1.5 |
| Sektor Operasional Ideal | Pusat E-Commerce, Gudang Suku Cadang, Distribusi Ritel, Farmasi & Fulfillment Center |
| Kepatuhan K3 & Sertifikasi | Standar CE / ISO9001 / ISO14001 & Siap Riksa Uji SILO K3 Kemnaker RI |
| Cakupan Garansi Resmi | Garansi Resmi Unit & Komponen Utama Standar Xilin |
| Dealer, PDI & Layanan Purna Jual | PT. Cemerlang Perkasa Teknologi (Central Workshop Cakung & Layanan Nasional 38 Provinsi) |
Garansi & Layanan Purna Jual Resmi Xilin
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Garansi & Layanan Purna Jual Resmi Xilin
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Garansi Resmi Standar Pabrikan
Perlindungan garansi resmi standar Xilin (Ningbo Ruyi Joint Stock Co., Ltd) dan sertifikat Pre-Delivery Inspection (PDI) 48 titik untuk setiap pengadaan unit baru.
10.000+ SKU Suku Cadang Asli Cakung
Ketersediaan suku cadang orisinal (Genuine Parts) lengkap di gudang utama Central Cakung Jakarta Utara untuk menjamin minimum downtime operasional Anda.
Mobile Service Siaga 24/7
Tim teknisi mekanik bersertifikasi siap melakukan perawatan preventif berkala maupun perbaikan darurat langsung di lokasi gudang atau pabrik Anda.
Sertifikasi K3 & Uji SILO
Dukungan pengurusan sertifikasi kelayakan alat (SILO / K3 Kemnaker) resmi serta pelatihan pengoperasian dan perawatan harian bagi operator.
