Lithium-Ion
Xilin OPS15
Xilin Order Picker • Xilin (Ningbo Ruyi Joint Stock Co., Ltd)
Kapasitas Utama
1.500 kg (1.5 Ton)
Titik Beban / Tinggi Angkat
600 mm / 5000/7000/9000/9500 mm
Tipe Daya / Penggerak
Lithium-Ion
Pabrikan Resmi
Ningbo Ruyi (Xilin)

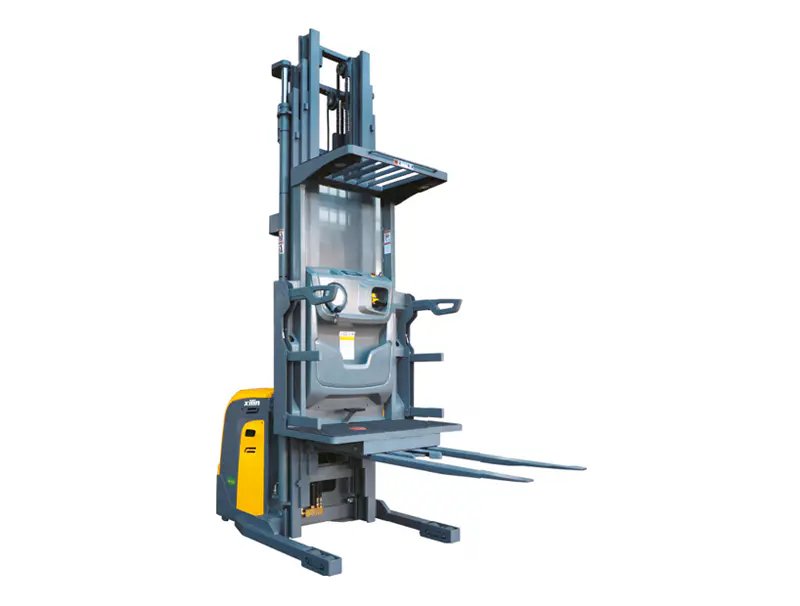

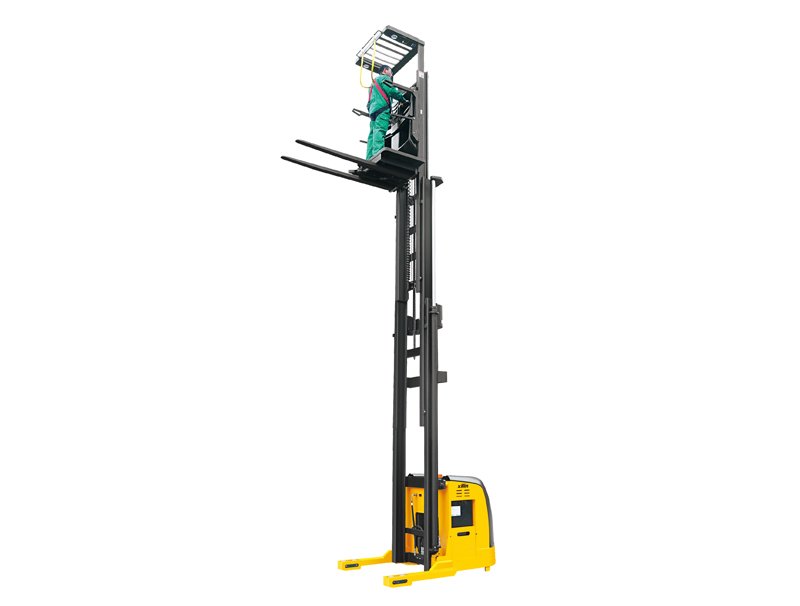

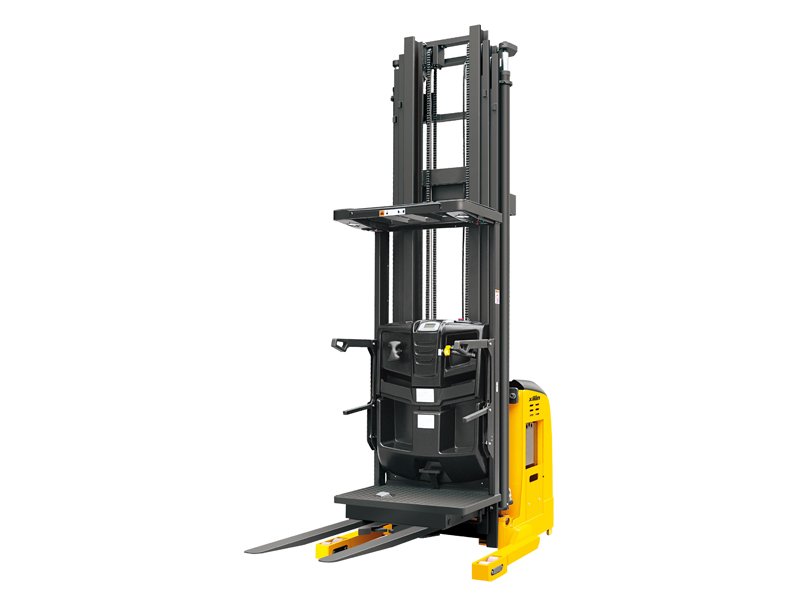

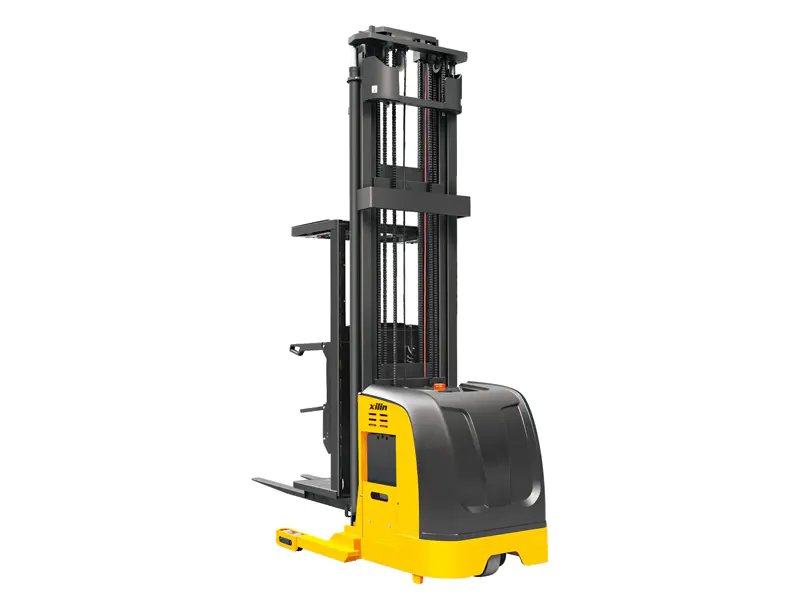

Unit Xilin OPS15 Electric High Level Order Picker (1.500 kg) merupakan model andalan pada kategori Xilin Order Picker dari Xilin yang dirancang untuk memberikan performa angkat optimal (1.500 kg (1.5 Ton)), stabilitas kerja tinggi, serta efisiensi operasional terbaik. Didukung penuh oleh garansi resmi, ketersediaan suku cadang asli di Central Workshop Cakung, serta layanan teknisi mekanik keliling dari PT. Cemerlang Perkasa Teknologi di seluruh 38 provinsi Indonesia.
Unit Baru 100% Original Xilin & Siap Operasional
Kualitas Global Ningbo Ruyi Joint Stock Co., Ltd
10.000+ SKU Suku Cadang Asli Cakung & Teknisi 24/7
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit Xilin OPS15
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit Xilin OPS15
Karakteristik Rancang Bangun & Keunggulan Konstruksi Xilin (Xilin OPS15):
Electric high level order picker provides safety and high efficiency order picking for high racked warehouse. Max. lift height: 11000mm Diproduksi sesuai standar global Xilin (Ningbo Ruyi Joint Stock Co., Ltd), unit Xilin OPS15 Electric High Level Order Picker (1.500 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori Xilin Order Picker, sistem penggerak Lithium-Ion (Li-Ion) Battery (24V/500Ah,24V/750Ah) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Electric high level order picker provides safety and high efficiency order picking for high racked warehouse. Max. lift height: 11000mm Diproduksi sesuai standar global Xilin (Ningbo Ruyi Joint Stock Co., Ltd), unit Xilin OPS15 Electric High Level Order Picker (1.500 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori Xilin Order Picker, sistem penggerak Lithium-Ion (Li-Ion) Battery (24V/500Ah,24V/750Ah) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Keunggulan Rancang Bangun & Performa
- Keunggulan Xilin OPS15 #1: Low gravity centre provides good stability.
- Keunggulan Xilin OPS15 #2: Advanced electric steering technology(EPS) is humanized designed, with automatic reset , height display and automatic deceleration at high lifting level.
- Keunggulan Xilin OPS15 #3: Finger tip control via joystick, Stepless speed control for driving, lifting and lowering speed is adjustable.
- Keunggulan Xilin OPS15 #4: Buffer oil cylinder: the oil cylinder will automatic decelerate when off ground 500mm, to prevent impact and lower noises.
Aplikasi & Sektor Industri Ideal
Unit Xilin OPS15 Electric High Level Order Picker (1.500 kg) pada kategori Xilin Order Picker sangat ideal untuk mendukung operasional Pusat E-Commerce, Gudang Suku Cadang, Distribusi Ritel, Farmasi & Fulfillment Center di berbagai kawasan industri, pergudangan, dan pusat logistik di seluruh Indonesia.
Fitur & Keunggulan Utama (Xilin OPS15)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar Xilin
Fitur & Keunggulan Utama (Xilin OPS15)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar Xilin
Fitur Unggulan Xilin OPS15 #1: Low gravity centre provides good stability.
Fitur Unggulan Xilin OPS15 #2: Advanced electric steering technology(EPS) is humanized designed, with automatic reset , height display and automatic deceleration at high lifting level.
Fitur Unggulan Xilin OPS15 #3: Finger tip control via joystick, Stepless speed control for driving, lifting and lowering speed is adjustable.
Fitur Unggulan Xilin OPS15 #4: Buffer oil cylinder: the oil cylinder will automatic decelerate when off ground 500mm, to prevent impact and lower noises.
Fitur Unggulan Xilin OPS15 #5: The mast and the frame are dividable and exchangeable.
Fitur Unggulan Xilin OPS15 #6: Low battery protection setting prolongs the battery use time.
Fitur Unggulan Xilin OPS15 #7: AC motor eliminates replacement of the carbon brush, provides good ramp starting performance and regenerative breaking functions.
Fitur Unggulan Xilin OPS15 #8: Sideway battery is convenient for exchanging and maintain.

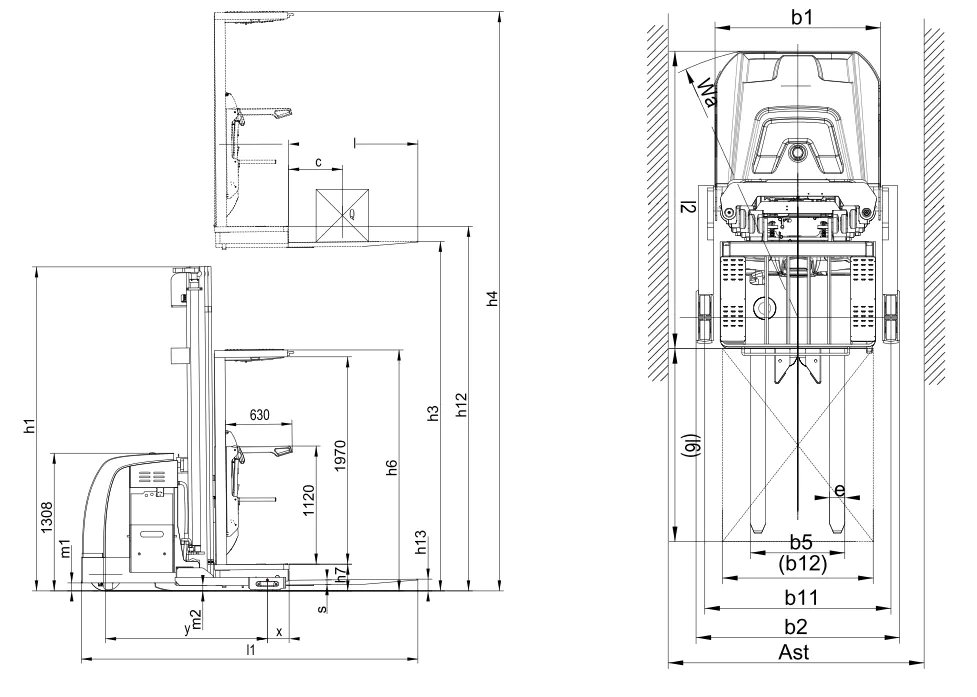

Parameter Teknis & Spesifikasi Lengkap (Xilin OPS15)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
Parameter Teknis & Spesifikasi Lengkap (Xilin OPS15)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
| Parameter Teknis | Nilai Spesifikasi |
|---|---|
| Merek / Brand | Xilin |
| Pabrikan (Manufacturer) | Ningbo Ruyi Joint Stock Co., Ltd |
| Designasi Kode Model | Xilin OPS15 |
| Tipe Unit | Electric High Level Order Picker |
| Kategori Alat | Xilin Order Picker |
| Kapasitas Beban Utama (Load Capacity) | 1.500 kg (1.5 Ton) |
| Titik Beban (Load Centre) | 600 mm |
| Tinggi Angkat (Lift Height) | 5000/7000/9000/9500 mm |
| Sistem Penggerak / Power Source | Lithium-Ion (Li-Ion) Battery (24V/500Ah,24V/750Ah) |
| Spesifikasi Baterai Lithium-Ion (Li-Ion) | 24V/500Ah,24V/750Ah (Fast Charging & Maintenance-Free) |
| Manufacturer's type designation | OPS15 |
| Drive: electric (battery type, mains,…diesel, petrol, fuel gas | Electric |
| Operator type: hand, pedestrian, standing, seated, order-picker | Order-picker |
| Rated capacity/rated load (Q(kg)) | 1500 |
| Load centre distance (c(mm)) | 600 |
| Load distance, centre of drive axle to fork (x(mm)) | 206 |
| Wheelbase (y(mm)) | 1537 |
| Service weight (kg) | 3360/3650/3870 |
| Axle loading, laden front/rear (kg) | 4320/1360 |
| Axle loading, unladen front/rear (kg) | 1960/2220 |
| Tyres: solid rubber, super elastic. pneumatic, polyurethane | Polyurethane |
| Tyre size, front | Φ310x125 |
| Tyre size, rear | Φ128x73 |
| Additional wheels (dimensions) | Φ150x47 |
| Wheels, number front/rear (x = driven wheels) | 1x+2/4 |
| Tread, rear (b11(mm)) | 1236 |
| Height mast lowered (h1(mm)) | 2410/3080/3750/3920 |
| Lift (h3(mm)) | 5000/7000/9000/9500 |
| Height mast extended (h4(mm)) | 7230/9230/11230/11740 |
| Height of overhead guard (cabin) (h6(mm)) | 2290 |
| Seat height relating to SIP/stand height (h7(mm)) | 230 |
| Height lowered (h13(mm)) | 80 |
| Overall length (l1(mm)) | 3200 |
| Length to face of forks (l2(mm)) | 1975 |
| Overall width (b1/b2(mm)) | 1100/1352 |
| Fork dimensions DIN ISO 2331 (s/e/l(mm)) | 45/100/1220 |
| Fork spread (b5(mm)) | 530/715 |
| Ground clearance, centre of wheelbase (m2(mm)) | 76 |
| Aisle width for pallets 1000 x 1200 crossways (Ast(mm)) | 1550 |
| Aisle width for pallets 800 x 1200 lengthways (Ast(mm)) | 1550 |
| Turning radius (Wa (mm)) | 1775 |
| Travel speed, laden/unladen (km/h) | 7.7/8 |
| Travel speed, laden/unladen, backwards (km/h) | 7.7/8 |
| Lift speed, laden/unladen (m/s) | 0-0.15/0-0.28 |
| Lowering speed, laden/unladen (m/s) | 0-0.28/0-0.3 |
| Max gradeability, laden/unladen (%) | 5/10 |
| Service brake | Electromagnetic |
| Drive motor rating S2 60 min (kW) | 4.5 |
| Lift motor rating at S315% (kW) | 7.5(DC)/10(AC) |
| Battery voltage/nominal capacity K5 ((V)/(Ah) or kWh) | 24/770(h3=5000/7000), 24/1100(h3=9000) |
| Sektor Operasional Ideal | Pusat E-Commerce, Gudang Suku Cadang, Distribusi Ritel, Farmasi & Fulfillment Center |
| Kepatuhan K3 & Sertifikasi | Standar CE / ISO9001 / ISO14001 & Siap Riksa Uji SILO K3 Kemnaker RI |
| Cakupan Garansi Resmi | Garansi Resmi Unit & Komponen Utama Standar Xilin |
| Dealer, PDI & Layanan Purna Jual | PT. Cemerlang Perkasa Teknologi (Central Workshop Cakung & Layanan Nasional 38 Provinsi) |
