Electric
Xilin CBD20S
Xilin Electric Pallet Truck • Xilin (Ningbo Ruyi Joint Stock Co., Ltd)
Kapasitas Utama
2.000 kg (2.0 Ton)
Titik Beban / Tinggi Angkat
600 mm / 1600/2000/2500 mm
Tipe Daya / Penggerak
Electric
Pabrikan Resmi
Ningbo Ruyi (Xilin)
Unit Xilin CBD20S Double Decker Pallet Truck (2.000 kg) merupakan model andalan pada kategori Xilin Electric Pallet Truck dari Xilin yang dirancang untuk memberikan performa angkat optimal (2.000 kg (2.0 Ton)), stabilitas kerja tinggi, serta efisiensi operasional terbaik. Didukung penuh oleh garansi resmi, ketersediaan suku cadang asli di Central Workshop Cakung, serta layanan teknisi mekanik keliling dari PT. Cemerlang Perkasa Teknologi di seluruh 38 provinsi Indonesia.
Unit Baru 100% Original Xilin & Siap Operasional
Kualitas Global Ningbo Ruyi Joint Stock Co., Ltd
10.000+ SKU Suku Cadang Asli Cakung & Teknisi 24/7
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit Xilin CBD20S
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit Xilin CBD20S
Karakteristik Rancang Bangun & Keunggulan Konstruksi Xilin (Xilin CBD20S):
The CBD20S, with small turning radius and lowest height (1.08~1.38m), offers Double pallet Initial lifting, with Initial lift have 120mm lift to easily negotiate over ramps and bridging plates as well as the ability to transport a 2000kg load, widely used in low shelves warehouse and small supermarket etc. Diproduksi sesuai standar global Xilin (Ningbo Ruyi Joint Stock Co., Ltd), unit Xilin CBD20S Double Decker Pallet Truck (2.000 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori Xilin Electric Pallet Truck, sistem penggerak Electric Industrial Battery (24/210) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
The CBD20S, with small turning radius and lowest height (1.08~1.38m), offers Double pallet Initial lifting, with Initial lift have 120mm lift to easily negotiate over ramps and bridging plates as well as the ability to transport a 2000kg load, widely used in low shelves warehouse and small supermarket etc. Diproduksi sesuai standar global Xilin (Ningbo Ruyi Joint Stock Co., Ltd), unit Xilin CBD20S Double Decker Pallet Truck (2.000 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori Xilin Electric Pallet Truck, sistem penggerak Electric Industrial Battery (24/210) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Keunggulan Rancang Bangun & Performa
- Keunggulan Xilin CBD20S #1: SAFETY AND EFFICIENCY:
- Keunggulan Xilin CBD20S #2: Carry two pallets at one single time. ● The tiller head is equipped with an emergency reverse direction switch, which provides safer operation. ● Built-in pressure relief valve protects the truck from overload, and increases the truck's safety. ● Stepless speed control and turtle speed switch.
- Keunggulan Xilin CBD20S #3: STRUCTURAL: ● Vertical driving wheel offers small turning radius. ● Dividable and exchangeable mast. ● Adjustable floating balance wheel is resistant to wear and stable. ● Sliding rail connects the moving part of the front and rear, makes lifting and lowering stable.
- Keunggulan Xilin CBD20S #4: EASY MAINTENANCE: ● Hall-effect throttle control eliminates ware components and prolongs its use time. ● The balance wheel is detachable, convenient to maintain. ● Integral and modularized electrical system makes the maintenance of the electrical parts convenient.
Aplikasi & Sektor Industri Ideal
Unit Xilin CBD20S Double Decker Pallet Truck (2.000 kg) pada kategori Xilin Electric Pallet Truck sangat ideal untuk mendukung operasional Pergudangan Modern, Pusat Distribusi, E-Commerce, Supermarket, Retail & Logistik 3PL di berbagai kawasan industri, pergudangan, dan pusat logistik di seluruh Indonesia.
Fitur & Keunggulan Utama (Xilin CBD20S)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar Xilin
Fitur & Keunggulan Utama (Xilin CBD20S)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar Xilin
Fitur Unggulan Xilin CBD20S #1: SAFETY AND EFFICIENCY:
Fitur Unggulan Xilin CBD20S #2: Carry two pallets at one single time. ● The tiller head is equipped with an emergency reverse direction switch, which provides safer operation. ● Built-in pressure relief valve protects the truck from overload, and increases the truck's safety. ● Stepless speed control and turtle speed switch.
Fitur Unggulan Xilin CBD20S #3: STRUCTURAL: ● Vertical driving wheel offers small turning radius. ● Dividable and exchangeable mast. ● Adjustable floating balance wheel is resistant to wear and stable. ● Sliding rail connects the moving part of the front and rear, makes lifting and lowering stable.
Fitur Unggulan Xilin CBD20S #4: EASY MAINTENANCE: ● Hall-effect throttle control eliminates ware components and prolongs its use time. ● The balance wheel is detachable, convenient to maintain. ● Integral and modularized electrical system makes the maintenance of the electrical parts convenient.
Fitur Unggulan Xilin CBD20S #5: Struktur sasis baja berkekuatan tinggi standar Xilin (Ningbo Ruyi Joint Stock Co., Ltd) untuk daya tahan operasional jangka panjang pada beban 2.000 kg (2.0 Ton).
Fitur Unggulan Xilin CBD20S #6: Sistem penggerak & hidrolik presisi (Electric Industrial Battery (24/210)) yang memberikan respons halus, efisiensi energi optimal, dan perawatan harian yang mudah.
Fitur Unggulan Xilin CBD20S #7: Desain ergonomis dengan radius putar kompak untuk manuver aman dan produktif di lorong gudang maupun area produksi industri.
Fitur Unggulan Xilin CBD20S #8: Dukungan penuh garansi resmi, ketersediaan suku cadang asli di Central Workshop Cakung, serta layanan teknisi mekanik keliling di 38 provinsi Indonesia.

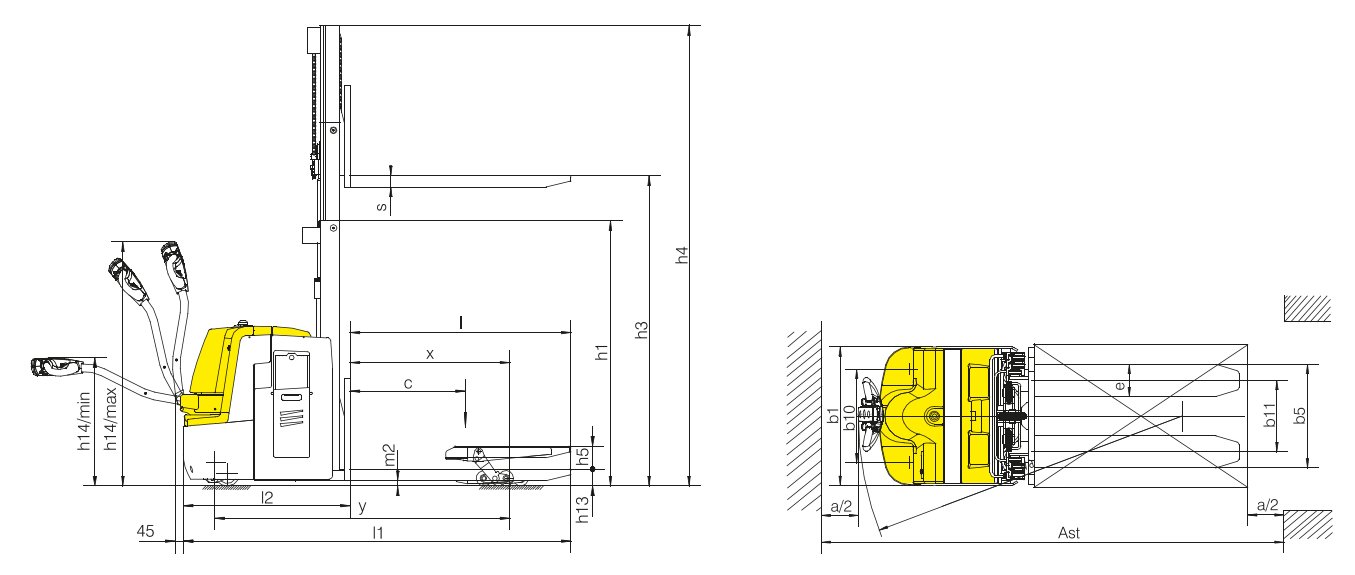

Parameter Teknis & Spesifikasi Lengkap (Xilin CBD20S)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
Parameter Teknis & Spesifikasi Lengkap (Xilin CBD20S)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
| Parameter Teknis | Nilai Spesifikasi |
|---|---|
| Merek / Brand | Xilin |
| Pabrikan (Manufacturer) | Ningbo Ruyi Joint Stock Co., Ltd |
| Designasi Kode Model | Xilin CBD20S |
| Tipe Unit | Double Decker Pallet Truck |
| Kategori Alat | Xilin Electric Pallet Truck |
| Kapasitas Beban Utama (Load Capacity) | 2.000 kg (2.0 Ton) |
| Titik Beban (Load Centre) | 600 mm |
| Tinggi Angkat (Lift Height) | 1600/2000/2500 mm |
| Sistem Penggerak / Power Source | Electric Industrial Battery (24/210) |
| Model | CBD20S |
| Drive: electric (battery type, mains, ...), diesel, petrol, fuel gas | Electric |
| Operator type: hand, pedestrian, standing, seated, order-picker | Pedestrian |
| Rated capacity/rated load (Q(kg)) | 2000 |
| Rated capacity/rated load with mast lift (Q(kg)) | 1000 |
| Rated capacity/rated load with wheel arm lift (Q(kg)) | 2000 |
| Load centre distance (c(mm)) | 600 |
| Load distance, centre of drive axle to fork (x(mm)) | 831 |
| Wheelbase (y(mm)) | 1535 |
| Service weight (kg) | 950 |
| Axle loading, laden front/rear (kg) | 1180/1770 |
| Axle loading, unladen front/rear (kg) | 650/300 |
| Tyres: solid rubber, super elastic, pneumatic, polyurethane | Polyurethane (PU) |
| Tyre size, front (mm) | Φ250x70 |
| Tyre size, rear (mm) | Φ80x70 |
| Additional wheels (dimensions) (mm) | Φ127x57 |
| Wheels, number front/rear (x = driven wheels) | 1X+2/4 |
| Tread, front (b10(mm)) | 541 |
| Tread, rear (b1 (mm)) | 400/470 |
| Max. lift height (h3(mm)) | 1600/2000/2500 |
| Initial lift (h5(mm)) | 120 |
| Height drawbar in driving position min./max. (h14(mm)) | 530/1230 |
| Height, lowered (h13(mm)) | 90 |
| Height, mast lowered (h1(mm)) | 1082/1212/1382 |
| Height, mast extended (h4(mm)) | 2118/2508/3018 |
| Overall length (l1(mm)) | 1962 |
| Length to face of forks (l2(mm)) | 862 |
| Overall width (b1/b2(mm)) | 775 |
| Fork dimensions DIN ISO 2331 (s/e/l(mm)) | 60/180/1100 |
| Fork spread (b5(mm)) | 570/650 |
| Ground clearance, centre of wheelbase (m2(mm)) | 20 |
| Aisle width for pallets 1000 x 1200 crossways (Ast(mm)) | 2528 |
| Aisle width for pallets 800 x 1200 lengthways (Ast(mm)) | 2449 |
| Turning radius (Wa(mm)) | 1705 |
| Travel speed, laden/unladen (km/h) | 5.5/5.6 |
| Lift speed, laden/unladen (m/s) | 0.03/0.04 |
| Lowering speed, laden/unladen (m/s) | 0.05/0.045 |
| Max. gradeability. laden/unladen (%) | 6/12 |
| Service brake | Electromagnetic |
| Drive motor rating S2 60 min (kW) | 1.2 |
| Sektor Operasional Ideal | Pergudangan Modern, Pusat Distribusi, E-Commerce, Supermarket, Retail & Logistik 3PL |
| Kepatuhan K3 & Sertifikasi | Standar CE / ISO9001 / ISO14001 & Siap Riksa Uji SILO K3 Kemnaker RI |
| Cakupan Garansi Resmi | Garansi Resmi Unit & Komponen Utama Standar Xilin |
| Dealer, PDI & Layanan Purna Jual | PT. Cemerlang Perkasa Teknologi (Central Workshop Cakung & Layanan Nasional 38 Provinsi) |
Garansi & Layanan Purna Jual Resmi Xilin
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Garansi & Layanan Purna Jual Resmi Xilin
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Garansi Resmi Standar Pabrikan
Perlindungan garansi resmi standar Xilin (Ningbo Ruyi Joint Stock Co., Ltd) dan sertifikat Pre-Delivery Inspection (PDI) 48 titik untuk setiap pengadaan unit baru.
10.000+ SKU Suku Cadang Asli Cakung
Ketersediaan suku cadang orisinal (Genuine Parts) lengkap di gudang utama Central Cakung Jakarta Utara untuk menjamin minimum downtime operasional Anda.
Mobile Service Siaga 24/7
Tim teknisi mekanik bersertifikasi siap melakukan perawatan preventif berkala maupun perbaikan darurat langsung di lokasi gudang atau pabrik Anda.
Sertifikasi K3 & Uji SILO
Dukungan pengurusan sertifikasi kelayakan alat (SILO / K3 Kemnaker) resmi serta pelatihan pengoperasian dan perawatan harian bagi operator.
