LPG (Stage V Low-Emission)
TCM FGE30-E3
TCM LPG Counterbalance Forklifts • Toyo Carriers Manufacturing Co., Ltd.
Kapasitas Utama
3.000 kg (3.0 Ton)
Titik Beban / Tinggi Angkat
500 mm / 3.000 – 7.000 mm
Tipe Daya / Penggerak
LPG (Stage V Low-Emission)
Pabrikan Resmi
Toyo Carriers Mfg. (TCM)
Unit TCM FGE30-E3 Stage V LPG Gas Counterbalance Forklift (3.000 kg) merupakan model andalan pada kategori TCM LPG Counterbalance Forklifts dari TCM (Toyo Carriers Manufacturing Co., Ltd.) yang dirancang untuk memberikan performa angkat optimal (3.000 kg (3.0 Ton)), stabilitas kerja tinggi, serta efisiensi operasional terbaik. Didukung penuh oleh garansi resmi, ketersediaan suku cadang asli di Central Workshop Cakung, serta layanan teknisi mekanik keliling dari PT. Cemerlang Perkasa Teknologi di seluruh 38 provinsi Indonesia.
Unit Baru 100% Original TCM & Siap Operasional
Kualitas Global Toyo Carriers Manufacturing Co., Ltd.
10.000+ SKU Suku Cadang Asli Cakung & Teknisi 24/7
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit TCM FGE30-E3
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit TCM FGE30-E3
Karakteristik Rancang Bangun & Keunggulan Konstruksi TCM (TCM FGE30-E3):
Diesel Counterbalance Forklifts FD / FGE 1.5 - 3.5 tonnes Diesel & LPG Counterbalance Forklift Engine 47kW Power 3.5t Max Cap Stage V Compliant Diesel & LPG Forklift . The new series represents a major technological leap for our workhorse counterbalance range. Designed and produced in Europe, these trucks combine robust mechanical power with sophisticated digital control to drive your productivity while meeting the strictest Stage V emission standards. The FD/FGE 15–35's compact, precision-engineered design opens up areas inaccessible to larger counterbalance trucks. Narrow aisles and congested zones are easily navigated — without sacrificing lifting capability or speed. Diproduksi sesuai standar global TCM (Toyo Carriers Manufacturing Co., Ltd.), unit TCM FGE30-E3 Stage V LPG Gas Counterbalance Forklift (3.000 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori TCM LPG Counterbalance Forklifts, sistem penggerak LPG Industrial Engine 47.0 kW (EU Stage V Compliant, Swing-Down LP Bracket) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Diesel Counterbalance Forklifts FD / FGE 1.5 - 3.5 tonnes Diesel & LPG Counterbalance Forklift Engine 47kW Power 3.5t Max Cap Stage V Compliant Diesel & LPG Forklift . The new series represents a major technological leap for our workhorse counterbalance range. Designed and produced in Europe, these trucks combine robust mechanical power with sophisticated digital control to drive your productivity while meeting the strictest Stage V emission standards. The FD/FGE 15–35's compact, precision-engineered design opens up areas inaccessible to larger counterbalance trucks. Narrow aisles and congested zones are easily navigated — without sacrificing lifting capability or speed. Diproduksi sesuai standar global TCM (Toyo Carriers Manufacturing Co., Ltd.), unit TCM FGE30-E3 Stage V LPG Gas Counterbalance Forklift (3.000 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori TCM LPG Counterbalance Forklifts, sistem penggerak LPG Industrial Engine 47.0 kW (EU Stage V Compliant, Swing-Down LP Bracket) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Keunggulan Rancang Bangun & Performa
- Keunggulan TCM FGE30-E3 #1: The FD/FGE 15–35's compact, precision-engineered design opens up areas inaccessible to larger counterbalance trucks. Narrow aisles and congested zones are easily navigated — without sacrificing lifting capability or speed.
- Keunggulan TCM FGE30-E3 #2: Stage V ready, built for the future. Our E3 generation complies with European Stage V emissions regulations from the ground up. LPG variants produce around 80% less NO₂ than diesel, making this the ideal choice for operations with environmental targets — without increasing running costs.
- Keunggulan TCM FGE30-E3 #3: FD/FGE 15-35 1.5 - 3.5 Tonnes Diesel & LPG Counterbalance Forklift Load Capacity 1,500kg to 3,500kg Load Centre 500mm Truck Length 2,260mm-2,735mm Travel Speed with and without load 18/19.5km/h Turning Radius 1,980mm - 2,440mm Truck Width 1,065mm- 1,290mm Specifications. Model Kg Capacity mm Load centre kW Power mm Length mm Width mm Turning radius km/h Travel speed with / without load FGE15-E3 1500 500 41.0 2260 1065 1980 19,0/19,5 FGE18-E3 1750 500 41.0 2300 1065 2000 19,0/19,5 FGE20C-E3 2000 500 43.0 2355 1065 2020 19,0/19,5 FD20-E3 2000 500 36 2485 1150 2200 18.5 / 19.0 FGE20-E3 2000 500 43.0 2485 1150 2200 18.5 / 19.0 FD25-E3 2500 500 36 2500 1150 2230 18.5 / 19.0 FGE25-E3 2500 500 43.0 2500 1150 2230 18.5 / 19.0 FD30-E3 3000 500 36 2735 1275 2380 18.0 / 18.5 FD35-E3 3500 500 36 2795 1290 2440 18.5 / 19.0 FGE35-E3 3500 500 47.0 2795 1290 2440 18.0 / 18.5 FGE30-E3 3000 500 47.0 2735 1275 2380 18.5 / 19.0 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. Additional Capabilities Include: FD/FGE 15-35 Comfort feature // Grammer MSG65 seat available in vinyl, cloth or heated variants, with adjustable forward and back movement and side lumbar support. // Grammer MSG75 full air suspension seat available in cloth or vinyl, for enhanced comfort across long shifts. // Tilt steering column with memory position, so every operator can personalise their driving position instantly. // Anti-cinch high visibility orange seatbelt as standard across all models. The advanced safety features and customisable options are designed to keep operators confident, alert and protected throughout the workday. The Operator Presence System (OPS) provides audible and visual reminders to support maximum situational awareness.

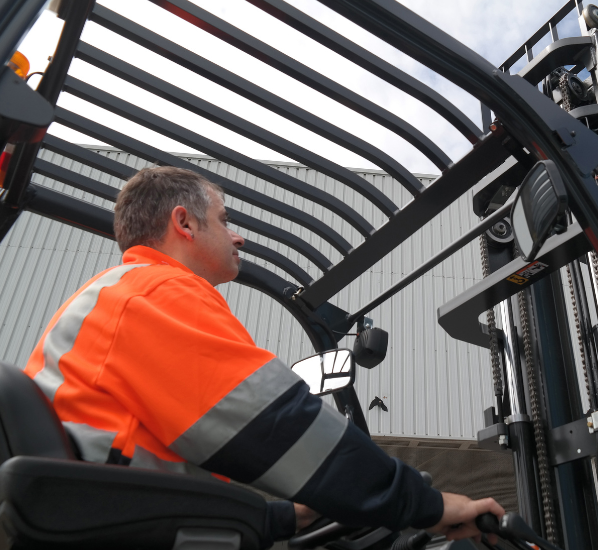

- Keunggulan TCM FGE30-E3 #4: Additional safety features include a rear grab bar with horn button, ground speed control, rear work light, rear blue light, strobe and alarm packages, and a thermoformed overhead guard cover. LPG models also benefit from a swing-down LP tank bracket for safe, easy cylinder changes.
Aplikasi & Sektor Industri Ideal

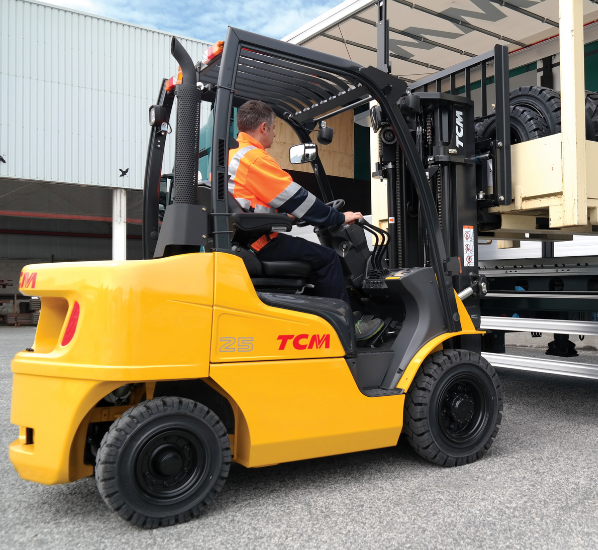

Unit TCM FGE30-E3 Stage V LPG Gas Counterbalance Forklift (3.000 kg) pada kategori TCM LPG Counterbalance Forklifts sangat ideal untuk mendukung operasional Gudang Semi-Outdoor, Manufaktur Industri, Pusat Distribusi, Bongkar Muat Truk & Logistik Rendah Emisi di berbagai kawasan industri, pergudangan, dan pusat logistik di seluruh Indonesia.
Fitur & Keunggulan Utama (TCM FGE30-E3)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar TCM
Fitur & Keunggulan Utama (TCM FGE30-E3)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar TCM
Fitur Unggulan TCM FGE30-E3 #1: The FD/FGE 15–35's compact, precision-engineered design opens up areas inaccessible to larger counterbalance trucks. Narrow aisles and congested zones are easily navigated — without sacrificing lifting capability or speed.
Fitur Unggulan TCM FGE30-E3 #2: Stage V ready, built for the future. Our E3 generation complies with European Stage V emissions regulations from the ground up. LPG variants produce around 80% less NO₂ than diesel, making this the ideal choice for operations with environmental targets — without increasing running costs.
Fitur Unggulan TCM FGE30-E3 #3: FD/FGE 15-35 1.5 - 3.5 Tonnes Diesel & LPG Counterbalance Forklift Load Capacity 1,500kg to 3,500kg Load Centre 500mm Truck Length 2,260mm-2,735mm Travel Speed with and without load 18/19.5km/h Turning Radius 1,980mm - 2,440mm Truck Width 1,065mm- 1,290mm Specifications. Model Kg Capacity mm Load centre kW Power mm Length mm Width mm Turning radius km/h Travel speed with / without load FGE15-E3 1500 500 41.0 2260 1065 1980 19,0/19,5 FGE18-E3 1750 500 41.0 2300 1065 2000 19,0/19,5 FGE20C-E3 2000 500 43.0 2355 1065 2020 19,0/19,5 FD20-E3 2000 500 36 2485 1150 2200 18.5 / 19.0 FGE20-E3 2000 500 43.0 2485 1150 2200 18.5 / 19.0 FD25-E3 2500 500 36 2500 1150 2230 18.5 / 19.0 FGE25-E3 2500 500 43.0 2500 1150 2230 18.5 / 19.0 FD30-E3 3000 500 36 2735 1275 2380 18.0 / 18.5 FD35-E3 3500 500 36 2795 1290 2440 18.5 / 19.0 FGE35-E3 3500 500 47.0 2795 1290 2440 18.0 / 18.5 FGE30-E3 3000 500 47.0 2735 1275 2380 18.5 / 19.0 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. Additional Capabilities Include: FD/FGE 15-35 Comfort feature // Grammer MSG65 seat available in vinyl, cloth or heated variants, with adjustable forward and back movement and side lumbar support. // Grammer MSG75 full air suspension seat available in cloth or vinyl, for enhanced comfort across long shifts. // Tilt steering column with memory position, so every operator can personalise their driving position instantly. // Anti-cinch high visibility orange seatbelt as standard across all models. The advanced safety features and customisable options are designed to keep operators confident, alert and protected throughout the workday. The Operator Presence System (OPS) provides audible and visual reminders to support maximum situational awareness.
Fitur Unggulan TCM FGE30-E3 #4: Additional safety features include a rear grab bar with horn button, ground speed control, rear work light, rear blue light, strobe and alarm packages, and a thermoformed overhead guard cover. LPG models also benefit from a swing-down LP tank bracket for safe, easy cylinder changes.
Fitur Unggulan TCM FGE30-E3 #5: Struktur sasis baja berkekuatan tinggi standar TCM (Toyo Carriers Manufacturing Co., Ltd.) untuk daya tahan operasional jangka panjang pada beban 3.000 kg (3.0 Ton).
Fitur Unggulan TCM FGE30-E3 #6: Sistem penggerak & hidrolik presisi (LPG Industrial Engine 47.0 kW (EU Stage V Compliant, Swing-Down LP Bracket)) yang memberikan respons halus, efisiensi energi optimal, dan Total Cost of Ownership (TCO) rendah.

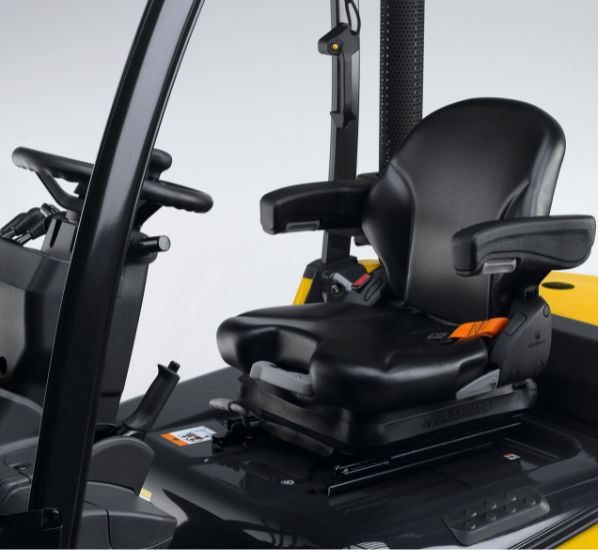

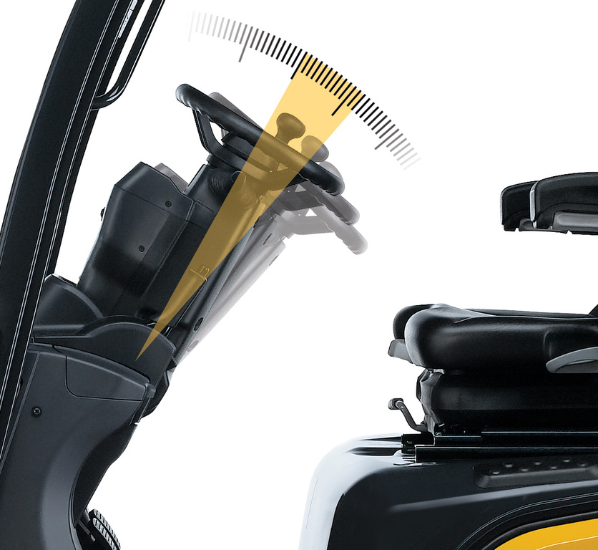

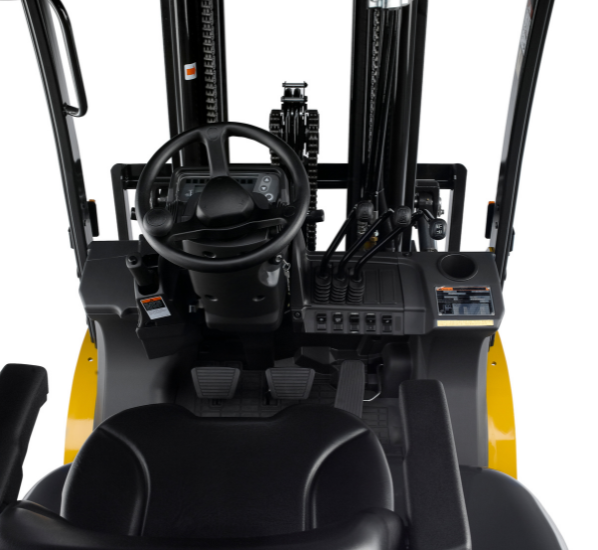

Fitur Unggulan TCM FGE30-E3 #7: Desain ergonomis berorientasi operator dengan visibilitas luas dan radius putar kompak untuk manuver aman di lorong gudang maupun kawasan industri.
Fitur Unggulan TCM FGE30-E3 #8: Dukungan penuh garansi resmi, ketersediaan suku cadang asli di Central Workshop Cakung, serta layanan teknisi mekanik keliling di 38 provinsi Indonesia.
Parameter Teknis & Spesifikasi Lengkap (TCM FGE30-E3)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
Parameter Teknis & Spesifikasi Lengkap (TCM FGE30-E3)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
| Parameter Teknis | Nilai Spesifikasi |
|---|---|
| Merek / Brand | TCM |
| Pabrikan (Manufacturer) | Toyo Carriers Manufacturing Co., Ltd. |
| Designasi Kode Model | TCM FGE30-E3 |
| Tipe Unit | Stage V LPG Gas Counterbalance Forklift |
| Kategori Alat | TCM LPG Counterbalance Forklifts |
| Kapasitas Beban Utama (Load Capacity) | 3.000 kg (3.0 Ton) |
| Titik Beban (Load Centre) | 500 mm |
| Tinggi Angkat (Lift Height) | 3.000 – 7.000 mm |
| Sistem Penggerak / Power Source | LPG Industrial Engine 47.0 kW (EU Stage V Compliant, Swing-Down LP Bracket) |
| Model Designation | FGE30-E3 |
| Powertrain / Fuel Type | LPG Gas Engine (European Stage V Compliant — 80% Lower NO2) |
| Engine Rated Power | 47.0 kW |
| Load Capacity (Q) | 3000 kg |
| Load Centre (c) | 500 mm |
| Length to Face of Forks (l2) | 2735 mm |
| Overall Width (b1) | 1275 mm |
| Turning Radius (Wa) | 2380 mm |
| Travel Speed (With / Without Load) | 18.5 / 19.0 km/h |
| LPG Cylinder System | Ergonomic Swing-Down LP Tank Bracket for Easy Cylinder Exchange |
| Sektor Operasional Ideal | Gudang Semi-Outdoor, Manufaktur Industri, Pusat Distribusi, Bongkar Muat Truk & Logistik Rendah Emisi |
| Kepatuhan K3 & Sertifikasi | Standar CE / EU Stage V / ISO9001 & Siap Riksa Uji SILO K3 Kemnaker RI |
| Cakupan Garansi Resmi | Garansi Resmi Unit & Komponen Utama Standar TCM |
| Dealer, PDI & Layanan Purna Jual | PT. Cemerlang Perkasa Teknologi (Central Workshop Cakung & Layanan Nasional 38 Provinsi) |
Garansi & Layanan Purna Jual Resmi TCM
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Garansi & Layanan Purna Jual Resmi TCM
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Garansi Resmi Standar Pabrikan
Perlindungan garansi resmi standar TCM (Toyo Carriers Manufacturing Co., Ltd.) dan sertifikat Pre-Delivery Inspection (PDI) 48 titik untuk setiap pengadaan unit baru.
10.000+ SKU Suku Cadang Asli Cakung
Ketersediaan suku cadang orisinal (Genuine Parts) lengkap di gudang utama Central Cakung Jakarta Utara untuk menjamin minimum downtime operasional Anda.
Mobile Service Siaga 24/7
Tim teknisi mekanik bersertifikasi siap melakukan perawatan preventif berkala maupun perbaikan darurat langsung di lokasi gudang atau pabrik Anda.
Sertifikasi K3 & Uji SILO
Dukungan pengurusan sertifikasi kelayakan alat (SILO / K3 Kemnaker) resmi serta pelatihan pengoperasian dan perawatan harian bagi operator.
