Electric 24V (Li-Ion / Lead-Acid)
TCM PTP/S 200
TCM Pallet Trucks • Toyo Carriers Manufacturing Co., Ltd.
Kapasitas Utama
2.000 kg (2.0 Ton)
Titik Beban / Tinggi Angkat
600 mm / 205 mm
Tipe Daya / Penggerak
Electric 24V (Li-Ion / Lead-Acid)
Pabrikan Resmi
Toyo Carriers Mfg. (TCM)

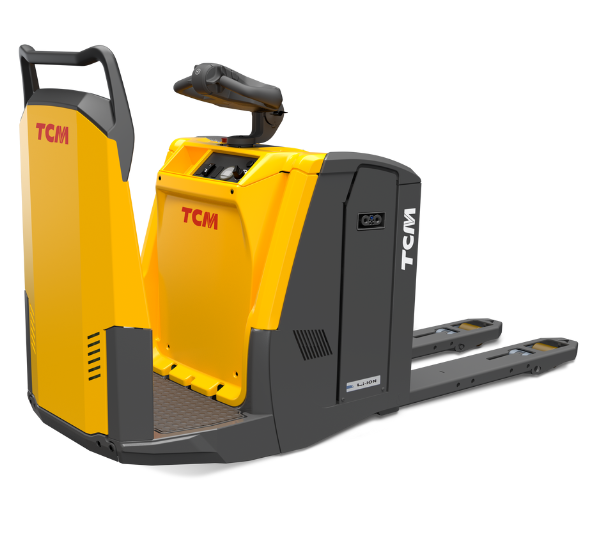

Unit TCM PTP/S 200 Power Pallet Truck with Side-Entry Fixed Platform (2.000 kg) merupakan model andalan pada kategori TCM Pallet Trucks dari TCM (Toyo Carriers Manufacturing Co., Ltd.) yang dirancang untuk memberikan performa angkat optimal (2.000 kg (2.0 Ton)), stabilitas kerja tinggi, serta efisiensi operasional terbaik. Didukung penuh oleh garansi resmi, ketersediaan suku cadang asli di Central Workshop Cakung, serta layanan teknisi mekanik keliling dari PT. Cemerlang Perkasa Teknologi di seluruh 38 provinsi Indonesia.
Unit Baru 100% Original TCM & Siap Operasional
Kualitas Global Toyo Carriers Manufacturing Co., Ltd.
10.000+ SKU Suku Cadang Asli Cakung & Teknisi 24/7
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit TCM PTP/S 200
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit TCM PTP/S 200
Karakteristik Rancang Bangun & Keunggulan Konstruksi TCM (TCM PTP/S 200):
Pallet Trucks PTP / S Pallet Truck With Side Entry Fixed Platform Li-ION 24v Voltage 2.5t Max Cap Productivity, safety & innovation . The PTP/S power pallet truck is perfectly suited to loading/unloading, order picking and short, medium and long internal transports. Equipped with a side-entry fixed platform, it's designed to maximise productivity, safety and driver comfort. It also offers best-in-class control. Truck Length 1,141mm-1,885mm Travel Speed with and without load 10km/h Turning Radius 2,059mm Truck Width 740mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load PTP/S 200 2000 600 24 1141 740 2059 10/10 PTP/S 250 2500 600 24 1885 740 2059 10/10 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. PTP-S Pallet truck Safety First. Diproduksi sesuai standar global TCM (Toyo Carriers Manufacturing Co., Ltd.), unit TCM PTP/S 200 Power Pallet Truck with Side-Entry Fixed Platform (2.000 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori TCM Pallet Trucks, sistem penggerak 24V AC Electric Drive with Patented TDS Traction System (Li-Ion Option) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Pallet Trucks PTP / S Pallet Truck With Side Entry Fixed Platform Li-ION 24v Voltage 2.5t Max Cap Productivity, safety & innovation . The PTP/S power pallet truck is perfectly suited to loading/unloading, order picking and short, medium and long internal transports. Equipped with a side-entry fixed platform, it's designed to maximise productivity, safety and driver comfort. It also offers best-in-class control. Truck Length 1,141mm-1,885mm Travel Speed with and without load 10km/h Turning Radius 2,059mm Truck Width 740mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load PTP/S 200 2000 600 24 1141 740 2059 10/10 PTP/S 250 2500 600 24 1885 740 2059 10/10 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. PTP-S Pallet truck Safety First. Diproduksi sesuai standar global TCM (Toyo Carriers Manufacturing Co., Ltd.), unit TCM PTP/S 200 Power Pallet Truck with Side-Entry Fixed Platform (2.000 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori TCM Pallet Trucks, sistem penggerak 24V AC Electric Drive with Patented TDS Traction System (Li-Ion Option) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Keunggulan Rancang Bangun & Performa
- Keunggulan TCM PTP/S 200 #1: Truck Length 1,141mm-1,885mm Travel Speed with and without load 10km/h Turning Radius 2,059mm Truck Width 740mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load PTP/S 200 2000 600 24 1141 740 2059 10/10 PTP/S 250 2500 600 24 1885 740 2059 10/10 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. PTP-S Pallet truck Safety First.

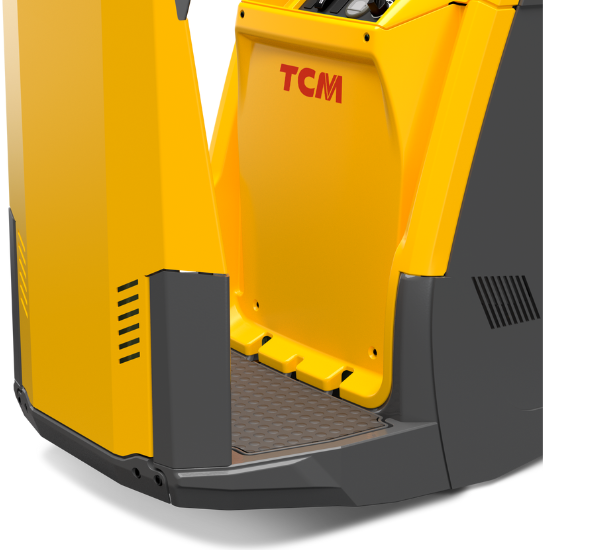

- Keunggulan TCM PTP/S 200 #2: Like the rest of our range, PTP/S is designed with safety in mind. The fixed platform and low step height offer extra protection and comfort.
- Keunggulan TCM PTP/S 200 #3: This truck's other innovative features include the patented TDS system. This offers maximum drive wheel traction, regardless of load weight, for added operator safety. Rear caster wheels with integrated shock absorption maximise stability, while variable damping automatically adjusts to driving conditions.
- Keunggulan TCM PTP/S 200 #4: With built-in, fully integrated Li-ion battery models available and compact truck dimensions, the PTP/S is a durable, productive companion for high-intensity, multiple shift operations.
Aplikasi & Sektor Industri Ideal
Unit TCM PTP/S 200 Power Pallet Truck with Side-Entry Fixed Platform (2.000 kg) pada kategori TCM Pallet Trucks sangat ideal untuk mendukung operasional Pergudangan Modern, Pusat Distribusi, Retail, Supermarket, Cross-Docking & Bongkar Muat Ekspedisi di berbagai kawasan industri, pergudangan, dan pusat logistik di seluruh Indonesia.
Fitur & Keunggulan Utama (TCM PTP/S 200)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar TCM
Fitur & Keunggulan Utama (TCM PTP/S 200)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar TCM
Fitur Unggulan TCM PTP/S 200 #1: Truck Length 1,141mm-1,885mm Travel Speed with and without load 10km/h Turning Radius 2,059mm Truck Width 740mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load PTP/S 200 2000 600 24 1141 740 2059 10/10 PTP/S 250 2500 600 24 1885 740 2059 10/10 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. PTP-S Pallet truck Safety First.
Fitur Unggulan TCM PTP/S 200 #2: Like the rest of our range, PTP/S is designed with safety in mind. The fixed platform and low step height offer extra protection and comfort.
Fitur Unggulan TCM PTP/S 200 #3: This truck's other innovative features include the patented TDS system. This offers maximum drive wheel traction, regardless of load weight, for added operator safety. Rear caster wheels with integrated shock absorption maximise stability, while variable damping automatically adjusts to driving conditions.
Fitur Unggulan TCM PTP/S 200 #4: With built-in, fully integrated Li-ion battery models available and compact truck dimensions, the PTP/S is a durable, productive companion for high-intensity, multiple shift operations.
Fitur Unggulan TCM PTP/S 200 #5: Struktur sasis baja berkekuatan tinggi standar TCM (Toyo Carriers Manufacturing Co., Ltd.) untuk daya tahan operasional jangka panjang pada beban 2.000 kg (2.0 Ton).
Fitur Unggulan TCM PTP/S 200 #6: Sistem penggerak & hidrolik presisi (24V AC Electric Drive with Patented TDS Traction System (Li-Ion Option)) yang memberikan respons halus, efisiensi energi optimal, dan Total Cost of Ownership (TCO) rendah.
Fitur Unggulan TCM PTP/S 200 #7: Desain ergonomis berorientasi operator dengan visibilitas luas dan radius putar kompak untuk manuver aman di lorong gudang maupun kawasan industri.
Fitur Unggulan TCM PTP/S 200 #8: Dukungan penuh garansi resmi, ketersediaan suku cadang asli di Central Workshop Cakung, serta layanan teknisi mekanik keliling di 38 provinsi Indonesia.
Parameter Teknis & Spesifikasi Lengkap (TCM PTP/S 200)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
Parameter Teknis & Spesifikasi Lengkap (TCM PTP/S 200)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
| Parameter Teknis | Nilai Spesifikasi |
|---|---|
| Merek / Brand | TCM |
| Pabrikan (Manufacturer) | Toyo Carriers Manufacturing Co., Ltd. |
| Designasi Kode Model | TCM PTP/S 200 |
| Tipe Unit | Power Pallet Truck with Side-Entry Fixed Platform |
| Kategori Alat | TCM Pallet Trucks |
| Kapasitas Beban Utama (Load Capacity) | 2.000 kg (2.0 Ton) |
| Titik Beban (Load Centre) | 600 mm |
| Tinggi Angkat (Lift Height) | 205 mm |
| Sistem Penggerak / Power Source | 24V AC Electric Drive with Patented TDS Traction System (Li-Ion Option) |
| Model Designation | PTP/S 200 |
| Operator Platform | Side-Entry Fixed Protected Platform |
| Load Capacity (Q) | 2000 kg |
| Load Centre (c) | 600 mm |
| Battery Voltage | 24 V (Integrated Li-Ion / Lead-Acid) |
| Length to Face of Forks (l2) | 1141 mm |
| Overall Chassis Width (b1) | 740 mm |
| Turning Radius (Wa) | 2059 mm |
| Travel Speed (With / Without Load) | 10/10 km/h |
| Sektor Operasional Ideal | Pergudangan Modern, Pusat Distribusi, Retail, Supermarket, Cross-Docking & Bongkar Muat Ekspedisi |
| Kepatuhan K3 & Sertifikasi | Standar CE / EU Stage V / ISO9001 & Siap Riksa Uji SILO K3 Kemnaker RI |
| Cakupan Garansi Resmi | Garansi Resmi Unit & Komponen Utama Standar TCM |
| Dealer, PDI & Layanan Purna Jual | PT. Cemerlang Perkasa Teknologi (Central Workshop Cakung & Layanan Nasional 38 Provinsi) |
Garansi & Layanan Purna Jual Resmi TCM
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Garansi & Layanan Purna Jual Resmi TCM
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Garansi Resmi Standar Pabrikan
Perlindungan garansi resmi standar TCM (Toyo Carriers Manufacturing Co., Ltd.) dan sertifikat Pre-Delivery Inspection (PDI) 48 titik untuk setiap pengadaan unit baru.
10.000+ SKU Suku Cadang Asli Cakung
Ketersediaan suku cadang orisinal (Genuine Parts) lengkap di gudang utama Central Cakung Jakarta Utara untuk menjamin minimum downtime operasional Anda.
Mobile Service Siaga 24/7
Tim teknisi mekanik bersertifikasi siap melakukan perawatan preventif berkala maupun perbaikan darurat langsung di lokasi gudang atau pabrik Anda.
Sertifikasi K3 & Uji SILO
Dukungan pengurusan sertifikasi kelayakan alat (SILO / K3 Kemnaker) resmi serta pelatihan pengoperasian dan perawatan harian bagi operator.
Unit Rekomendasi Terkait di Kategori TCM Pallet Trucks
Pilihan unit TCM sejenis dengan performa tangguh untuk referensi armada gudang & industri Anda.
TCM Pallet Trucks

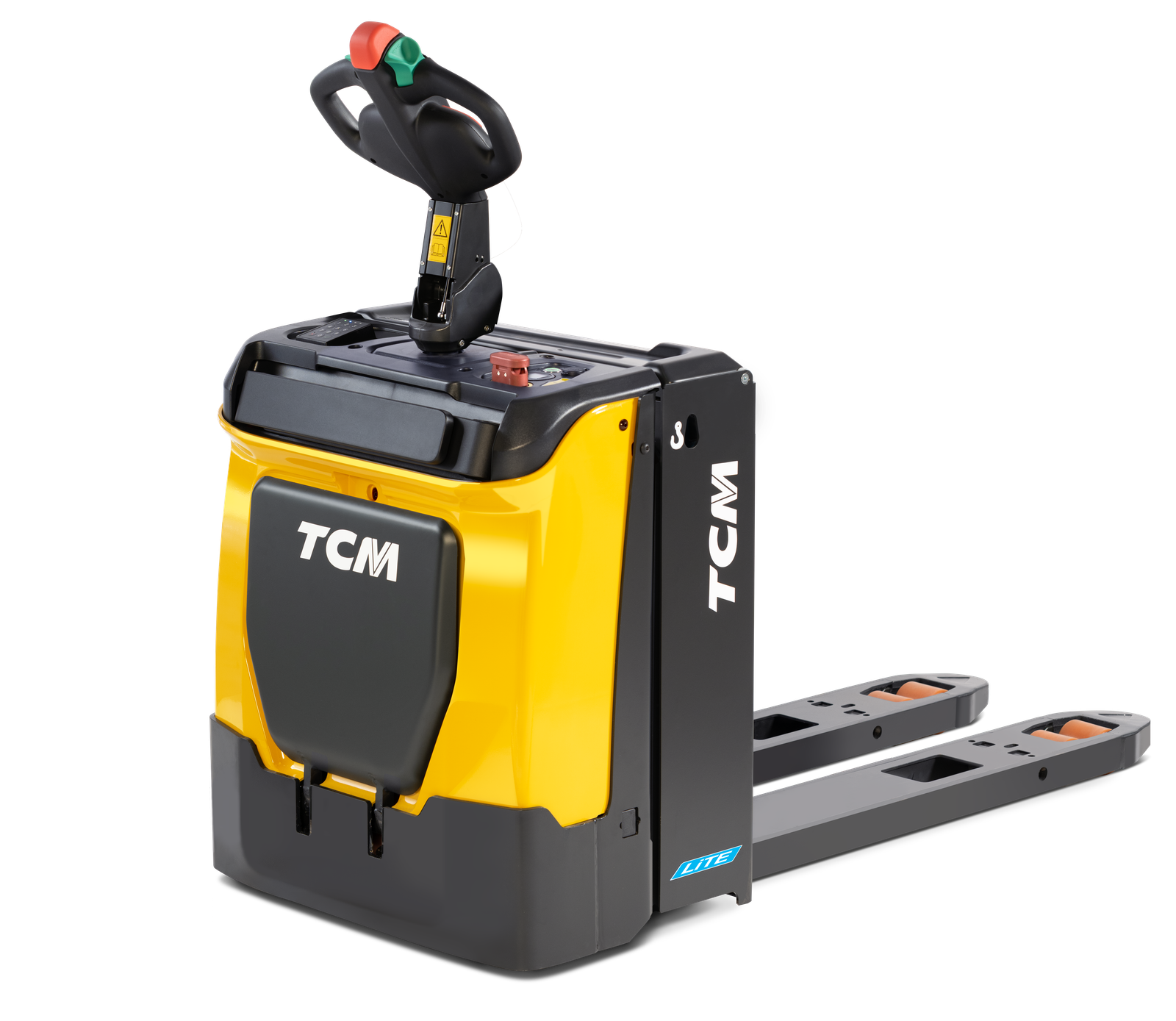

TCM PPL20-Q2 LiTE Pedestrian Pallet Truck with Rider Platform (2.000 kg)
