TCM PTP/R 250
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit TCM PTP/R 250

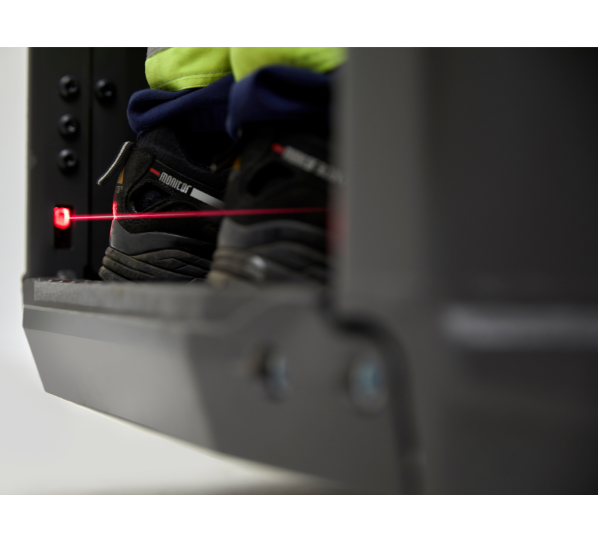

PALLET TRUCKS PTP/R Pallet Truck With Rear Entry Fixed Platform Li-ION 24v Voltage 2.5t Max Cap Productivity & innovative features . The PTP/R power pallet truck with rear-entry fixed platform offers safety, efficiency, driver comfort and best-in-class control. Truck Length 1,141mm Travel Speed with and without load 10km/h Turning Radius 2,059mm Truck Width 740mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load PTP/R 200 2000 600 24 1141 740 2059 10/10 PTP/R 250 2500 600 24 1141 740 2059 10/10 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. PTP Pallet truck Safety at the forefront. The PTP is ideal for loading/unloading, order picking and short, medium and long internal transports. Like the rest of our range, PTP/R is designed with safety in mind. The fixed platform and low step height offer extra protection and comfort. (An optional foot protection system automatically slows/stops the truck if the driver's foot is outside the platform.) Diproduksi sesuai standar global TCM (Toyo Carriers Manufacturing Co., Ltd.), unit TCM PTP/R 250 Power Pallet Truck with Rear-Entry Fixed Platform (2.500 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori TCM Pallet Trucks, sistem penggerak 24V AC Electric Drive with Patented TDS Traction System (Li-Ion Option) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Keunggulan Rancang Bangun & Performa
- Keunggulan TCM PTP/R 250 #1: Truck Length 1,141mm Travel Speed with and without load 10km/h Turning Radius 2,059mm Truck Width 740mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load PTP/R 200 2000 600 24 1141 740 2059 10/10 PTP/R 250 2500 600 24 1141 740 2059 10/10 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. PTP Pallet truck Safety at the forefront. The PTP is ideal for loading/unloading, order picking and short, medium and long internal transports. Like the rest of our range, PTP/R is designed with safety in mind. The fixed platform and low step height offer extra protection and comfort. (An optional foot protection system automatically slows/stops the truck if the driver's foot is outside the platform.)
- Keunggulan TCM PTP/R 250 #2: This truck has a range of other innovative features, including the patented TDS system. This offers maximum drive wheel traction, regardless of load weight, for added operator safety. Stability is maximised by rear caster wheels with integrated shock absorption, plus variable damping that automatically adjusts to driving conditions.
- Keunggulan TCM PTP/R 250 #3: With built-in, fully integrated Li-ion Battery models available and compact truck dimensions, the PTP/R is a durable, productive companion for high-intensity, multiple shift operations. Download the brochure to find out more about the full range of standard and optional features.
- Keunggulan TCM PTP/R 250 #4: Total Cost of Ownership. Whether you’re looking to cut costs or improve operational efficiency, reducing your total cost of ownership (TCO) is key. TCO takes into account the initial purchase price of equipment, as well as any direct or indirect expenses incurred.
Aplikasi & Sektor Industri Ideal
Unit TCM PTP/R 250 Power Pallet Truck with Rear-Entry Fixed Platform (2.500 kg) pada kategori TCM Pallet Trucks sangat ideal untuk mendukung operasional Pergudangan Modern, Pusat Distribusi, Retail, Supermarket, Cross-Docking & Bongkar Muat Ekspedisi di berbagai kawasan industri, pergudangan, dan pusat logistik di seluruh Indonesia.
Fitur & Keunggulan Utama (TCM PTP/R 250)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar TCM
Parameter Teknis & Spesifikasi Lengkap (TCM PTP/R 250)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
| Parameter Teknis | Nilai Spesifikasi |
|---|---|
| Merek / Brand | TCM |
| Pabrikan (Manufacturer) | Toyo Carriers Manufacturing Co., Ltd. |
| Designasi Kode Model | TCM PTP/R 250 |
| Tipe Unit | Power Pallet Truck with Rear-Entry Fixed Platform |
| Kategori Alat | TCM Pallet Trucks |
| Kapasitas Beban Utama (Load Capacity) | 2.500 kg (2.5 Ton) |
| Titik Beban (Load Centre) | 600 mm |
| Tinggi Angkat (Lift Height) | 205 mm |
| Sistem Penggerak / Power Source | 24V AC Electric Drive with Patented TDS Traction System (Li-Ion Option) |
| Model Designation | PTP/R 250 |
| Operator Platform | Rear-Entry Fixed Protected Platform |
| Load Capacity (Q) | 2500 kg |
| Load Centre (c) | 600 mm |
| Battery Voltage | 24 V (Integrated Li-Ion / Lead-Acid) |
| Length to Face of Forks (l2) | 1141 mm |
| Overall Chassis Width (b1) | 740 mm |
| Turning Radius (Wa) | 2059 mm |
| Travel Speed (With / Without Load) | 10/10 km/h |
| Sektor Operasional Ideal | Pergudangan Modern, Pusat Distribusi, Retail, Supermarket, Cross-Docking & Bongkar Muat Ekspedisi |
| Kepatuhan K3 & Sertifikasi | Standar CE / EU Stage V / ISO9001 & Siap Riksa Uji SILO K3 Kemnaker RI |
| Cakupan Garansi Resmi | Garansi Resmi Unit & Komponen Utama Standar TCM |
| Dealer, PDI & Layanan Purna Jual | PT. Cemerlang Perkasa Teknologi (Central Workshop Cakung & Layanan Nasional 38 Provinsi) |

Garansi & Layanan Purna Jual Resmi TCM
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Perlindungan garansi resmi standar TCM (Toyo Carriers Manufacturing Co., Ltd.) dan sertifikat Pre-Delivery Inspection (PDI) 48 titik untuk setiap pengadaan unit baru.
Ketersediaan suku cadang orisinal (Genuine Parts) lengkap di gudang utama Central Cakung Jakarta Utara untuk menjamin minimum downtime operasional Anda.
Tim teknisi mekanik bersertifikasi siap melakukan perawatan preventif berkala maupun perbaikan darurat langsung di lokasi gudang atau pabrik Anda.
Dukungan pengurusan sertifikasi kelayakan alat (SILO / K3 Kemnaker) resmi serta pelatihan pengoperasian dan perawatan harian bagi operator.
