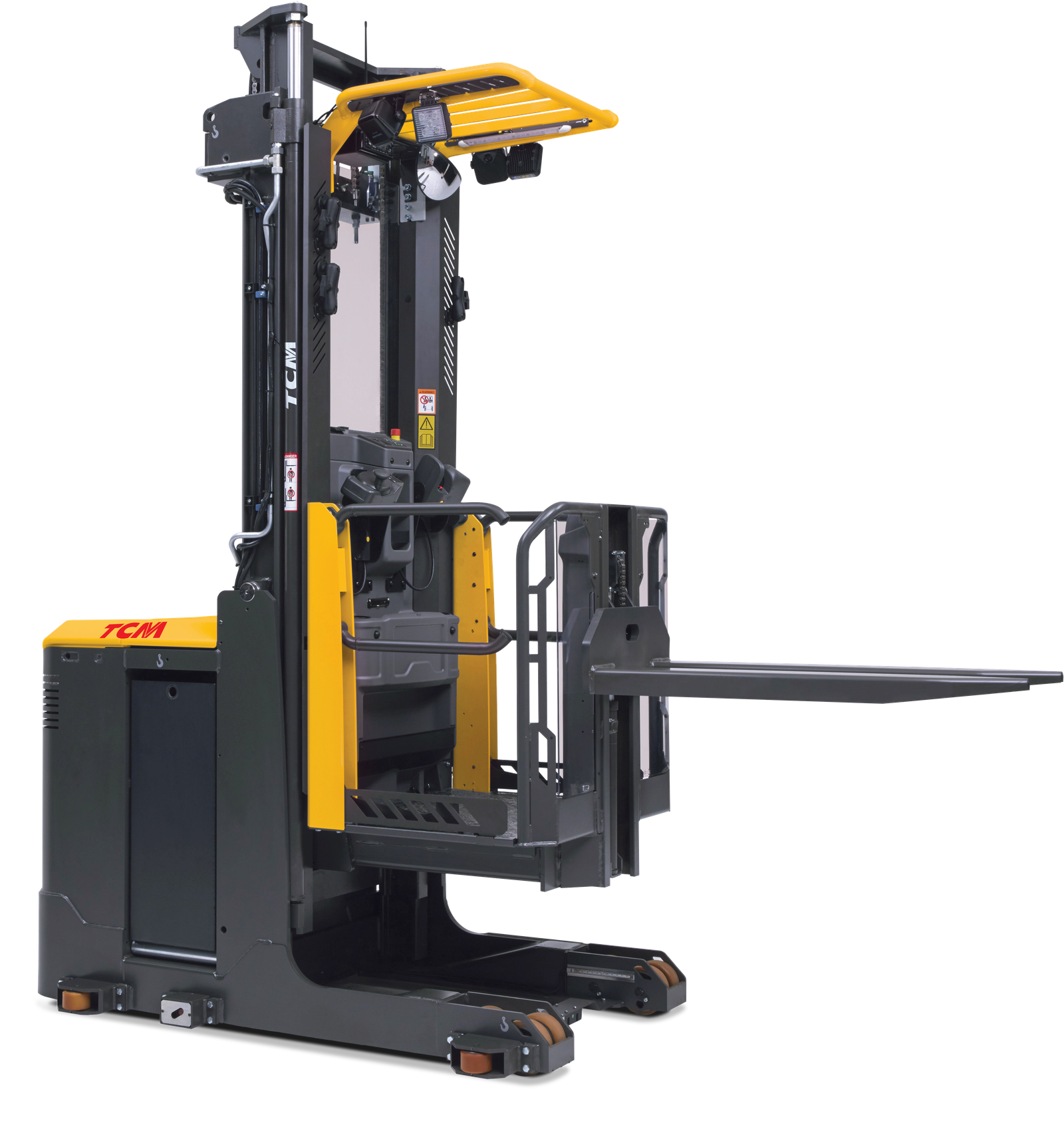

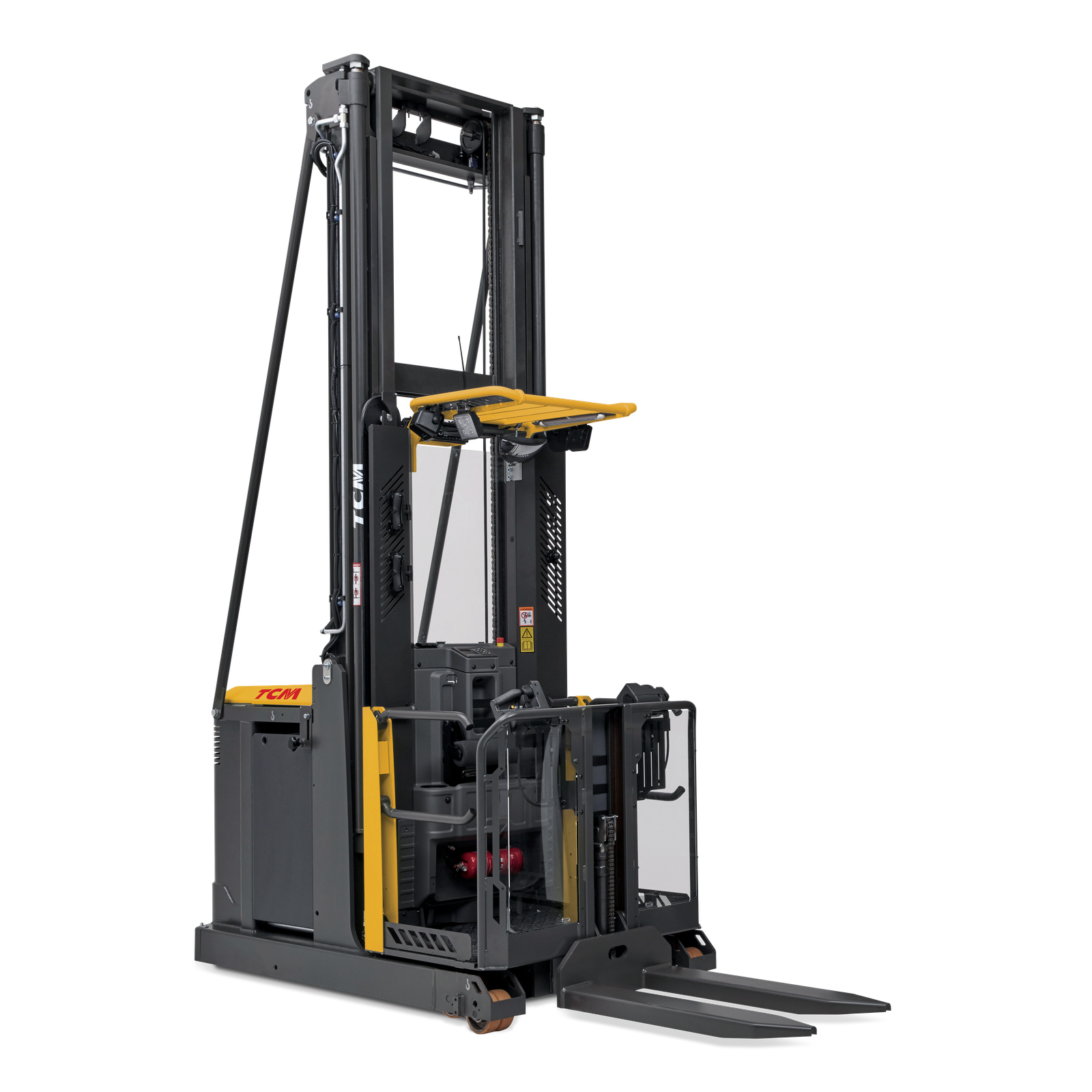

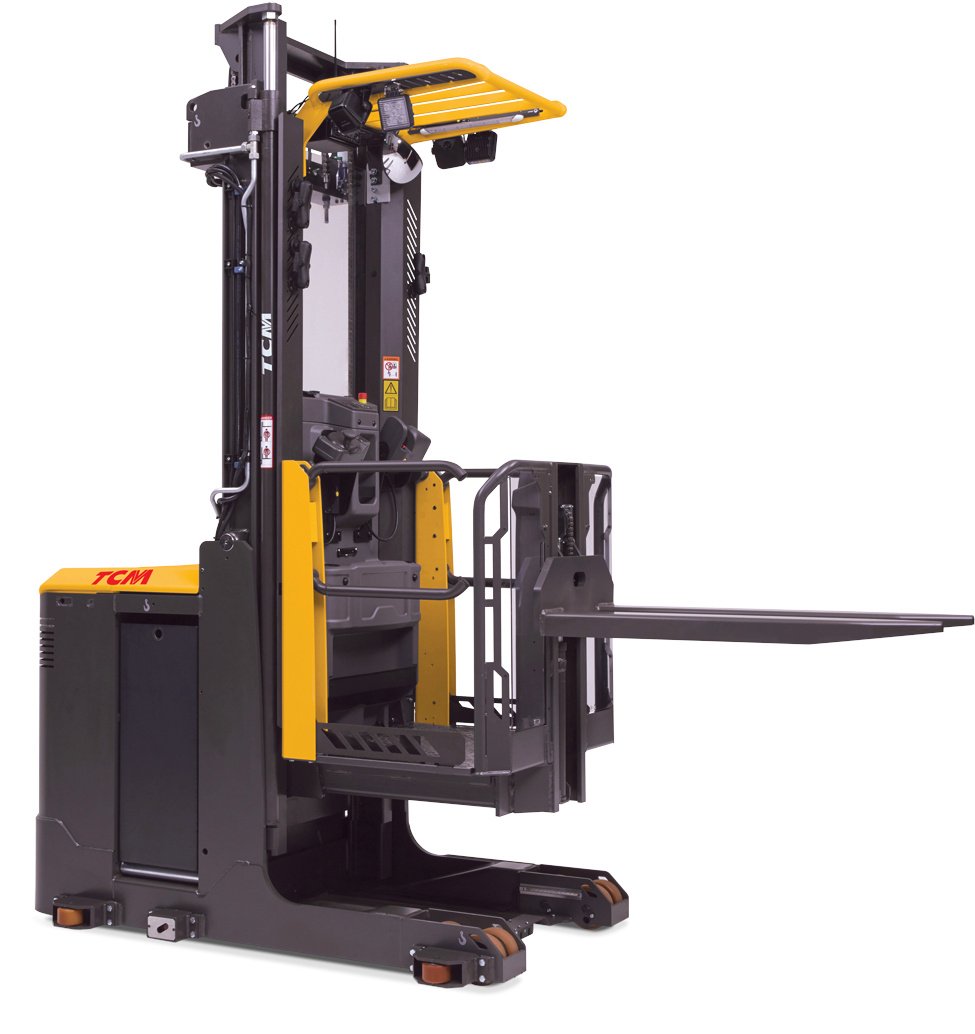

TCM EOM 100
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit TCM EOM 100
pickers EO Medium & High Level Order Picker Electric 24/48v Voltage 1.25t Max Cap Optimise Productivity Safely . In the materials handling world, order picking is the most labour-intensive and expensive. By paying careful attention to process design, it’s possible to keep these costs under control and make your warehouse more efficient and profitable. Designed with the same safety, precision and efficiency as the LO-series, the EO-series prioritises usability and ergonomics for those hard-to-reach applications. With platform heights up to 10500 mm and a maximum picking height of 12100 mm, the EO-series of order picker trucks maximises your warehouse storage capacity – keeping both your operational efficiency and safety standards high. Diproduksi sesuai standar global TCM (Toyo Carriers Manufacturing Co., Ltd.), unit TCM EOM 100 Medium-Level Order Picker Truck (Compact 1.655 mm Chassis) (1.000 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori TCM Order Picker Trucks, sistem penggerak 24V / 48V High-Efficiency Electric AC Drive yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Keunggulan Rancang Bangun & Performa
- Keunggulan TCM EOM 100 #1: Designed with the same safety, precision and efficiency as the LO-series, the EO-series prioritises usability and ergonomics for those hard-to-reach applications. With platform heights up to 10500 mm and a maximum picking height of 12100 mm, the EO-series of order picker trucks maximises your warehouse storage capacity – keeping both your operational efficiency and safety standards high.
- Keunggulan TCM EOM 100 #2: We know the operator is key for efficient warehouse operations, and order picking is no exception. That’s why our EO-series is designed to enable the operator to carry out their job safely and comfortably for maximum productivity, reducing your TCO.
- Keunggulan TCM EOM 100 #3: Comfort & Premium Features. With premium safety features including pro-vision mast for optimal visibility and warning lights expertly positioned for safety without distraction, these order picker trucks place operator and warehouse safety at the forefront of material handling. The EO-series has additional safety measures in place such as driver presence check to adjust speeds and driving functions automatically, and a wrap-around bumper to reduce any damage upon impact.
- Keunggulan TCM EOM 100 #4: Like with the LO-series, the EO-series of order picker lift trucks have replaced the dead-man’s foot switch with smart floor sensors to reduce trip hazards and optimise operator comfort and safety. Comfort is key so these trucks provide a spacious cabin with adjustable controls for a more productive space while a low step-height and comfort rail reduce operator strain.
Aplikasi & Sektor Industri Ideal
Unit TCM EOM 100 Medium-Level Order Picker Truck (Compact 1.655 mm Chassis) (1.000 kg) pada kategori TCM Order Picker Trucks sangat ideal untuk mendukung operasional Fulfillment Center E-Commerce, Pusat Distribusi Suku Cadang, Gudang Retail & Pengambilan Barang Multi-Level di berbagai kawasan industri, pergudangan, dan pusat logistik di seluruh Indonesia.
Fitur & Keunggulan Utama (TCM EOM 100)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar TCM

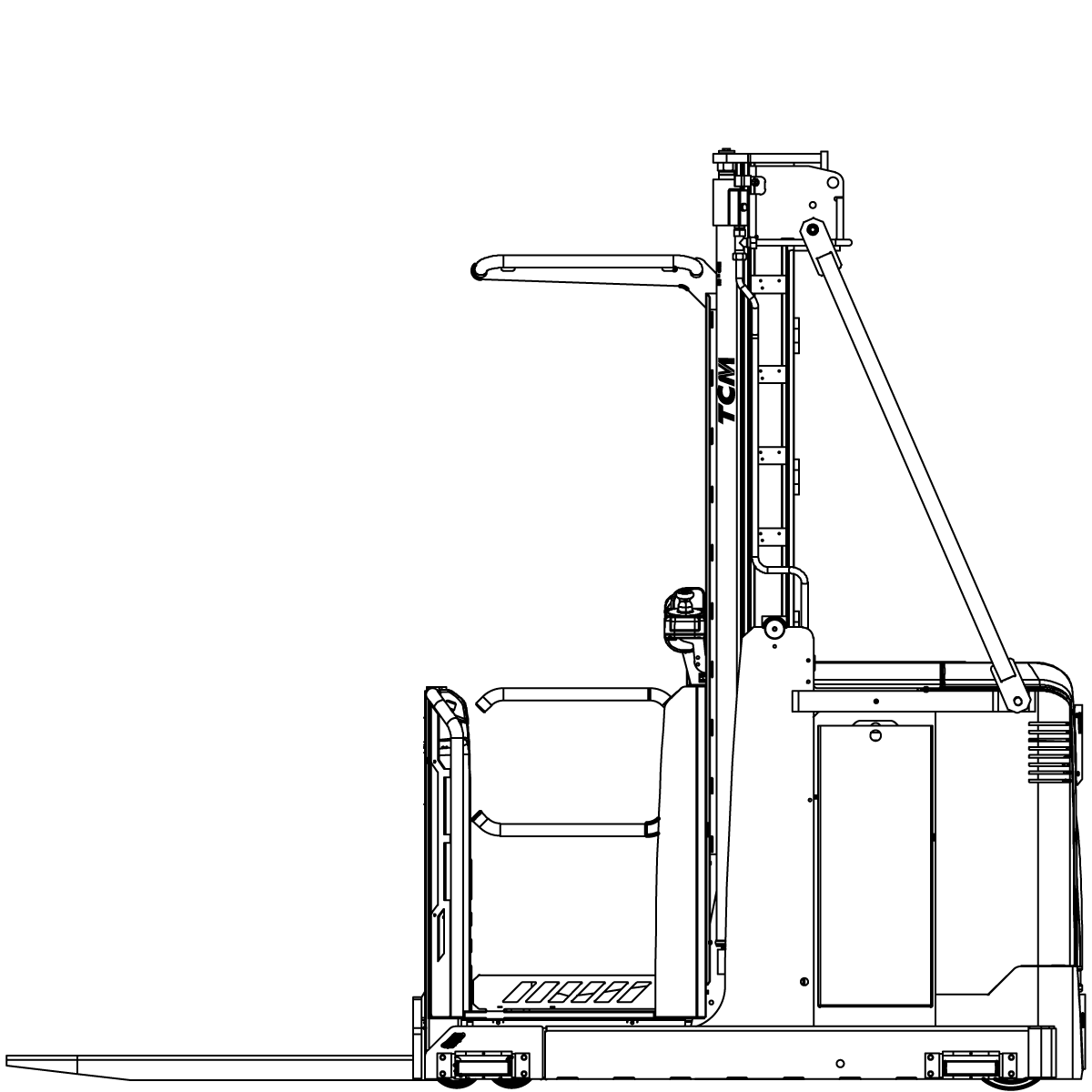

Parameter Teknis & Spesifikasi Lengkap (TCM EOM 100)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
| Parameter Teknis | Nilai Spesifikasi |
|---|---|
| Merek / Brand | TCM |
| Pabrikan (Manufacturer) | Toyo Carriers Manufacturing Co., Ltd. |
| Designasi Kode Model | TCM EOM 100 |
| Tipe Unit | Medium-Level Order Picker Truck (Compact 1.655 mm Chassis) |
| Kategori Alat | TCM Order Picker Trucks |
| Kapasitas Beban Utama (Load Capacity) | 1.000 kg (1.0 Ton) |
| Titik Beban (Load Centre) | 600 mm |
| Tinggi Angkat (Lift Height) | Up to 3.200 mm Platform / 4.800 mm Picking Height |
| Sistem Penggerak / Power Source | 24V / 48V High-Efficiency Electric AC Drive |
| Model Designation | EOM 100 |
| Chassis Configuration | Compact 1.655 mm Chassis |
| Load Capacity (Q) | 1000 kg |
| Load Centre (c) | 600 mm |
| Battery Voltage | 24 V |
| Length to Face of Forks (l2) | 1655 mm |
| Overall Cabin/Chassis Width (b1) | 810 mm |
| Turning Radius (Wa) | 1570 mm |
| Travel Speed (With / Without Load) | 9.0 / 9.0 km/h |
| Maximum Picking Height | Up to 4.800 mm |
| Sektor Operasional Ideal | Fulfillment Center E-Commerce, Pusat Distribusi Suku Cadang, Gudang Retail & Pengambilan Barang Multi-Level |
| Kepatuhan K3 & Sertifikasi | Standar CE / EU Stage V / ISO9001 & Siap Riksa Uji SILO K3 Kemnaker RI |
| Cakupan Garansi Resmi | Garansi Resmi Unit & Komponen Utama Standar TCM |
| Dealer, PDI & Layanan Purna Jual | PT. Cemerlang Perkasa Teknologi (Central Workshop Cakung & Layanan Nasional 38 Provinsi) |

Garansi & Layanan Purna Jual Resmi TCM
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Perlindungan garansi resmi standar TCM (Toyo Carriers Manufacturing Co., Ltd.) dan sertifikat Pre-Delivery Inspection (PDI) 48 titik untuk setiap pengadaan unit baru.
Ketersediaan suku cadang orisinal (Genuine Parts) lengkap di gudang utama Central Cakung Jakarta Utara untuk menjamin minimum downtime operasional Anda.
Tim teknisi mekanik bersertifikasi siap melakukan perawatan preventif berkala maupun perbaikan darurat langsung di lokasi gudang atau pabrik Anda.
Dukungan pengurusan sertifikasi kelayakan alat (SILO / K3 Kemnaker) resmi serta pelatihan pengoperasian dan perawatan harian bagi operator.
