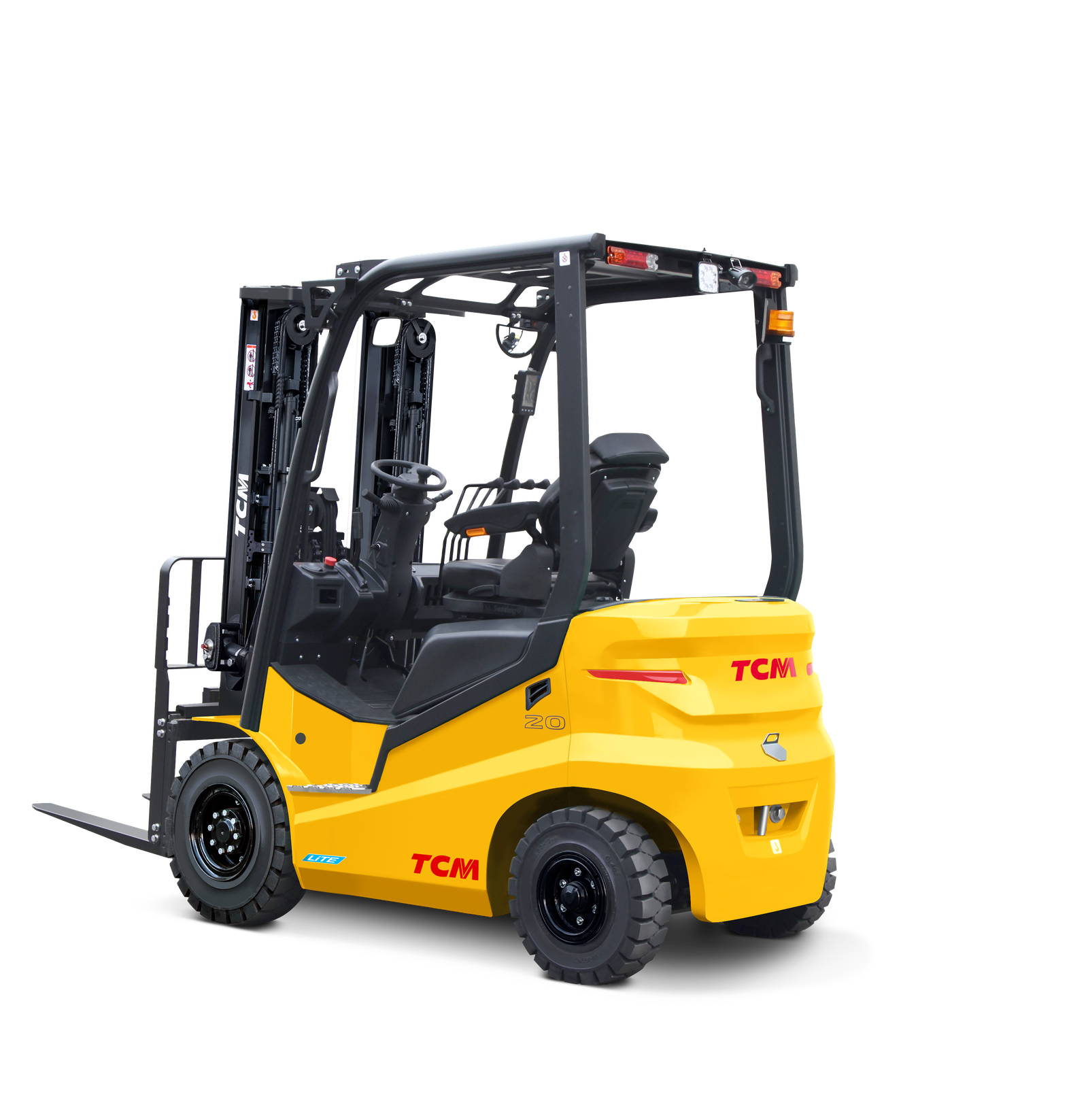

TCM FB20-Q1
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit TCM FB20-Q1
Electric Counterbalance FB16-20 4-Wheel Electric Counterbalance Forklift Li-ION 51.2v Voltage 1.6/2.0t Max Cap Optimum power and stability . The FB16-20-Q1 is a 4-wheel electric counterbalance forklift designed for light to medium-duty tasks both indoors and on outdoor uneven surfaces. With 1,600 KG and 2,000 KG load capacity options and lift heights up to 6 meters, this forklift delivers optimum power and 4-wheel stability for effective performance without over specification. Ideal for warehouses, distribution centres, manufacturing facilities, and retail operations requiring versatile indoor/outdoor capability, the FB16-20-Q1 combines TCM's engineering excellence with straightforward specifications for everyday material handling. The intuitive mechanical control reduces training time and boosts productivity from day one, allowing operators to work confidently without extensive instruction. Diproduksi sesuai standar global TCM (Toyo Carriers Manufacturing Co., Ltd.), unit TCM FB20-Q1 LiTE 4-Wheel Lithium-Ion Counterbalance Forklift (2.000 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori TCM Electric Counterbalance Forklifts, sistem penggerak 51.2V Integrated Lithium-Ion (Li-Ion) Battery yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Keunggulan Rancang Bangun & Performa
- Keunggulan TCM FB20-Q1 #1: Ideal for warehouses, distribution centres, manufacturing facilities, and retail operations requiring versatile indoor/outdoor capability, the FB16-20-Q1 combines TCM's engineering excellence with straightforward specifications for everyday material handling. The intuitive mechanical control reduces training time and boosts productivity from day one, allowing operators to work confidently without extensive instruction.
- Keunggulan TCM FB20-Q1 #2: The comfort-focused seat design minimises vibration, reducing operator fatigue and enhancing focus during extended shifts. Superior shock absorption with front and rear super elastic tyres provides smooth handling and extended tyre life, even on uneven surfaces. This combination of comfort and durability is particularly valuable in operations transitioning between indoor and outdoor environments where surface quality varies.
- Keunggulan TCM FB20-Q1 #3: Truck Length 2,870mm / 3,155mm Travel Speed with and without load 14-15 / 13-15 km/h Turning Radius 1,570mm / 1,700mm Truck Width 1,084mm Specifications. Model Kg Capacity mm Load centre V Voltage mm Length mm Width mm Turning radius km/h Travel speed with / without load FTB16-20-Q1 2,000 kg 500 76.8 3,195 1,150 1,920 14 / 15 FTB16-Q1 1600 500 76.8 3,045 1,150 1,920 14 / 15 FB25-Q1 2,500 500 76.8 3,540 1,150 2,230 14 / 15 FB30-Q1 3,000 500 76.8 3,688 1,230 2,360 14 / 15 FB35-Q1 3,500 500 76.8 3,818 1,230 2,470 14 / 15 FB35L-Q1 3,500 600 76.8 3,818 1,230 2,470 14 / 15 FB16-Q1 1,600 500 51.2 2,870 1,084 1,570 14 / 15 FB20-Q1 2,000 500 51.2 3,155 1,084 1,700 13 / 15 * Data provided is for guidance only. Actual data may vary depending on final truck configuration. Safety First. In a workplace where handling heavy machinery is at the core of operations, safety regulations and procedures must be top priority.
- Keunggulan TCM FB20-Q1 #4: The FB16-20-Q1 incorporates comprehensive safety features to reduce accidents and ensure reliable operation in real-world warehouse and outdoor environments. Full road light kit including hazard light button meets visibility standards for safer operation both indoors and outdoors, essential for operations transitioning between environments throughout the day. Blue spot projects a clear warning light onto the floor ahead of the forklift, alerting pedestrians to the truck's presence and reducing collision risks in busy areas.
Aplikasi & Sektor Industri Ideal
Unit TCM FB20-Q1 LiTE 4-Wheel Lithium-Ion Counterbalance Forklift (2.000 kg) pada kategori TCM Electric Counterbalance Forklifts sangat ideal untuk mendukung operasional Pergudangan Indoor/Outdoor, Pusat Distribusi, Pabrik Manufaktur, Otomotif, Makanan & Minuman (FMCG) & Logistik 3PL di berbagai kawasan industri, pergudangan, dan pusat logistik di seluruh Indonesia.
Fitur & Keunggulan Utama (TCM FB20-Q1)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar TCM
Parameter Teknis & Spesifikasi Lengkap (TCM FB20-Q1)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
| Parameter Teknis | Nilai Spesifikasi |
|---|---|
| Merek / Brand | TCM |
| Pabrikan (Manufacturer) | Toyo Carriers Manufacturing Co., Ltd. |
| Designasi Kode Model | TCM FB20-Q1 |
| Tipe Unit | LiTE 4-Wheel Lithium-Ion Counterbalance Forklift |
| Kategori Alat | TCM Electric Counterbalance Forklifts |
| Kapasitas Beban Utama (Load Capacity) | 2.000 kg (2.0 Ton) |
| Titik Beban (Load Centre) | 500 mm |
| Tinggi Angkat (Lift Height) | 3.000 – 6.000 mm |
| Sistem Penggerak / Power Source | 51.2V Integrated Lithium-Ion (Li-Ion) Battery |
| Model Designation | FB20-Q1 |
| Product Series | TCM LiTE Range (Lithium-Ion) |
| Wheel Configuration | 4-Wheel Indoor/Outdoor Super Elastic Tyres |
| Load Capacity (Q) | 2000 kg |
| Load Centre (c) | 500 mm |
| Battery Voltage | 51.2 V Lithium-Ion (Fast Opportunity Charging) |
| Overall Truck Length (l1) | 3155 mm |
| Overall Chassis Width (b1) | 1084 mm |
| Turning Radius (Wa) | 1700 mm |
| Travel Speed (With / Without Load) | 13 / 15 km/h |
| Max Lift Height | Up to 6.000 mm |
| Standard Safety Kit | Full Road Light Kit, Blue Spot Floor Warning Light, Strobe & Reverse Buzzer |
| Sektor Operasional Ideal | Pergudangan Indoor/Outdoor, Pusat Distribusi, Pabrik Manufaktur, Otomotif, Makanan & Minuman (FMCG) & Logistik 3PL |
| Kepatuhan K3 & Sertifikasi | Standar CE / EU Stage V / ISO9001 & Siap Riksa Uji SILO K3 Kemnaker RI |
| Cakupan Garansi Resmi | Garansi Resmi Unit & Komponen Utama Standar TCM |
| Dealer, PDI & Layanan Purna Jual | PT. Cemerlang Perkasa Teknologi (Central Workshop Cakung & Layanan Nasional 38 Provinsi) |

Garansi & Layanan Purna Jual Resmi TCM
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Perlindungan garansi resmi standar TCM (Toyo Carriers Manufacturing Co., Ltd.) dan sertifikat Pre-Delivery Inspection (PDI) 48 titik untuk setiap pengadaan unit baru.
Ketersediaan suku cadang orisinal (Genuine Parts) lengkap di gudang utama Central Cakung Jakarta Utara untuk menjamin minimum downtime operasional Anda.
Tim teknisi mekanik bersertifikasi siap melakukan perawatan preventif berkala maupun perbaikan darurat langsung di lokasi gudang atau pabrik Anda.
Dukungan pengurusan sertifikasi kelayakan alat (SILO / K3 Kemnaker) resmi serta pelatihan pengoperasian dan perawatan harian bagi operator.
