TCM FB16-E4
Deskripsi & Overview Produk
Ulasan lengkap rancang bangun, keunggulan teknis, dan sektor aplikasi operasional unit TCM FB16-E4
Electric Counterbalance FB / FTB 3-4 wheel electric counterbalance forklift Li-ION 48v Voltage 2.0t Max Cap Class - leading energy efficiency . The FB/FTB has been built to automatically adapt truck behaviour to the driver's wishes and needs. With an advanced range of features and applications , the FB/FTB is a great option for those looking for a vehicle that is agile, intelligent and durable. Designed with specific characteristics that centre around and optimise efficiency, comfort and safety, our new 48V electric counterbalance is both versatile and cost-effective. The new forklift is available in a range of load capacities; 1400, 1600, 1800 and 2000kgs, including standard and long wheelbase, guaranteeing your drivers have the best place of equipment for the job. Diproduksi sesuai standar global TCM (Toyo Carriers Manufacturing Co., Ltd.), unit TCM FB16-E4 4-Wheel Electric Counterbalance Forklift (1.600 kg) mengintegrasikan struktur sasis industri berkekuatan tinggi pada kategori TCM Electric Counterbalance Forklifts, sistem penggerak 48V Electric AC Drive (Li-Ion / Lead-Acid Battery Option) yang handal dan hemat energi, serta kontrol presisi untuk keamanan dan produktivitas siklus kerja di Indonesia.
Keunggulan Rancang Bangun & Performa
- Keunggulan TCM FB16-E4 #1: Designed with specific characteristics that centre around and optimise efficiency, comfort and safety, our new 48V electric counterbalance is both versatile and cost-effective. The new forklift is available in a range of load capacities; 1400, 1600, 1800 and 2000kgs, including standard and long wheelbase, guaranteeing your drivers have the best place of equipment for the job.

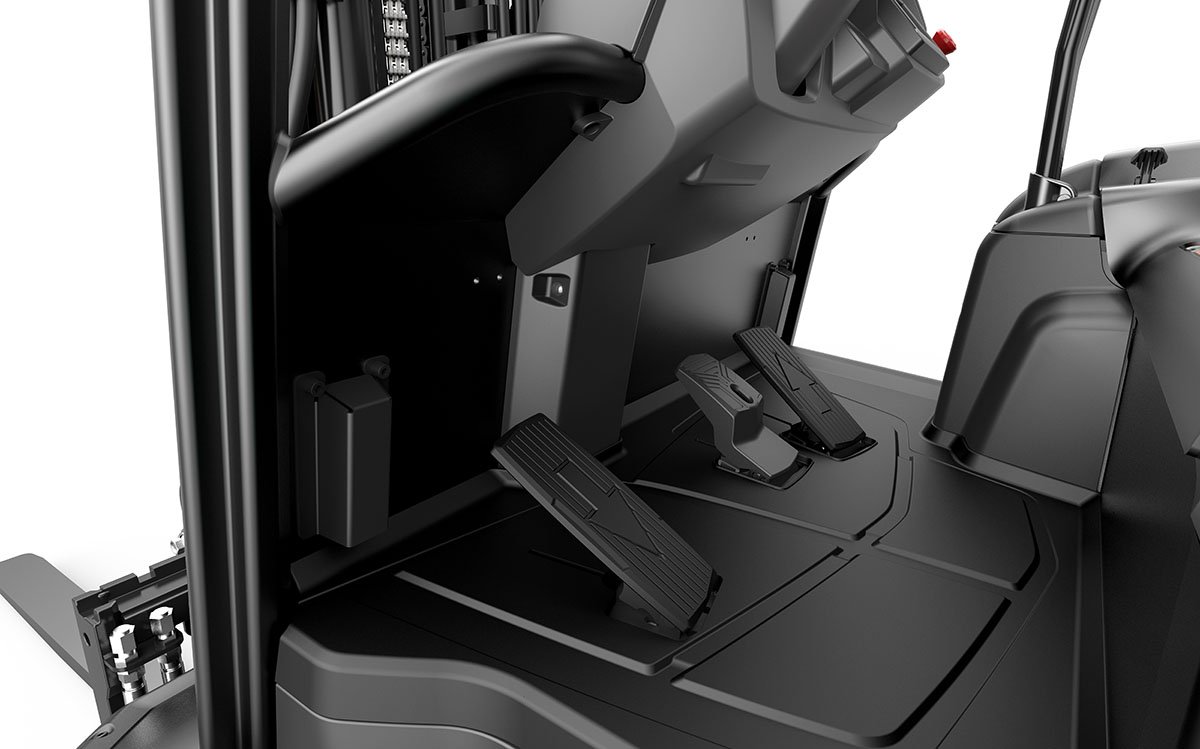

- Keunggulan TCM FB16-E4 #2: Ergonomic placement is a huge contributing factor to the comfort of this vehicle; the spring-force-optimised fingertip hydraulic controls are placed on the adjustable armrest to ensure perfect anatomical support and free movement for the driver. The pedals on the FB/FTB are designed, positioned and angled to reduce fatigue, regardless of a driver's height or foot size.

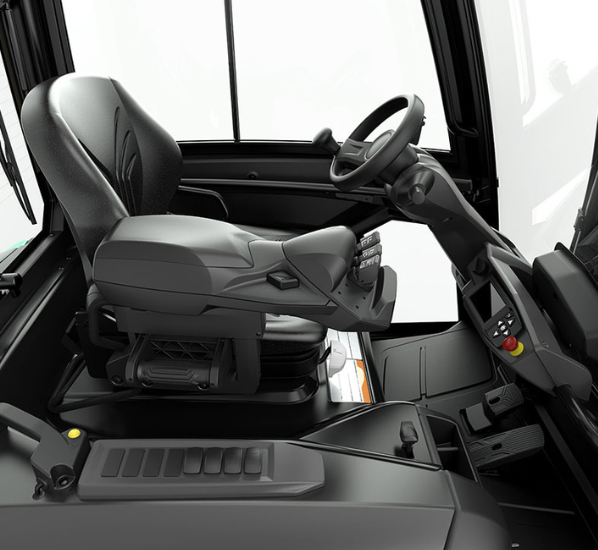

- Keunggulan TCM FB16-E4 #3: Innovative Design. With a spacious operator compartment, a long-handled grab bar and a smooth curved side panel, the driver can access and exit the cabin confidently. The extended seat and steering column adjustability work to facilitate a healthy driving position and bespoke comfort.

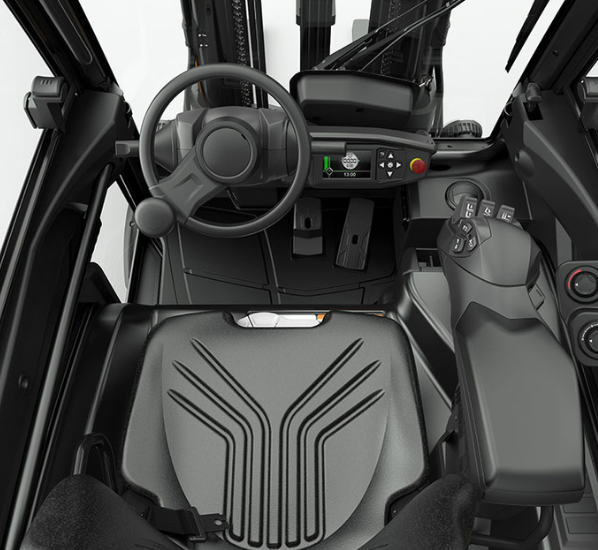

- Keunggulan TCM FB16-E4 #4: Through an inclined and narrow dashboard, the high-vision design maximises an operator's ability to see in front, down and beside them at all times. The driver can steer effortlessly as the truck is enhanced with a one-spoke steering wheel and a steering knob that returns to the ideal 8 o'clock position to enable effortless steering, control and precision.
Aplikasi & Sektor Industri Ideal
Unit TCM FB16-E4 4-Wheel Electric Counterbalance Forklift (1.600 kg) pada kategori TCM Electric Counterbalance Forklifts sangat ideal untuk mendukung operasional Pergudangan Indoor/Outdoor, Pusat Distribusi, Pabrik Manufaktur, Otomotif, Makanan & Minuman (FMCG) & Logistik 3PL di berbagai kawasan industri, pergudangan, dan pusat logistik di seluruh Indonesia.
Fitur & Keunggulan Utama (TCM FB16-E4)
Inovasi teknologi, ketangguhan sasis, dan ergonomi operator standar TCM
Parameter Teknis & Spesifikasi Lengkap (TCM FB16-E4)
Tabel parameter kapasitas beban, titik beban (load centre), dimensi teknis, dan sistem penggerak
| Parameter Teknis | Nilai Spesifikasi |
|---|---|
| Merek / Brand | TCM |
| Pabrikan (Manufacturer) | Toyo Carriers Manufacturing Co., Ltd. |
| Designasi Kode Model | TCM FB16-E4 |
| Tipe Unit | 4-Wheel Electric Counterbalance Forklift |
| Kategori Alat | TCM Electric Counterbalance Forklifts |
| Kapasitas Beban Utama (Load Capacity) | 1.600 kg (1.6 Ton) |
| Titik Beban (Load Centre) | 500 mm |
| Tinggi Angkat (Lift Height) | 3.000 – 7.000 mm |
| Sistem Penggerak / Power Source | 48V Electric AC Drive (Li-Ion / Lead-Acid Battery Option) |
| Model Designation | FB16-E4 |
| Wheel Configuration | 4-Wheel High-Stability Rear Axle |
| Load Capacity (Q) | 1600 kg |
| Load Centre (c) | 500 mm |
| Battery Voltage | 48 V (Lithium-Ion / Lead-Acid) |
| Truck Length to Face of Forks (l2) | 1910 mm |
| Overall Chassis Width (b1) | 1090 mm |
| Turning Radius (Wa) | 1690 mm |
| Travel Speed (With / Without Load) | 17 / 17 km/h |
| Lift Height Range | 3.000 – 7.000 mm (Simplex / Duplex / Triplex ProVision Mast) |
| Hydraulic Control | Spring-Force-Optimised Fingertip Controls on Adjustable Armrest |
| Sektor Operasional Ideal | Pergudangan Indoor/Outdoor, Pusat Distribusi, Pabrik Manufaktur, Otomotif, Makanan & Minuman (FMCG) & Logistik 3PL |
| Kepatuhan K3 & Sertifikasi | Standar CE / EU Stage V / ISO9001 & Siap Riksa Uji SILO K3 Kemnaker RI |
| Cakupan Garansi Resmi | Garansi Resmi Unit & Komponen Utama Standar TCM |
| Dealer, PDI & Layanan Purna Jual | PT. Cemerlang Perkasa Teknologi (Central Workshop Cakung & Layanan Nasional 38 Provinsi) |

Garansi & Layanan Purna Jual Resmi TCM
Jaminan purna jual, ketersediaan suku cadang asli Cakung, dan teknisi siaga di seluruh Indonesia
Perlindungan garansi resmi standar TCM (Toyo Carriers Manufacturing Co., Ltd.) dan sertifikat Pre-Delivery Inspection (PDI) 48 titik untuk setiap pengadaan unit baru.
Ketersediaan suku cadang orisinal (Genuine Parts) lengkap di gudang utama Central Cakung Jakarta Utara untuk menjamin minimum downtime operasional Anda.
Tim teknisi mekanik bersertifikasi siap melakukan perawatan preventif berkala maupun perbaikan darurat langsung di lokasi gudang atau pabrik Anda.
Dukungan pengurusan sertifikasi kelayakan alat (SILO / K3 Kemnaker) resmi serta pelatihan pengoperasian dan perawatan harian bagi operator.
