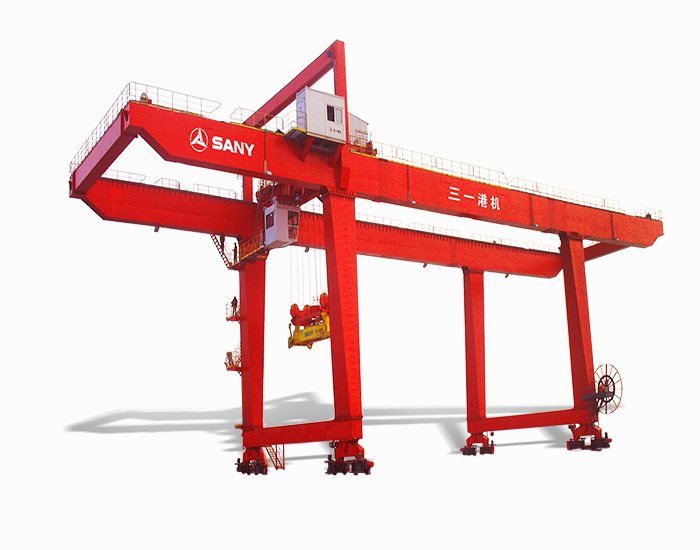

Sany RMG5508 40t Rail-Mounted Container Gantry Crane adalah unit 40t Rail-Mounted Container Gantry Crane pada lini Sany Port Machinery produksi SANY Heavy Industry yang dirancang untuk memberikan produktivitas tinggi, ketangguhan struktural, dan efisiensi operasional optimal di medan proyek konstruksi, pertambangan, infrastruktur, pelabuhan, maupun industri nasional. Hadir dengan spesifikasi utama (Effective Cantilever: 3/0 m, Gantry Speed (Empty Load): 40 M/Min, Gantry Speed (Full Load): 40 M/Min, Hoisting Capacity Under Spreader: 40 T), unit model RMG5508 ini didukung penuh oleh garansi resmi pabrikan, ketersediaan suku cadang asli (genuine parts), serta layanan teknisi purna jual dari PT Cemerlang Perkasa Teknologi di seluruh Indonesia. Keunggulan utama unit ini meliputi New Torque Anti-sway System (1), New Torque Anti-sway System (2), Container Auto-tracking and Auto-hoisting System.
Keunggulan Utama Sany RMG5508 40t Rail-Mounted Container Gantry Crane
- New Torque Anti-sway System (1): Through proper arrangement of guide pulleys in the horizontal and vertical direction, the movement of the four wire ropes can effectively prevent the swing of the spreader, greatly improving container hoisting efficiency.
- New Torque Anti-sway System (2): The new-developed patented four rope anti-sway system effectively achieves bidirectional anti-sway of the spreader. This system allows a ±250mm movement of spreader in the gantry or trolley direction, greatly improving container hoisting efficiency.
- Container Auto-tracking and Auto-hoisting System: Based on the data stored from the mechanism positions and the containers on the yard as well as database management, automatic tracking operation and the most optimized tracking control of the mechanisms can be realized, increasing the working efficiency and ensuring safety.
- Soft Landing of Spreader onto The Container: Software intelligent deceleration technology and hardware inspection protection device are applied to adjust the time and position of deceleration dynamically. This helps decrease crush and wheel load, thus increasing service life and stability of the crane.
- Anti-wind Anchor System: Equipped with two independent sets of anchoring devices resisting horizontal force, four sets of ropes resisting overturning torque, four sets of anti-creeper or wheel clamp resisting gust, the system ensures the stability of the whole machine. Optional electric iron wedge, wheel clamp, rail clamp, rail jack and other wind proof devices are available.
- Intelligent Rectification Technology of Gantry: Deflection of bogie relative to the rail is detected in real-time as the control signal for the transducer to control motor speed. The bogie deflection can be corrected manually (or automatically) to prevent rail gnawing, thus ensuring sate operation, reducing wearing between wheel and rail, and span service life of crane.
